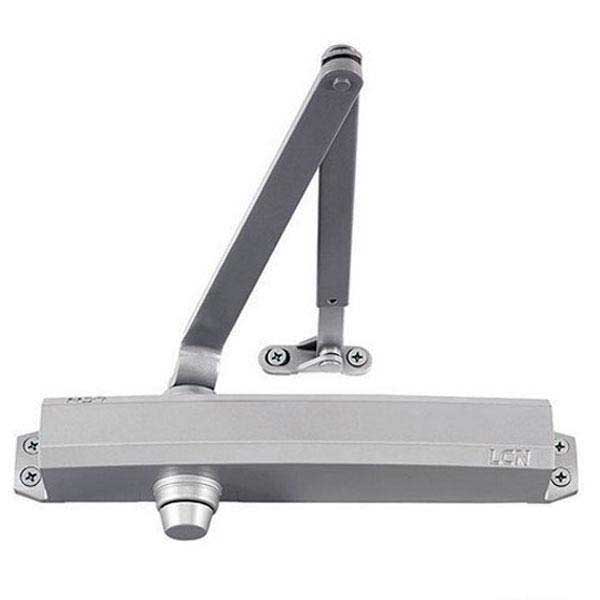

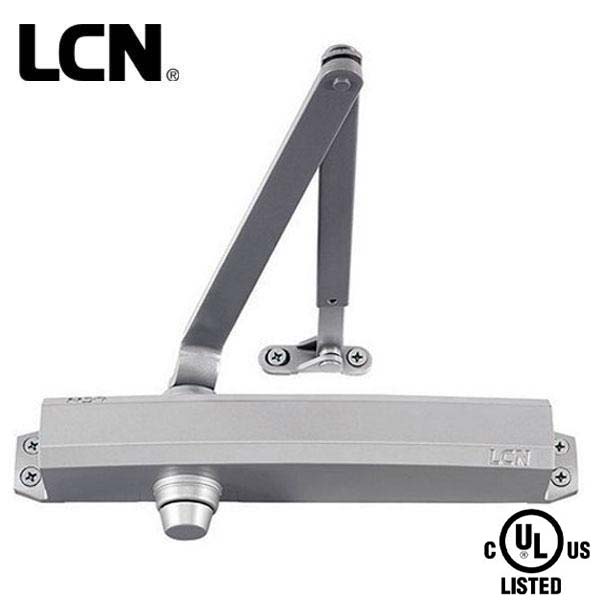

LCN - 1450 - Hydraulic Door Closer - PA Bracket/Hinge/Top Jamb - Adjustable Size 1-6 - Plastic Cover - Aluminum - Grade 1
- $189.14
-
$220.25 - $189.14
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently-used, low-abusive traffic areas. With the industry's most common hole pattern it can fit a range of applications like aftermarket replacement, aluminum storefronts, and new construction projects.
More Information Below
Specifications | |
---|---|
Body Construction | Cast aluminum body Full complement bearing 1 1⁄4" diameter piston 5⁄8" diameter single heat treated pinion journal |
Fluid | All-weather fluid |
Handing | Non-Handed |
Templating | Peel-n-stick templates - 3⁄4" x 12" mounting hole pattern |
Size | Adjustable Spring Size 1-6 |
Warranty | 25 years |
Cover | Slim line plastic, standard Full plastic and metal, optional |
Fasteners | Universal screw pack (UNIV) |
Mounting | Hinge (pull side), top jamb (push side), parallel arm (push side) |
Arms | RW/PA = Regular Arm with Parallel Arm Bracket |
Finish | Aluminum |
Butt hinges | Should not exceed 5" (127 mm) in width |
Auxiliary stop | Recommended at hold open point or where a door cannot swing 180° |
Reveal | Should not exceed 3⁄4" (19 mm) for regular armor 1⁄2" (13 mm) for Hold Open Arm |
Top rail | Less than 2 1 ⁄2" (64 mm) requires plate, 1260-18 |
Clearance | 2 3⁄8" (60 mm) behind door required for installation |
Dimensions
Downloads
Specifications
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
