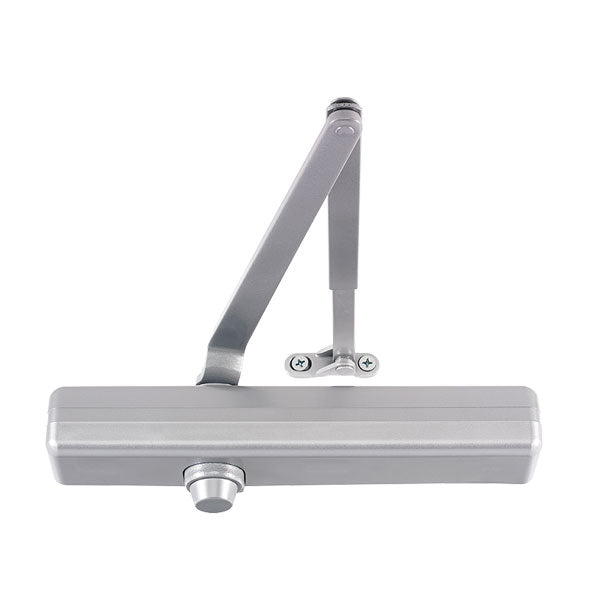

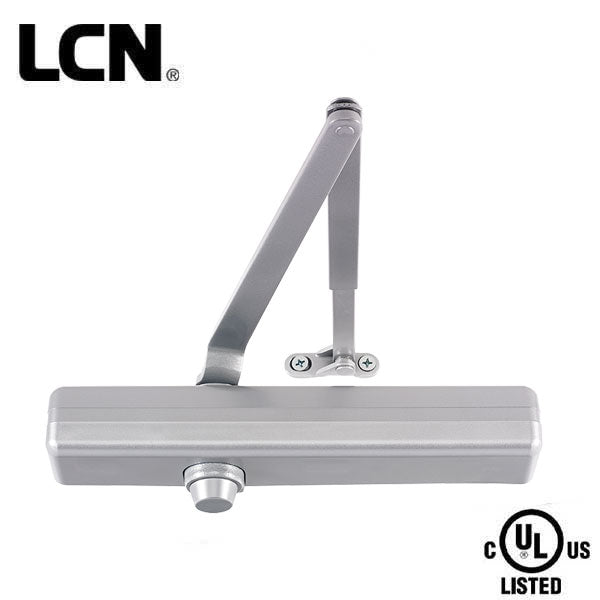

LCN - 1461 - Hydraulic Door Closer - PA Bracket/Hinge/Top Jamb - Adjustable Size 1-5 - Plastic Cover - Aluminum - Grade 1

LCN - 1461 - Hydraulic Door Closer - PA Bracket/Hinge/Top Jamb - Adjustable Size 1-5 - Plastic Cover - Aluminum - Grade 1

Available to order
SKU LCN-1461-CUSH-689 NSID 67156
$335.42$402.50On Sale You save $67.08 (17%)
Please Note: This product ships within 2 Days

The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements.

It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.

Features include a slim line plastic cover, with optional plated finish on the cover, the arm and the fasteners. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring power adjustments.

More Information Below

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details



    Specifications
    Body Construction Cast iron cylinder with full-complement bearing
    1-1/4" diameter piston
    Heat-treated steel pinion journal
    Fluid All-weather fluid
    Handing Non-Handed
    Templating Peel-n-stick templates - 3/4" x 9-1/16" mounting hole pattern
    Size Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
    Warranty 30 years
    Cover Slimline plastic cover, optional
    Fasteners Self reaming and tapping screws (SRT)
    Mounting Hinge (pull side), top jamb (push side),
    parallel arm (push side)
    Arms RW/PA = Regular Arm with Parallel Arm Bracket
    Finish Aluminum
    Butt hinges Should not exceed 5" (127 mm) in width
    Auxiliary stop Recommended at hold open point or where a door cannot swing 180°
    Reveal Should not exceed 3/4" (19 mm) for regular armor 1/2" (13 mm) for Hold Open Arm
    Top rail Less than 2-1/2" (64 mm) requires plate, 1260-18
    Clearance 2-7/8" (73 mm) behind door required for installation
