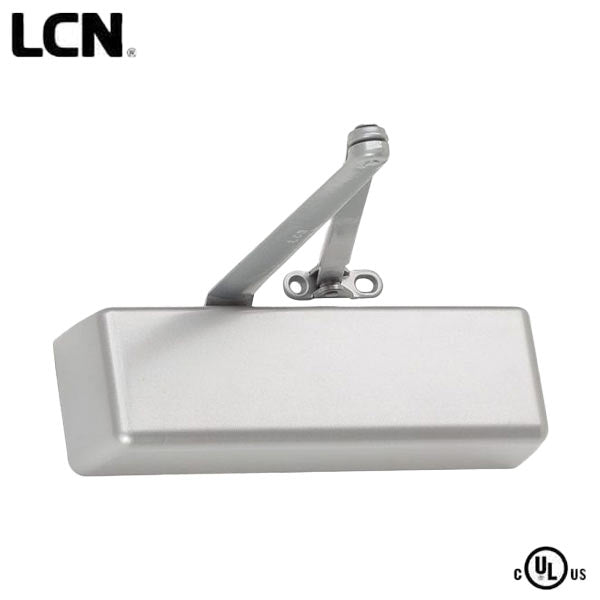

*Discontinued* LCN - 4011 - Hydraulic Door Closer - Back Check Function - Right Hand - Adjustable Size 1-5 - Aluminum - Fire Rated - Grade 1

*Discontinued* LCN - 4011 - Hydraulic Door Closer - Back Check Function - Right Hand - Adjustable Size 1-5 - Aluminum - Fire Rated - Grade 1

Discontinued
SKU LCN-4011-EDA-RH-AL NSID 31938
$328.00


The 4010 series is LCN's best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications. They are also designed specifically for unique mounting applications. The 4011 also feature the LCN'S Green Dial spring force indicator, which takes the guesswork out of adjustment.

Features:

  • Extra Duty Forged Steel Main Arm
  • Double Heat Treated Steel Pinion
  • Advanced Variable Backcheck
  • Peel-n-Stick Templates for Fast and Accurate Installations
  • Tested and certified under ANSI Standard A156.4

View full details

Details

Specifications:

Body Construction: Cast Iron Body
Usage: Heavy Duty
Spring Size: Adjustable Spring Size 1-5
Door Application: Hollow Metal or Wood
Fluid: All Weather Liquid X Fluid
Certifications: Tested and certified under ANSI Standard A156.4 – Grade-1
Fire Rating: UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms)
Fasteners: Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts
Finish: 689 Aluminum
Cover: Full Cover
Warranty: 30 Years
