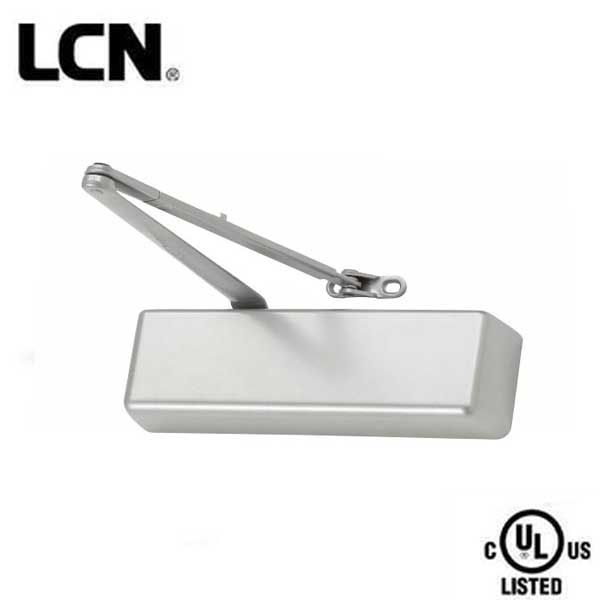

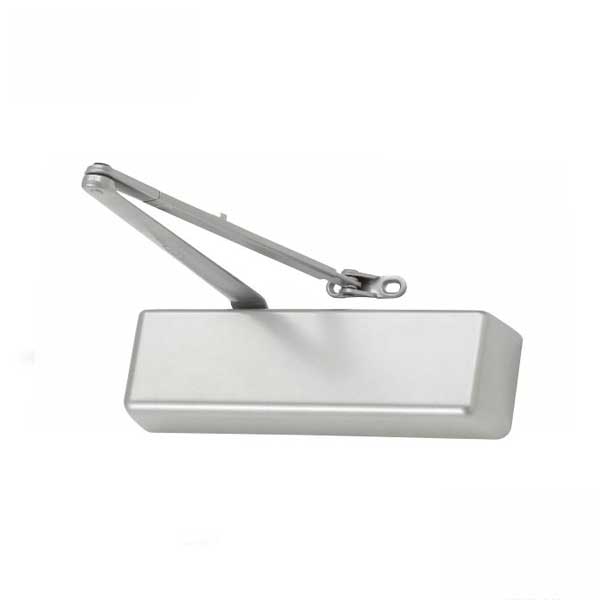

LCN - 4011 - Hydraulic Door Closer - Back Check Function - Optional Arm Functions Adjustable Size 1-5 - Aluminum - Plastic Cover - Fire Rated - Grade 1
In Stock
SKU:
LCN-4011-REG-LH-AL
NSID:
21242
23393
21241
23394
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $323.76
-
$388.51 - $323.76
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LCN-4011-XXX-XX-AL
The 4010 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
Features
- Closer available with less than 5.0 lbs. opening force on 36" door.
- Maximum opening/hold open point with standard template.
- Advanced Variable Back Check
- LCN patented Green Dial spring force indicator
- Meets ADA requirements
- UL and cUL listed for self-closing doors with regular or fusible link arms for self closing doors
- Peel-n-stick template and standard plastic cover
- Adjustable from size 1 to 5
- UL 10C 3 Hour Positive pressure
Specifications
| Cover: | Plastic Cover, standard |
| Finish: | 689 Aluminum |
| Arm: | Regular Arm |
| Templating: | Peel-n-Stick templates - 2 1⁄2" x 6" mounting hole pattern |
| Handing: | Left/Right Hand |
| Door Sizes: | Sized cylinders for interior doors to 5'0'' and exterior doors to 4'0'' Non-sized cylinder is adjustable for interior doors to 4'6'' and exterior doors to 3'6'' |
| Fasteners: | Self Reaming and Tapping Screws (SRT) |
| Size: | Adjustable 1-5 or sized 6 |
| Mounting: | Hinge (Pull side) |
| Fluid: | All weather fluid |
| Body construction: |
Cast iron body Full complement bearing 1 1⁄2" diameter piston 11⁄16" diameter double heat treated pinion journal |
| Fire Rated: | UL 10C 3 Hour Positive pressure |
| Certifications: | Grade 1, ANSI A156.4, UL 10C, BAA |
| Manufacturer's Warranty: | 30 years |
