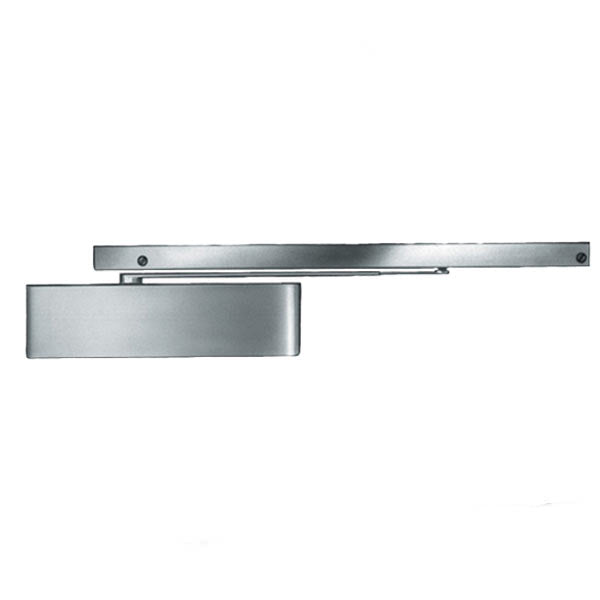

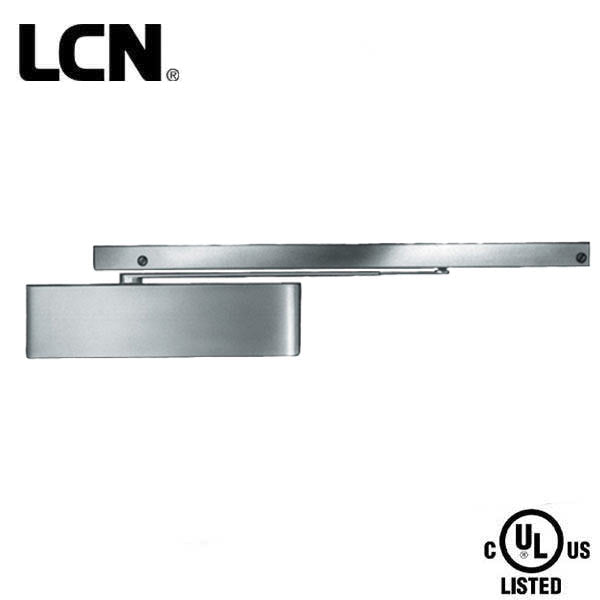

LCN - 4040SE - Standard Arm Track Door Closer - 120V - Adjustable Size 1-4 - Plastic Cover - Aluminum - Fire Rated - Grade 1
In Stock
SKU:
LCN-4040SE-STD-120VAL
NSID:
5220
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $604.77
-
$668.00 - $604.77
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The LCN 4040SE SENTRONIC Standard Arm Track Door Closer is a heavy-duty, non-handed, non-sized closer/holder designed to provide a single-point hold-open for fire and smoke barrier doors. The door is held open until the current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors.
Specifications:
| Body Construction | Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 3/4" Diameter Single Heat Treated Pinion Journal |
| Fluid | All-Weather Fluid |
| Handing | Non-Handed |
| Size | Adjustable Spring Size, up to 4 |
| Warranty | 10 year mechanical 2 year electrical |
| Cover | Clip-on plastic, standard |
| Fasteners | Wood and machine screw pack |
| Mounting | Hinge (Pull Side), Stop Face (Push Side) |
| Arms | Standard arm and SE track, standard |
| Finish | Aluminum (689) |
| Wiring | Concealed or surface, interfaces with fire alarm systems |
| Butt hinges | Should not exceed 5" (127 mm) in width |
| Auxiliary stop | Recommended at hold-open point |
| Reveal | Should not exceed 1/8" (3 mm) for standard arm |
| Top rail | Minimum 3-1/2" (89 mm) |
| Head Frame |
Requires 2" (51 mm) minimum |
| Flush Ceiling | 2" (51 mm) head frame does not require special templating |
| Door Width | 2'4" (711 mm) minimum for single door with SE 4'8" (1422 mm) minimum for paired doors with SE |
| Clearance | 2-3/8" (60 mm) behind door required for 90° installation |
| Maximum Opening | Templating allows 110° Hold-open points between 85° and 110° in approximately 3° increments |
| Electrical | These track assemblies require a single power circuit for the holding solenoid. Circuitry accepts either AC or DC input |
| Fire Rated | UL listed for smoke barrier or labeled fire doors for 3 Hours |
| Certifications | cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.15. Conforms to life safety code, NFPA 101 |
