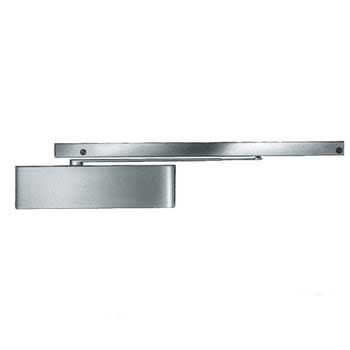

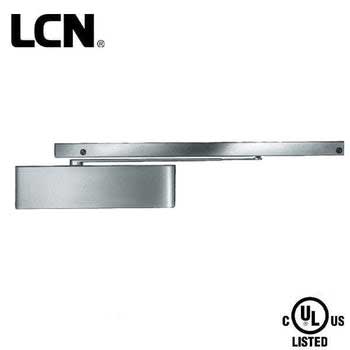

LCN - 4040SE - Standard Arm Track Door Closer - 24V - Adjustable Size 1-4 - Plastic Cover - Aluminum - Fire Rated - Grade 1

In Stock
SKU: LCN-4040SE-STD-24V-AL
NSID: 5221

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$752.70
$775.00
$752.70

The LCN 4040SE SENTRONIC Standard Arm Track Door Closer is a heavy duty, non-handed, non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors.

More Information Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications
Body Construction Cast Iron Body
Full Complement Bearing
1-1/2" Diameter Piston
3/4" Diameter Single Heat Treated
Pinion Journal
Fluid All Weather Fluid
Handing Non-Handed
Size Adjustable Spring Size, up to 4
Warranty 2 years
Cover Clip-on plastic, standard
Fasteners Wood and machine screw pack
Mounting Hinge (Pull Side), Stop Face (Push Side)
Arms Standard arm and SE track, standard
Finish Aluminum (689)
Wiring Concealed or surface, interfaces with fire
alarm systems
Butt hinges Should not exceed 5" (127 mm) in width
Auxiliary stop Recommended at hold-open point
Reveal Should not exceed 1/8" (3 mm) for standard arm
Top rail Minimum 3-1/2" (89 mm)
Head Frame
Requires 2" (51 mm) minimum
Flush Ceiling 2" (51 mm) head frame does not require special templating
Door Width 2'4" (711 mm) minimum for single door with SE
4'8" (1422 mm) minimum for paired doors with SE
Clearance 2-3/8" (60 mm) behind door required for 90° installation
Maximum Opening Templating allows 110°
Hold-open points between 85° and 110° in approximately 3° increments
Electrical These track assemblies require a single power circuit for the holding solenoid
Circuitry accepts either AC or DC input
Certifications UL listed for smoke barrier or labeled fire
doors
cUL listed for self-closing doors without hold-open
Tested and certified under ANSI Standard A156.15
Conforms to life safety code, NFPA 101
Fire Rated for 3 Hours
