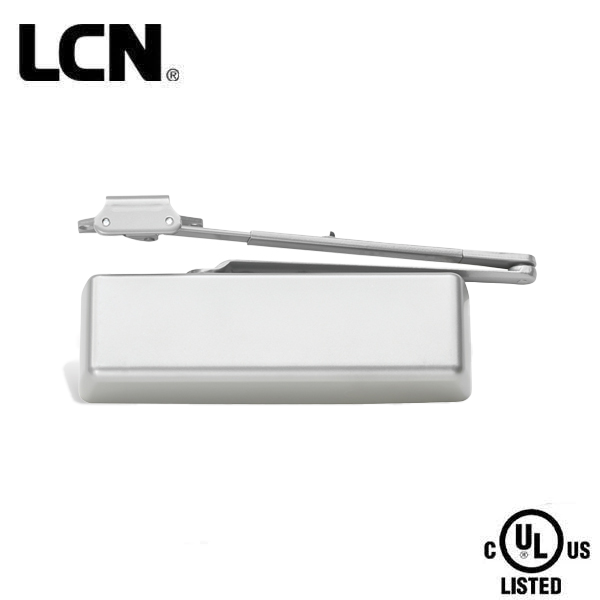

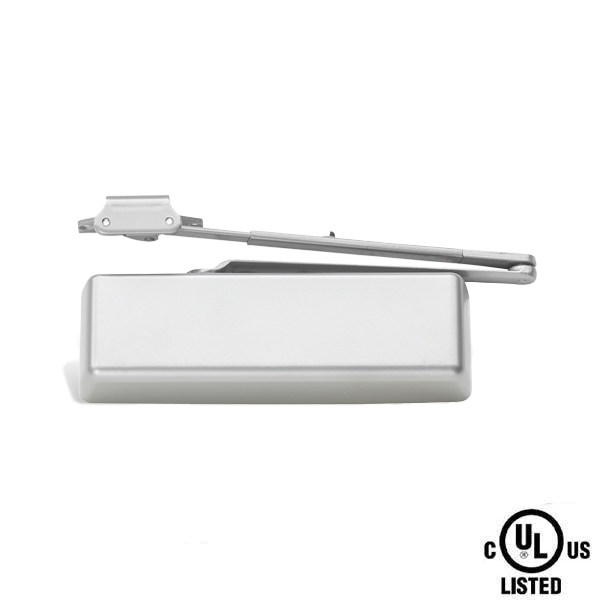

LCN - 4040XP-H AL - Hydraulic Door Closer - PA Bracket/Hinge/Top Jamb - Non-Handed - Size 1-6 - Plastic Cover - Aluminum - Grade 1
- $378.48
-
$449.99 - $378.48
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 4040XP Series is LCN’s most durable surface-mounted heavy-duty closer, designed for the most demanding high-use-and-abuse applications. It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations.
Specifications
| Body Construction | Cast Iron Body Full Complement Bearing 1 1⁄2" Diameter Piston Double Heat Treated Pinion Journal |
| Application | Hold Open Arm |
| Fluid | All-Weather Liquid X Fluid |
| Handing | Non-Handed |
| Templating | Peel-n-Stick templates - 2 1 ⁄4" x 5" mounting hole pattern |
| Closer Size | 1 to 6 |
| Size | Adjustable spring size 1-6, includes patented green dial |
| Warranty | 30 years |
| Cover | Plastic Cover (PC) |
| Fasteners | Self reaming and tapping screws (SRT) |
| Mounting | Hinge (pull side), top jamb (push side), parallel arm (push side) |
| Arms | Hold Open Arm |
| Finish | Aluminum |
| Certifications: | ANSI/BHMA A156.4 Grade 1, UL Listed, cUL Listed |
Dimensions
