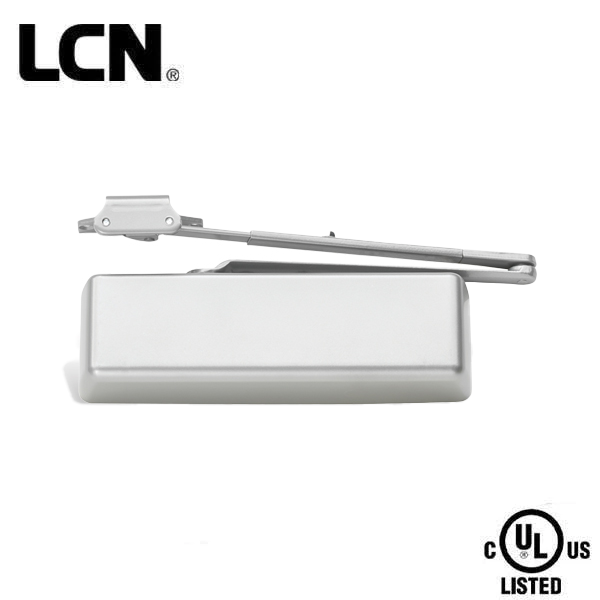

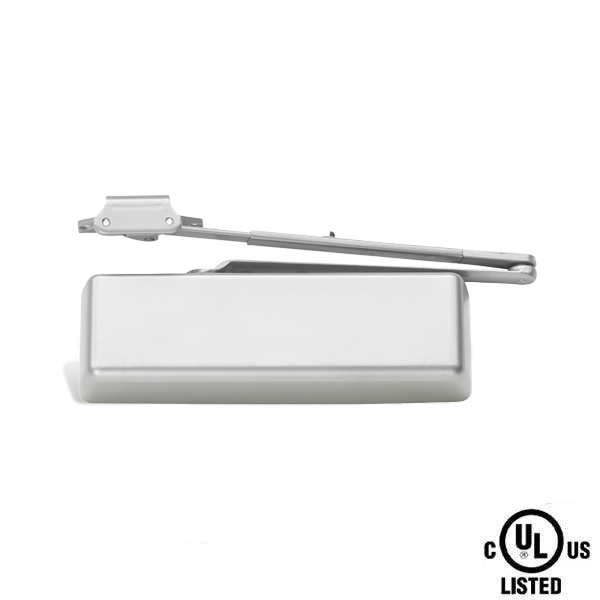

LCN - 4040XP - Hydraulic Door Closer - Regular Arm - Non-Handed - Size 1-6 - Plastic Cover - Aluminum - Grade 1
- Product SKU: LCN-4040XP-REGARM-AL
- NSID: 32816
-
LCN- 4040XP-REGARM-AL
The 4040XP Series is LCN’s most durable surface-mounted heavy-duty closer, designed for the most demanding high-use-and-abuse applications. It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations.
| Specifications | |
|---|---|
| Body Construction | Cast iron body Full complement bearing 1 1⁄2" diameter piston Double heat treated pinion journal |
| Fluid | All-weather liquid X fluid |
| Handing | Non-Handed |
| Templating | Peel-n-Stick templates - 2 1 ⁄4" x 5" mounting hole pattern |
| Size | Adjustable spring size 1-6, includes patented green dial |
| Warranty | 30 years |
| Cover | Plastic Cover (PC), standard |
| Fasteners | Self reaming and tapping screws (SRT) |
| Mounting | Hinge (pull side), top jamb (push side), parallel arm (push side) |
| Arms | Regular arm |
| Finish | Aluminum |
| Certifications: | ANSI/BHMA A156.4 Grade 1, UL Listed, cUL Listed |
Dimensions
Downloads:
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
LCN- 4040XP-REGARM-AL
The 4040XP Series is LCN’s most durable surface-mounted heavy-duty closer, designed for the most demanding high-use-and-abuse applications. It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations.
| Specifications | |
|---|---|
| Body Construction | Cast iron body Full complement bearing 1 1⁄2" diameter piston Double heat treated pinion journal |
| Fluid | All-weather liquid X fluid |
| Handing | Non-Handed |
| Templating | Peel-n-Stick templates - 2 1 ⁄4" x 5" mounting hole pattern |
| Size | Adjustable spring size 1-6, includes patented green dial |
| Warranty | 30 years |
| Cover | Plastic Cover (PC), standard |
| Fasteners | Self reaming and tapping screws (SRT) |
| Mounting | Hinge (pull side), top jamb (push side), parallel arm (push side) |
| Arms | Regular arm |
| Finish | Aluminum |
| Certifications: | ANSI/BHMA A156.4 Grade 1, UL Listed, cUL Listed |
Dimensions
Downloads:
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
