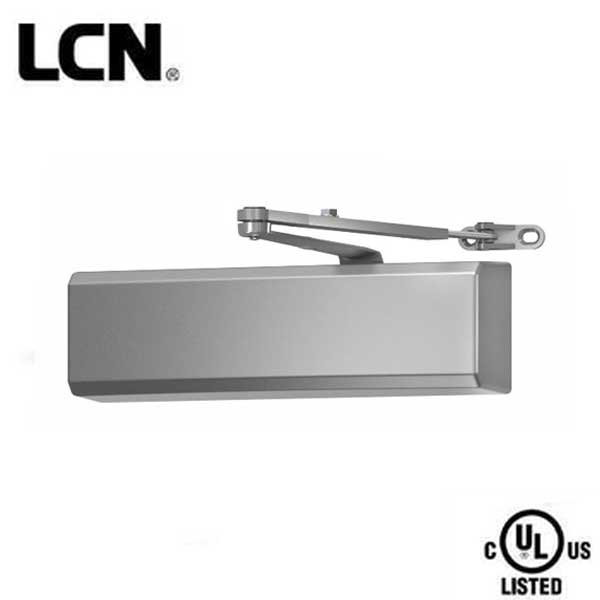

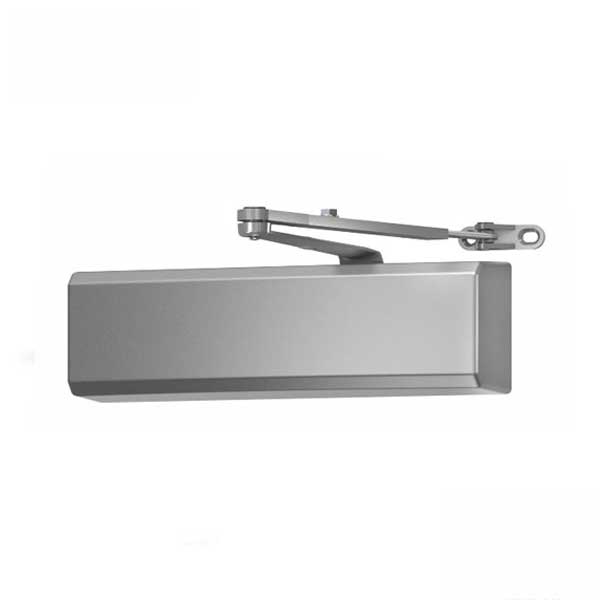

*Discontinued* LCN - 4050A - Hydraulic Door Closer - Back Check Function - Regular Arm - Adjustable Size 1-6 - Plastic Cover - Fire Rated - Grade 1

*Discontinued* LCN - 4050A - Hydraulic Door Closer - Back Check Function - Regular Arm - Adjustable Size 1-6 - Plastic Cover - Fire Rated - Grade 1

Discontinued
SKU LCN-4050A-RWAP-689 NSID 29885
$346.75

The 4050A Series cast aluminum closer is engineered for durability, and built tough to excel in the harsh environments of high-frequency and highly abusive traffic areas. Featuring the most common commercial footprint, it is ideal for commercial building applications that demand a combination of quality, reliability and value.

Features

  • Closer available with less than 5.0 lbs. opening force on 36" door.
  • Maximum opening/hold open point with standard template.
  • Advanced Variable Back Check.
  • Mounts pull side or top jamb with shallow reveal.
  • Non-handed.
View full details

Details


Specifications

Cover Plastic Cover
Finish Aluminum
Arms Regular Arm
Templating 2 3⁄8" x 6 3⁄4" mounting hole pattern
Handing Non-handed
Fasteners Self reaming and tapping screws (SRT)
Size Adjustable Spring Size, sizes 1-6 (Includes patented Green Dial)
Mounting Hinge (pull side), top jamb (push side)
Accessibility
 Available with less than 5.0 lbs. opening force on 36" door
Fluid All weather liquid X fluid
Body construction Cast iron body
Full complement bearing
1 1⁄2" diameter piston double heat treated pinion journal
Fire Rated UL 10C 3 Hour Positive pressure
Certifications Grade 1, ANSI, UL 10C, BAA
Manufacturer's Warranty 30 Years
