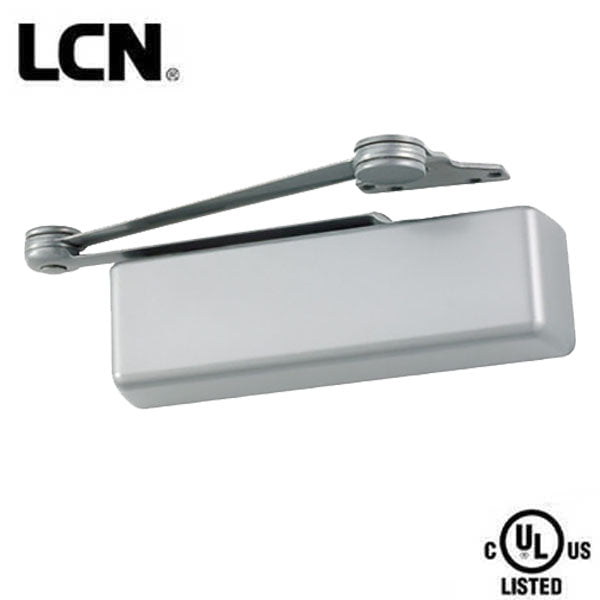

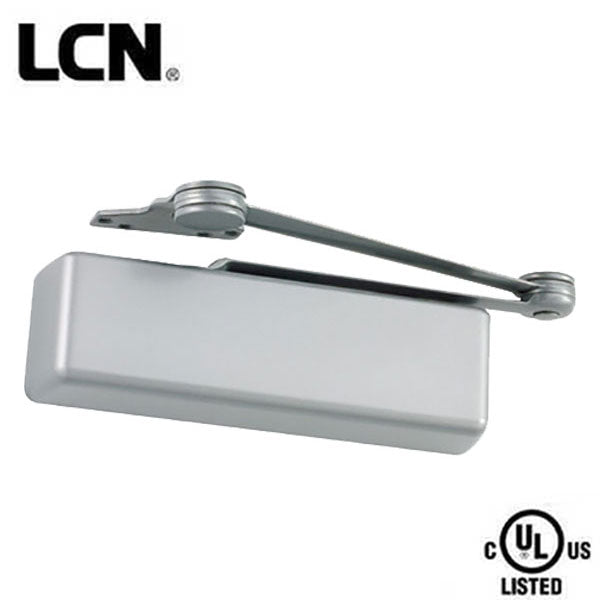

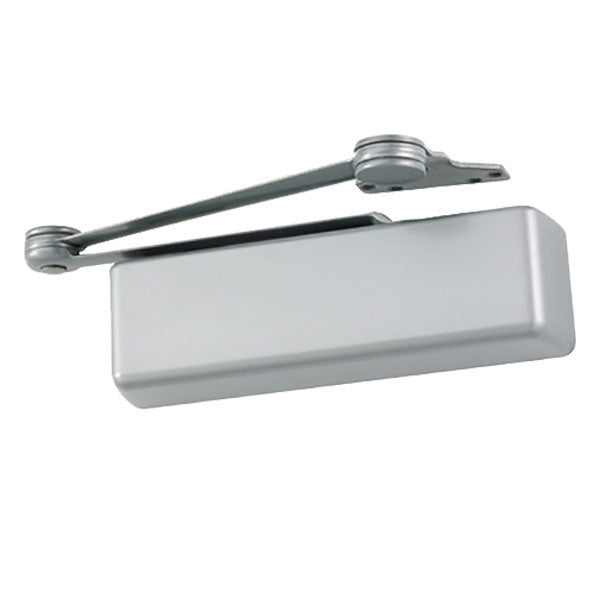

LCN - 4111CUSH - Hydraulic Door Closer - Delayed Action Function - PA Bracket - Adjustable Size 1-6 - Optional Handing - Aluminum - Fire Rated - Grade 1
In Stock
SKU:
LCN-4111-CUSH-DEL-AL-RH
NSID:
45466
29880
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $416.59
-
$499.91 - $416.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations, and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring power indicator, which takes the guesswork out of adjustment.
Specification
- Cast iron cylinder with full-complement bearing
- 1-1/2” diameter piston
- Double heat-treated steel pinion journal
- All-weather fluid
- LCN patented Green Dial spring power indicator
- 30-year warranty
- Installation
- Peel-n-stick template and standard plastic cover
- Adjustable spring sizes 1-5 or 6 only
- Sized cylinders for interior doors to 5'0'' and exterior doors to 4'0''
- Non-sized cylinder is adjustable for interior doors to 4'6'' and exterior doors to 3'6''
- Meets ADA requirements
- UL and cUL listed for self-closing doors with regular or fusible link arms for self-closing doors
- Tested and certified under ANSI/BHMA A156.4 Grade 1
Specifications
| Finish | Aluminum |
| Arms | Hold Open Cush-n-Stop Arm |
| Templating | Peel-n-Stick templates - 2 1/2" x 6" mounting hole pattern |
| Handing | Left Hand and Right Hand |
| Fasteners | Self reaming and tapping screws (SRT) |
| Size | Adjustable Spring Size, sizes 1-6 (Includes patented Green Dial) |
| Mounting | Parallel arm (push side) |
| Accessibility |
Available with less than 5.0 lbs. opening force on 36" door |
| Fluid | All weather fluid |
| Body construction | Cast iron body Full complement bearing 1 1⁄2" diameter piston Double heat treated pinion journal |
| Fire Rated | UL 10C 3 Hour Positive pressure |
| Certifications | Grade 1, ANSI, UL 10C, BAA |
| Manufacturer's Warranty | 30 Years |
