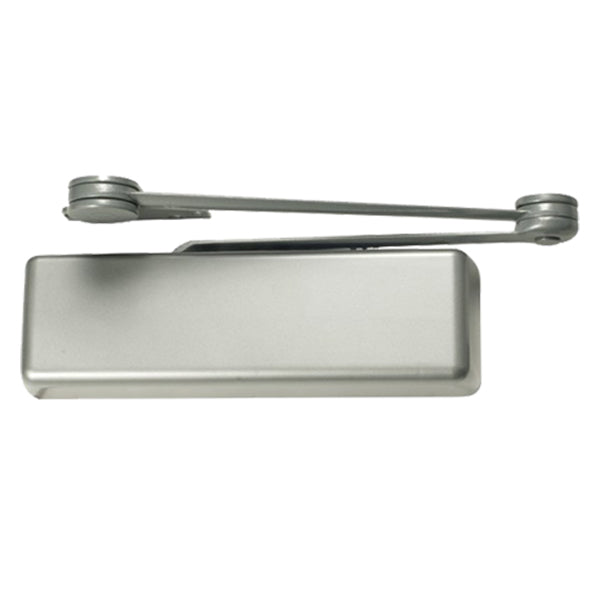

LCN - 4111EDA - Hydraulic Door Closer - Optional Handing - Back Check Function - PA Bracket - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1 - UHS Hardware
LCN - 4111EDA - Hydraulic Door Closer - Optional Handing - Back Check Function - PA Bracket - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1 - UHS Hardware
LCN - 4111EDA - Hydraulic Door Closer - Optional Handing - Back Check Function - PA Bracket - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1 - UHS Hardware

LCN - 4111EDA - Hydraulic Door Closer With Thick Hub Shoe - LH - Back Check Function - PA Bracket - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1

In Stock
SKU: LCN-4111-EDA-4110-18-MC-689
NSID: 51746

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$451.12
$541.34
$451.12

The LCN® 4111EDA is our most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4111EDA sets the standard for reliability, longevity and value with a robust design and extraordinary performance testing. LCN goes beyond ANSI and BHMA industry standards with abuse-cycle and temperature testing to mimic what door closers encounter in high-abuse environments. We built the 4111EDA from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger and delivers remarkable value in a variety of applications.

Features

  • Closer available with less than 5.0 lbs. opening force on 36" door.
  • Maximum opening/hold open point with standard template.
  • Advanced Variable Back Check.
  • Extra Duty Arm, Includes PA shoe
  • Optional Handing

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Cover Full Metal Cover
Finish Aluminum
Arms Extra Duty Arm
Templating Peel-n-Stick templates - 2 1/2" x 6" mounting hole pattern
Handing Left Hand
Fasteners Self reaming and tapping screws (SRT)
Size Adjustable Spring Size, sizes 1-5 (Includes patented Green Dial)
Mounting Parallel arm (push side)
Accessibility
Available with less than 5.0 lbs. opening force on 36" door
Fluid All weather fluid
Body construction Cast iron body
Full complement bearing
1 1⁄2" diameter piston
Double heat treated pinion journal
Fire Rated UL 10C 3 Hour Positive pressure
Certifications Grade 1, ANSI, UL 10C, BAA
Manufacturer's Warranty 30 Years
