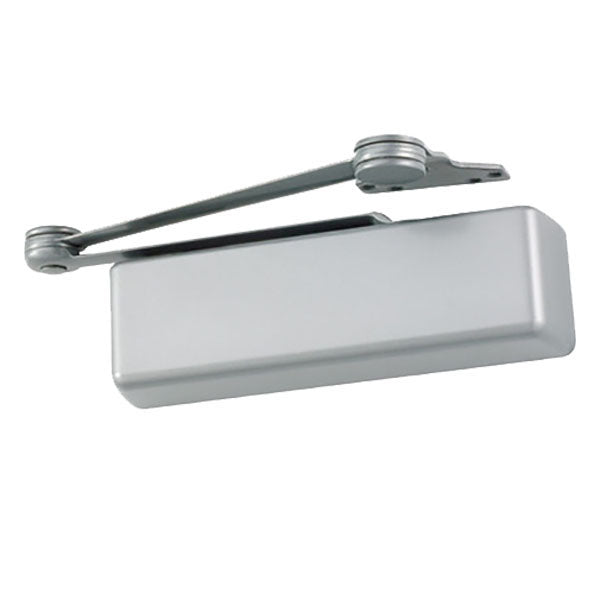

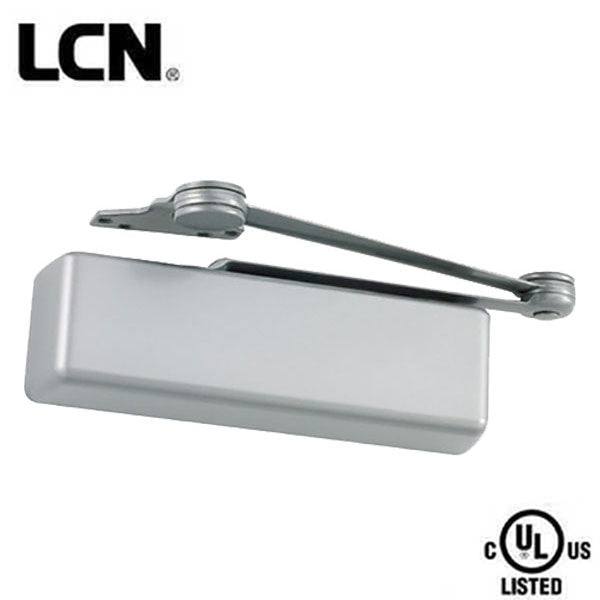

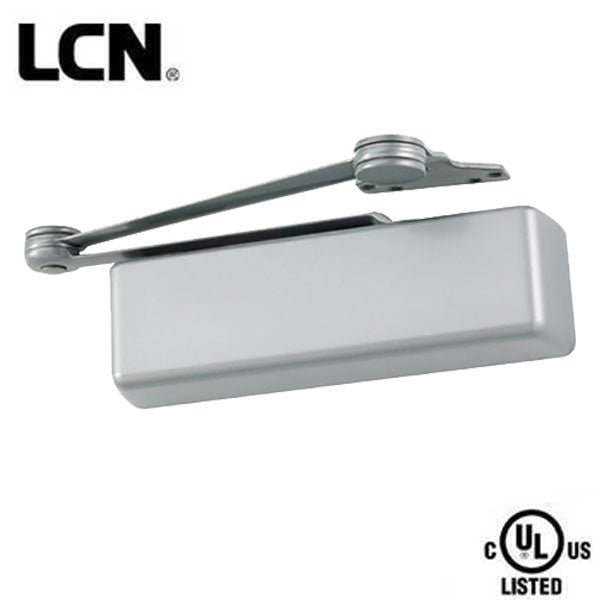

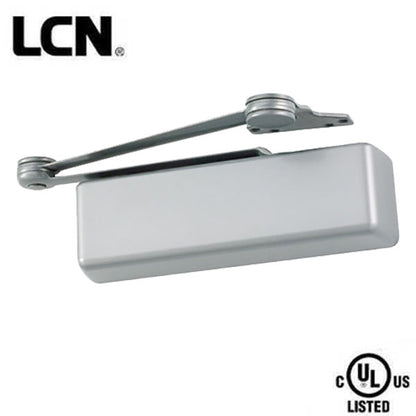

LCN - 4111SHCUSH - Hydraulic Door Closer - Optional Handing - Back Check Function - PA Bracket - Adjustable Size 1-6 - Metal Cover - Aluminum - Fire Rated - Grade 1
- Product SKU: LCN-4111-SHCUSH-MC-RHR
- NSID:
-
LCN-4111-SHCUSH -MC-LHR
The LCN® 4111SHCUSH is our most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4111SHCUSH sets the standard for reliability, longevity and value with a robust design and extraordinary performance testing. LCN goes beyond ANSI and BHMA industry standards with abuse-cycle and temperature testing to mimic what door closers encounter in high-abuse environments. We built the 4111SHCUSH from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger and delivers remarkable value in a variety of applications.
Features
- Closer available with less than 5.0 lbs. opening force on 36" door.
- Maximum opening/hold open point with standard template.
- Advanced Variable Back Check.
- Extra Duty Arm, Includes PA shoe
- Provides hold open function with templated stop/hold open points
- Handle controls hold open function
- Optional Handing
Specifications
| Cover | Metal Cover |
| Finish | Aluminum |
| Arms | Hold Open Cush-n-Stop Arm |
| Templating | Peel-n-Stick templates - 2 1/2" x 6" mounting hole pattern |
| Handing | Left Hand and Right Hand |
| Fasteners | Self reaming and tapping screws (SRT) |
| Size | Adjustable Spring Size, sizes 1-6 (Includes patented Green Dial) |
| Mounting | Parallel arm (push side) |
| Accessibility |
Available with less than 5.0 lbs. opening force on 36" door |
| Fluid | All weather fluid |
| Body construction | Cast iron body Full complement bearing 1 1⁄2" diameter piston Double heat treated pinion journal |
| Fire Rated | UL 10C 3 Hour Positive pressure |
| Certifications | Grade 1, ANSI, UL 10C, BAA |
| Manufacturer's Warranty | 30 Years |
Downloads
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
