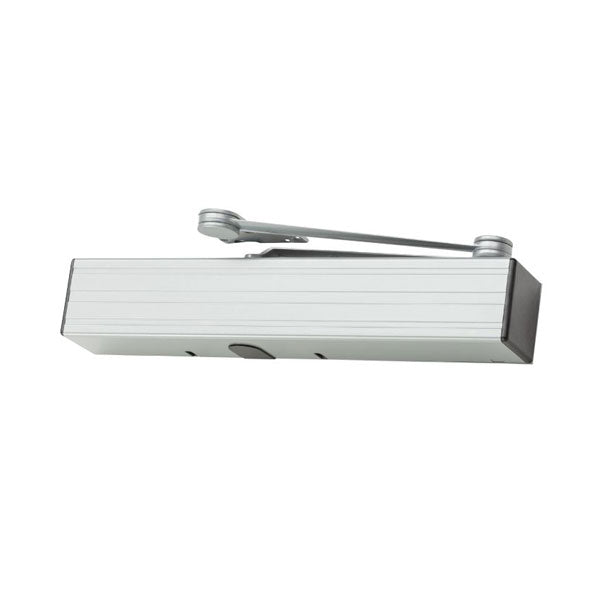

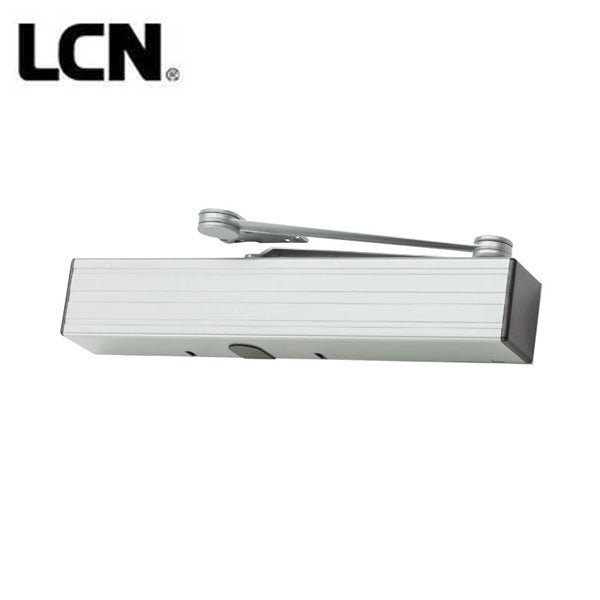

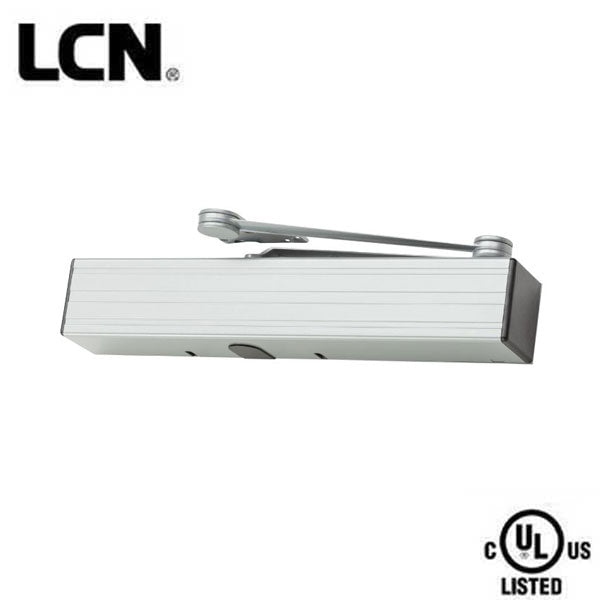

LCN - 4642 - Electrohydraulic Auto Equalizer Door Operator - Back Check Function - Regular Arm Function - 12VDC/24VDC - Adjustable Size 2-5 - Metal Cover - Aluminum - Fire Rated - Grade 1
Available to Order
SKU:
LCN-4642-REGARM-AL
NSID:
31959
- $3,960.00
-
$4,752.00 - $3,960.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 4640 auto equalizer is LCN’s smart and reliable electrically powered low-energy automatic operator. It provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally required automatic opening.
Features
- Exceeds proposed ANSI cycle test standard of 300,000 full load automatic operating cycles
- Power operation plus full door control
- For all applications, single or multi-door projects
- Opening time to back check no faster than 3 seconds
- Opening time 4 seconds or more to fully open
- Must remain fully open for at least 5 seconds
- Closing time from 90° to 10° no faster than 3 seconds
- Less than 15 pounds-force to stop door’s motion
- Kinetic energy must not exceed 1.25 lbf-ft
- In event of failure; less than 15 lbf. to release latch, less than 30 lbf. to put door in motion, less than 15 lbf. to fully open door systems
Specifications
| Cover | Metal Cover |
| Finish | 689 - Aluminum |
| Arms | Regular Arm |
| Handing | Non-Handed |
| Fasteners | Wood and Machine Screws |
| Size | Adjustable spring size 2-5 |
| Mounting | Top jamb (push side) |
| Accessibility |
Available with less than 5.0 lbs. opening force on 36" door |
| Fluid | Top jamb (push side) |
| Power Supply | 12V DC and 24V DC outputs |
| Body construction | Cast iron body |
| Fire Rated | UL 10C |
| Certifications | Grade 1, ANSI A117.1, A156.19, UL 10C, ADA,100 Hour Salt Spray, BAA |
| Manufacturer's Warranty | 2 Years |
Downloads
-
Installation Guide
