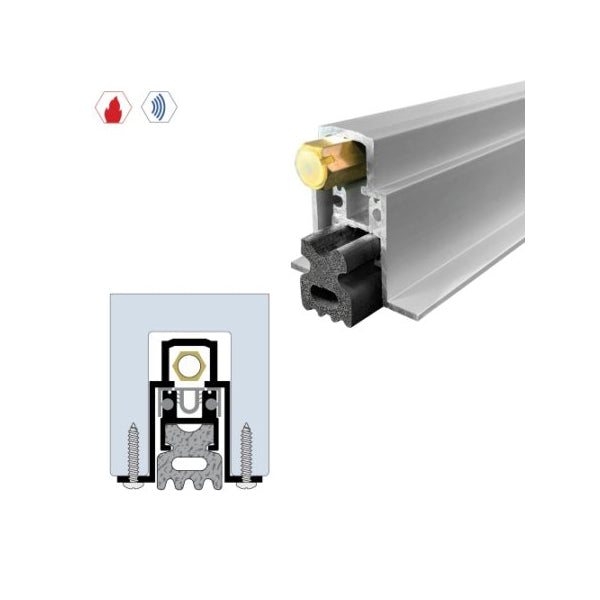

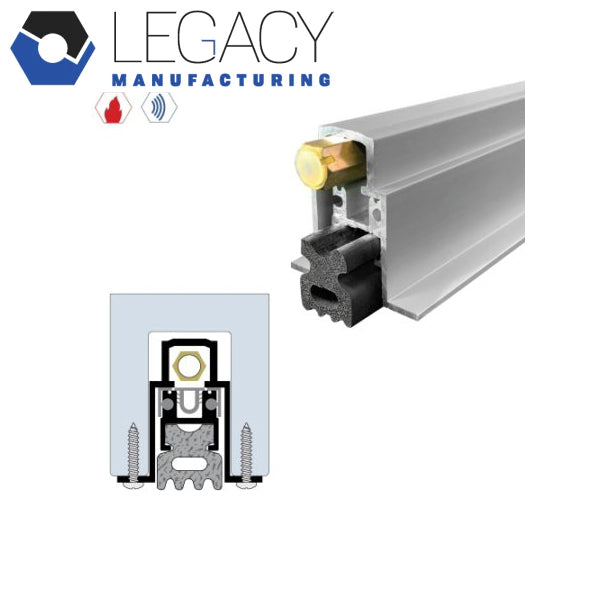

*Discontinued* Legacy Manufacturing - 7063 - Concealed Automatic Door Bottom - 1-9/16" x 1-5/8" - Clear Anodized Aluminum - Optional Length

FINISHES

• CA – Clear Anodized

OPTIONS

• EA – Electrical Actuator
• FL – Fire Label
• LS – Light Spring
• PULL – Pull
• PV – Pivot Doors
• SF – Security Fasteners
• SL – Sliding Doors
• TD – Top Door Installation
• MB-EC – Matte Black End Cap

FEATURES

• Can be made any size from 12" to 144".
• Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
• 5 million cycles tested.

MATERIALS / SPECIFICATIONS

• Solid Rubber Extrusion is Black.
• Aluminum is Clear Anodized.
• Brass Hex Nut.
• Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
• Self-leveling door seal up to maximum 1" drop.
• Replacement closed cell sponge neoprene – Part #4363SPR
• Unit supplied standard with 1 pair of end caps – Part #4063EC-AP.

Downloads:

• Cut Sheet
• Installation Sheet
