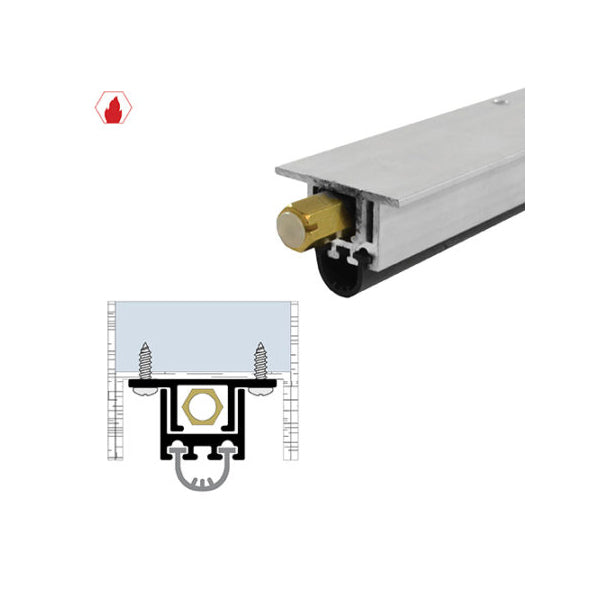

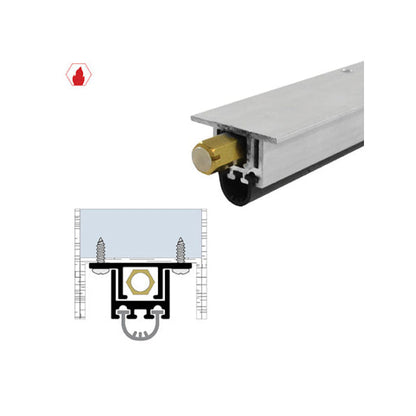

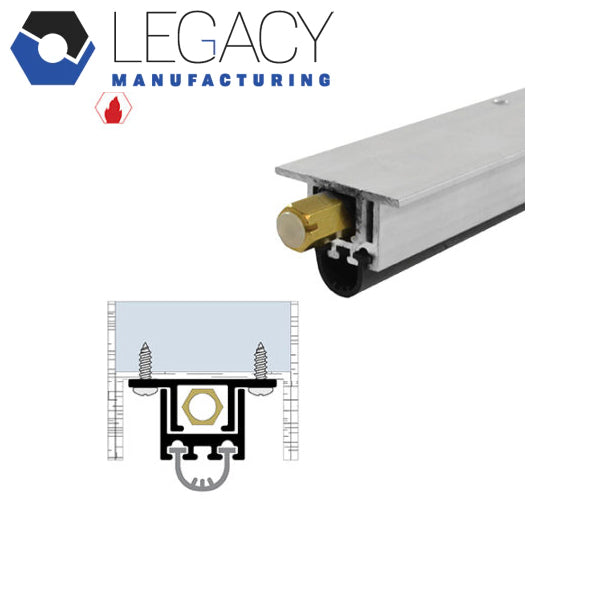

*Discontinued* Legacy Manufacturing - 71553 - Concealed Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length

FINISHES

• MA – Mill Aluminum

OPTIONS

• EA – Electrical Actuator
• FL – Fire Label
• LS – Light Spring
• PV – Pivot Doors
• SF – Security Fasteners
• SL – Sliding Doors
• TD – Top Door Installation

FEATURES

• Can be made any size from 12" to 144".
• Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
• 5 million cycles tested.

MATERIALS / SPECIFICATIONS

• Solid Rubber Extrusion is Black
• Brass Hex Nut
• For use on 1 3/4" and larger Hollow Metal doors
• Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
• Self-leveling door seal up to maximum 1/2" drop.
• Replacement neoprene – Part #434N
• No end caps provided
