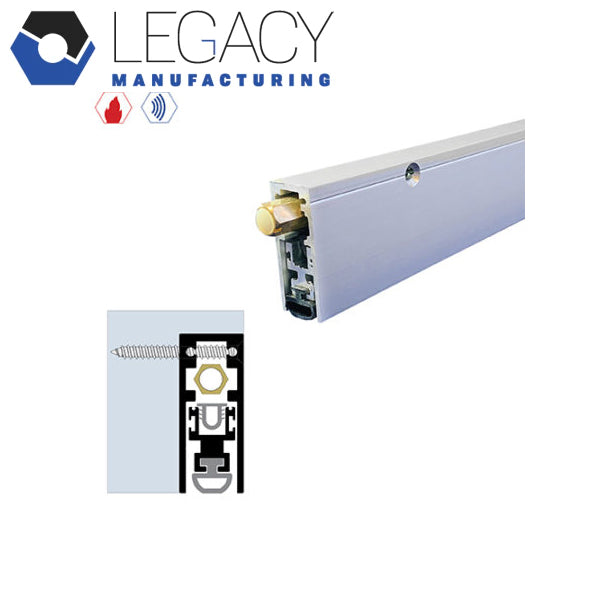

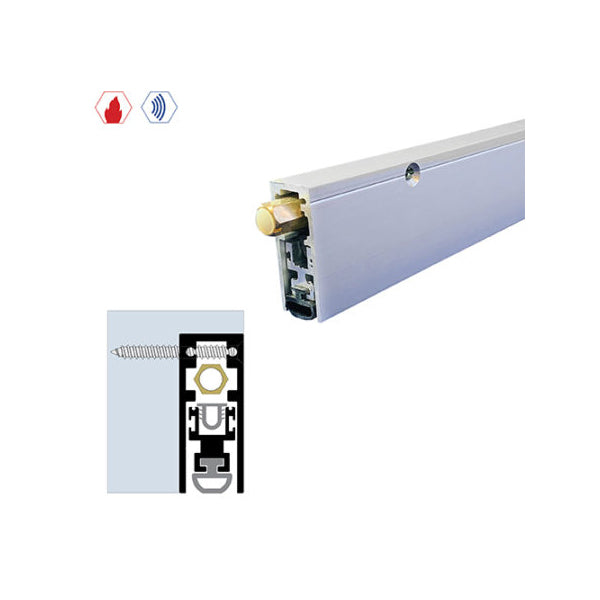

*Discontinued* Legacy Manufacturing - 7253 - Semi-Mortised Automatic Door Bottom - 11/16" x 1-13/16" - Clear Anodized Aluminum - Optional Length
Out of Stock
SKU:
LGY-7253CA-18
NSID:
- $112.94
-
- $112.94
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
COMPETITOR EQUIVALENT
| LEGACY | NGP | PEMKO | ZERO |
|---|---|---|---|
| 7253 | 222N | 4131ASL | 352AA |
- $112.94
-
- $112.94
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFINISHES
- CA – Clear Anodized
- DB – Dark Bronze Anodized
- MB – Matte Black Powder Coat
- WP – White Powder Coat
OPTIONS
- AIR – Air Flow
- FL – Fire Label
- LL – Lead Lined
- LS – Light Spring
- SF – Security Fasteners
- PULL – Pull
- PV – Pivot Doors
- EA – Electrical Actuator
- SL – Sliding Doors
- TD – Top Door Installation
- MB-EC – Matte Black End Cap
FEATURES
- Can be made any size from 12" to 144"
- Designed to drop like a scissor (hinge side first then self-leveling to compensate for uneven floors)
- 5 million cycles tested
MATERIALS / SPECIFICATIONS
- Solid Rubber Extrusion is Black
- Clear Anodized Aluminum
- Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
- Brass Hex Nut
- Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
- Self-leveling door seal up to maximum 1" drop.
- Replacement neoprene – Part #4053N or optional Part #4441N
- Unit supplied standard with 1 pair of end caps – Part #4153EC-AP.
