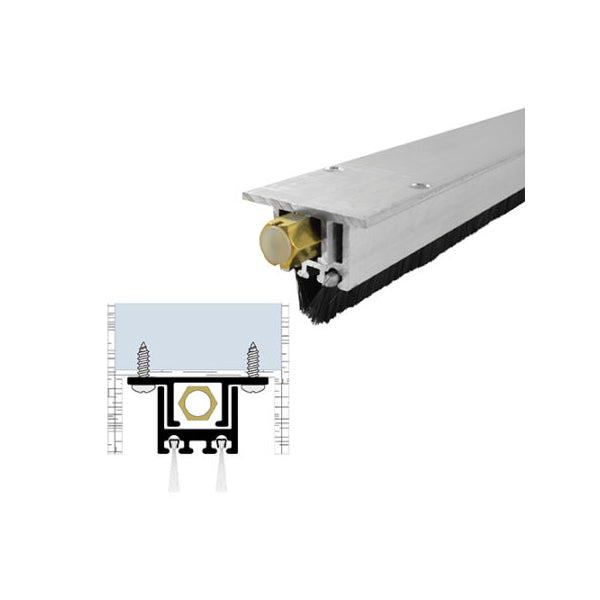

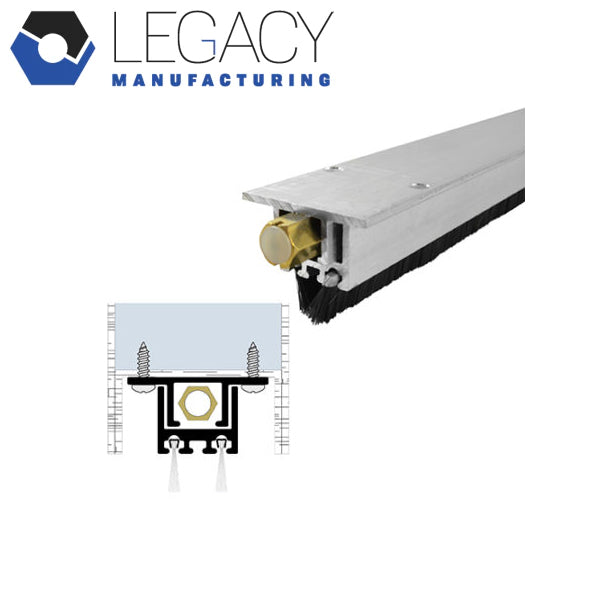

*Discontinued* Legacy Manufacturing - 72553 - Concealed Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length
Out of Stock
SKU:
LGY-72553MA-18
NSID:
- $93.70
-
- $93.70
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
COMPETITOR EQUIVALENT
| LEGACY | NGP | PEMKO | ZERO |
|---|---|---|---|
| 72553 | – | – | 3552A |
- $93.70
-
- $93.70
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFINISHES
- MA – Mill Aluminum
options
- EA – Electrical Actuator
- FL – Fire Label
- LS – Light Spring
- LIG – Ligature Resistant
- PV – Pivot Doors
- SF – Security Fasteners
- SL – Sliding Doors
- TD – Top Door Installation
FEATURES
- Can be made any size from 12" to 144".
- Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
- 5 million cycles tested.
MATERIALS / SPECIFICATIONS
- Solid Rubber Extrusion is Black.
- Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
- Brass Hex Nut
- For use on 1-3/4" and larger Hollow Metal doors
- Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
- Self-leveling door seal up to maximum 1/2" drop.
- Replacement Nylon Brush – Part #4075NB
- No end caps provided
