Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader
Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader
Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader
Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader
Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader
Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader
Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader

Lockey - EC783 - Electronic Cabinet Lock - w/ RFID PROX Reader

Availability: Available
Wishlist
  • Product SKU: LK-EC783-JB
  • NSID:
  • LK-EC783

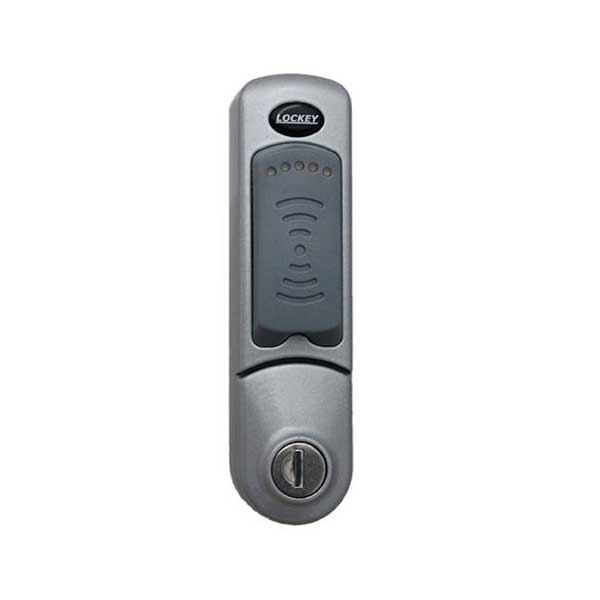

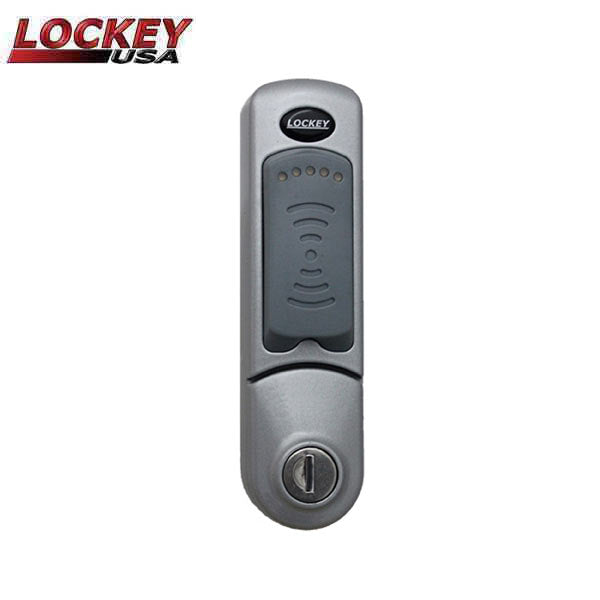

    This is a Lockey EC783 RFID Electronic Cabinet Lock.

    Features

    • Public and Private user modes
    • Key override
    • Up to 80,000 cycles per pair of AA batteries
    • Battery condition indicator
    • Audible actuation (can be turned on/off)
    • Each lock can hold up to 30 user cards

    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

DIMENSIONS 136mm (5 3/8″) L x Width: 37mm (1 1/2″) W x 30mm (1 3/16”) D
FINISHES AVAILABLE Black (Jet Black), Silver (Satin Chrome)
DIRECTIONS AVAILABLE Vertical
MOUNTING HOLE SHAPE
2 or 3 point mounting
SPINDLE LENGTH
20mm standard
POWER
2 x AA Battery (Alkaline)
OPERATIONS
Up to 80,000 cycles per pair of AA batteries
LOW BATTERY
LED lights with battery condition indicator
MATERIAL
Zinc diecast
STANDARD CAM CAPABILITY 1/4” to 1 1/2”
KEYS INCLUDED 2
APPLICATION
For internal use
WARRANTY 3 Year Electronic

Programming Options

  • Change master card
  • Add user card
  • Delete all user cards
  • Delete single user card (with user card)
  • Delete single user card (without user card)
  • Set private mode & public mode
  • Set audio
  • Auto unlock
  • Set read speed

Compatible With (Sold Separately)

RFID Cards
EC Series Key Blanks
EC Series Extension Kit
Numbered Trim Plate

Downloads

Installation Instructions
Programming Instructions
Spec Sheet
