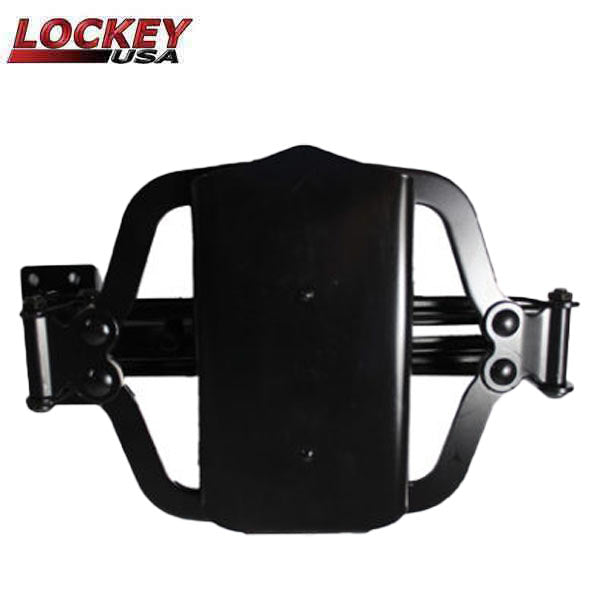

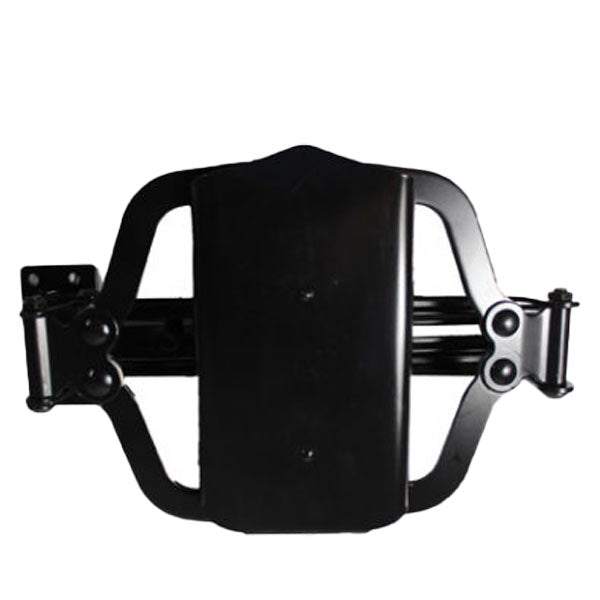

Lockey - TB100 - Turtleback Gate Closer - Black (50-125 lbs)

Lockey - TB100 - Turtleback Gate Closer - Black (50-125 lbs)

In stock
SKU LK-TB100 NSID 14988
$65.45$74.62On Sale You save $9.17 (12%)
Get it shipped Today! Order within:

TB100

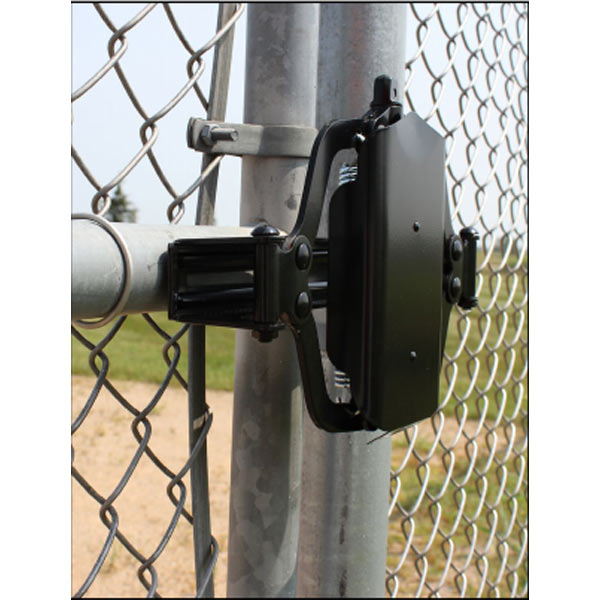

The LockeyUSA Turtle Back TB100 Hydraulic Gate closer must mount on the hinge side/pull side of the gate in order to push the gate closed. The TB100 works best if the gate has in-line/flush hinges flush with the gate post with 1″ or less gap.

Features

  • Gently closes both small and large gates up to 125lbs.
  • Pushes gate closed
  • Adjustable closing speed
  • Can be installed on top, bottom or middle of gate
  • Recommended for pool, garden and barrier gates
  • Can be used on lightweight (non fire-rated) doors
  • Works best on gates with in-line/flush hinges
  • To retain product warranty & restrict gate opening angle, a gate stop must be installed
  • Compatible with GS90 & GS-LINX Gate Stops


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

    Specifications

    Dimensions: 7 1/2" L x 13"W x 2 1/2" D
    Mounting Bracket Dimensions:  3 1/4" x 1 3/4"
    Max Gate Weight: 125lbs.
    Max Gate Width: 54"
    Max Opening Angle: 90 degrees
    Min. Operating Temp. 10 degrees
    Max Operating Temp: 110 degrees
    Gate Material: Vinyl, Wood, Steel, Chain-Link
    Closing/Latching Method: Hydraulic
    Material: Steel
    Finish Powder-Coated Black
    Hinge-Arrangements: In-line/flush hinges
    Opening Pressure: Dependent on gate size



    Downloads

    Instruction Guide
    Spec Sheet
