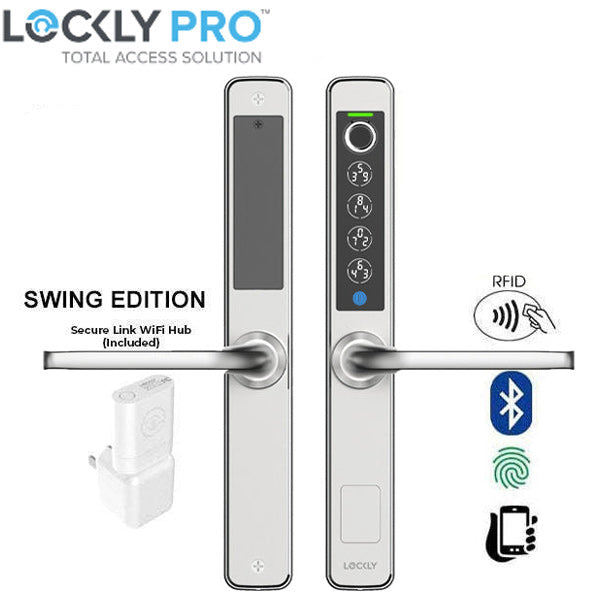

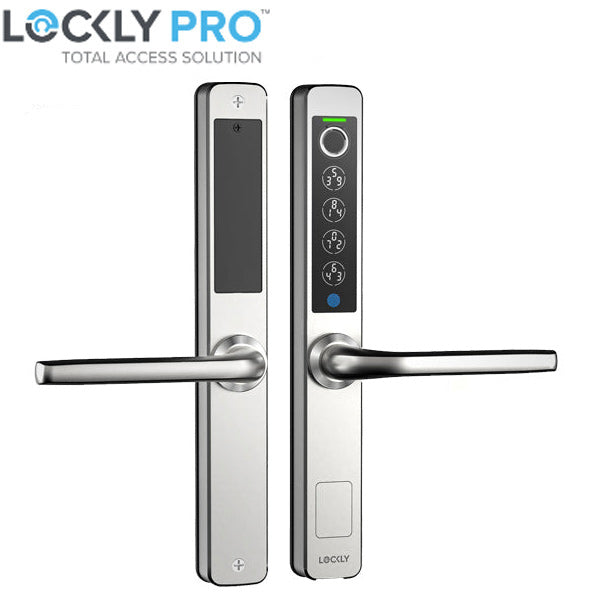

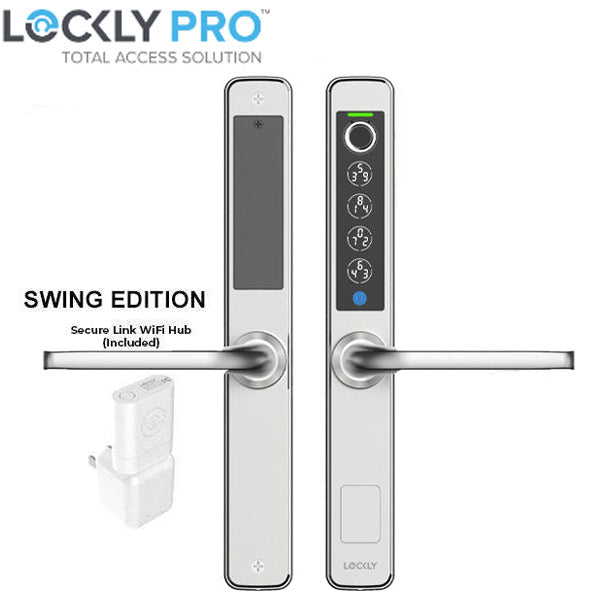

Lockly Guard -ATHENA 228SW- Narrow Stile Mortise Lever Set- Swing Edition - Biometric Fingerprint - RFID - Keypad- Wi-Fi-Bluetooth App Controlled - Optional Backset- Stainless Steel
In Stock
SKU:
LCK-PGD228WSWSS-118
NSID:
31963
31964
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $619.99
-
$743.99 - $619.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

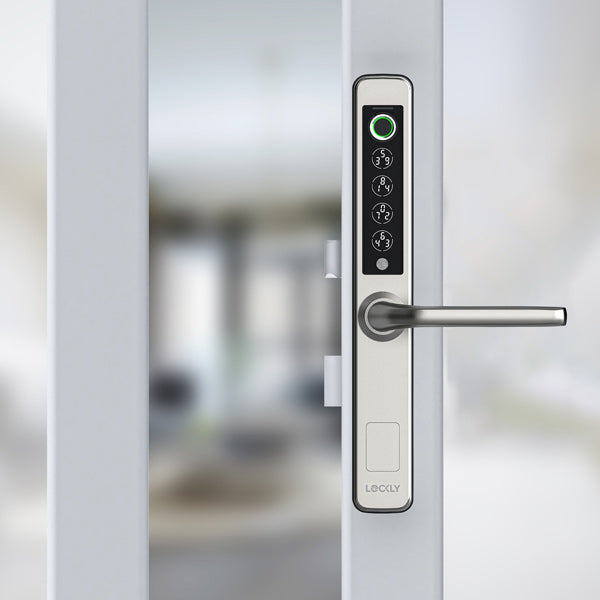

Lockly Guard™ Athena 228SW Swing Edition brings security and control to the world of thin metal or wooden framed glass doors. Athena boasts all the best-in-class features such as a hack-proof PIN Genie® digital keypad, 3D Biometric fingerprint access, voice control with Hey Google and 24/7 lock control and monitoring from anywhere in the world through Lockly app. Its forward-thinking design assures that any living or office space is complemented with safety and elegance.
Features:

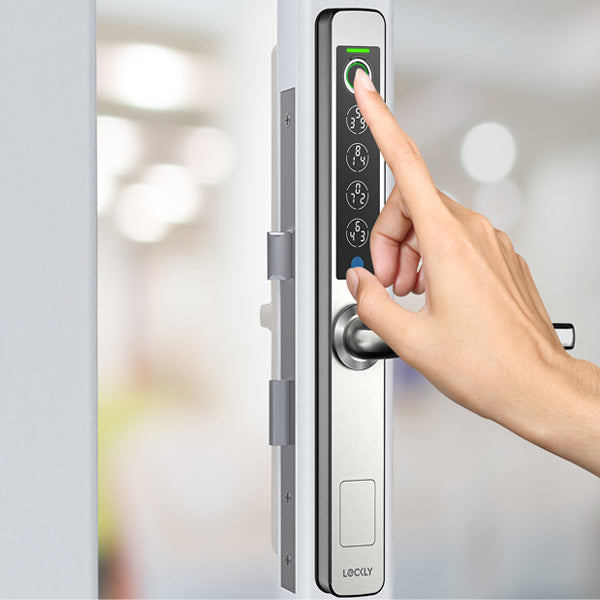

- Advanced 3D biometric fingerprint reader for instant recognition and unlocking, improving speed and accuracy with every touch; can store up to 99 fingerprints; trusted by the Lockly community with 100M+ access granted.
- The patented hack-proof PIN Genie® touchscreen digital keypad prevents codes from being guessed by randomly shuffling PIN number locations. Stores up to 49 Access Codes.

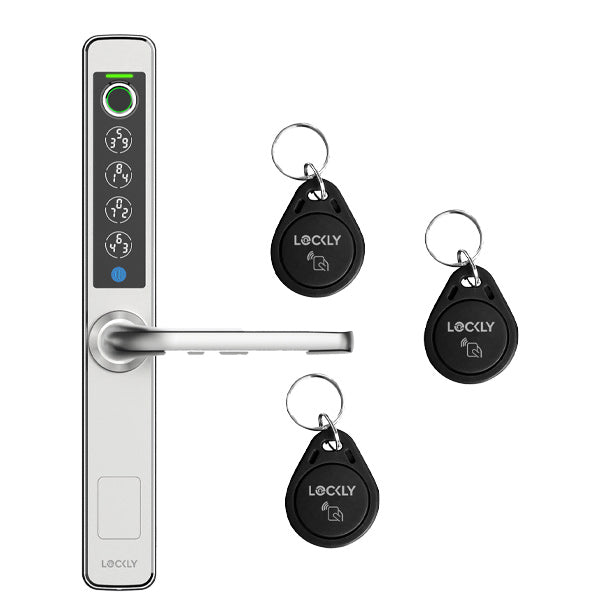

- Fast and easy access with MIFARE RFID cards, fobs, tags or stickers; with entry logs and access permissions that can be personalized and monitored via Lockly app or LocklyOS. Stores up to 999**
- Suitable for most standard right or left slim aluminum /metal or wooden framed glass swinging doors, with 1⅜ " - 2 9/16 " (35mm - 65mm) door thickness. All mounting hardware included and and mortise lockset [Backset options: 1-1/8" (28mm), 1-3/8" (35mm) and 2-3/8" (60mm)]. Requires Advanced DIY or Professional Installation.
- Powered by 4 AA batteries (included), lasts up to 9 months on regular use, low battery warning can be viewed on your app, backup physical keys and Micro USB port backup power options included in case of emergencies.
- Premium quality/lifetime warranty: Made with high quality materials designed to withstand freezing, and hot weather conditions (IPX5 Certified). Backed with Lifetime technical support* & Limited 2-year mechanical, finish and electronics warranty.
- Using the Lockly app or LocklyOS, securely Air Transfer fingerprints and access code user profiles from one Lockly to another lock, as well as program users and guests to conveniently allow them to scan QR code via app to immediately unlock door.
- With Secure Link Wi-Fi Hub (included) remotely lock/unlock, generate Offline Access Codes, eBadges and other temporary /timed specific access programmed for guests; remotely control and monitor your property anytime, anywhere using the Lockly mobile app or LocklyOS.
- Works with LocklyOS™ a full property management system for one or a thousand Lockly devices, designed to allow you to view and control where, when, and by whom your property’s being accessed from anywhere in the world. LocklyOS** is premium service provided by LocklyPRO, subscription is required.
Specifications
Electronic Specifications:
| Access Codes | Stores up to 49 PIN access codes |
| RFID/Fob Key Access | Stores up to 999 MiFare RFID/fob |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access | Unlimited Offline Access Codes / eBadges |
| Access Logs | Unlimited Accessible via LocklyPro Commercial app or LocklyOS |
| Visual and Audible | Exterior: LED (Red, Green) Interior: LED (Red) Configurable Lock/Unlock Audio Indicator |
| Communication Standards | BLE 4.2, Wi-Fi 2.4 GHz, RF433.92MHz Advanced Encryption Standard (AES), 256-bit |
| Gateway Communication Range (networked solution) | Up to 98' (30m) BLE Up to 197' (60m) Wi-Fi Up to 164' (50m) RF433.92MHz Unobstructed open environment |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity Options | LocklyPro app, LocklyOS, Matter Controller ALL in real-time communication |
| Available Signal Status | Battery Status via App Open/Close Door Status Bluetooth connectivity Indicator Sensor LED (Red/Green) |
| Battery Life | AA Alkaline batteries x 4 Type-C backup charging Up to 1 year (offline mode) up to 9 months (regular use with App & Sensor) |
| Operating Temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 100% non-condensing |
Credential Specifications
| Credential Technologies | RFID Card (13.56 MHz) BLE (2.4 GHz) Wi-Fi (2.4 GHz) Capacitive Sensor Pateneted PIN Genie Keypad |
| Standards | ISO 14443 |
| Maximum Read Range | RFID: up to 0.79" BLE: up to 98' (30m) Wi-Fi: up to 197' (60m) |
| RFID/Fob Compatibility | MiFare S50 |
| Mobile Compatibility | LocklyPro Commercial app BLE 4.2 LocklyOS, Matter |
Mechanical Specifications
| Handing | field reversible |
| Materials | Stainless Steel chassis and escutcheon |
| Door Thickness | 1-3/8" - 2-9/16" (35mm - 65mm) |
| Swing Backset | 1-1/8" (30mm), 1-3/8"(35mm), 2-3/8" (60mm) |
| Deadbolt/Latch | 3/4" (20mm) Deadbolt Throw 1/2" (13mm) Latch Throw |
| Door Frame Width | 2" - 3" (50.8mm - 76.2mm) |
| Physical Keys | Laser cut keys compatible, 2pcs included |
Certifications/Warranty
| Certification | RoHS, FC, ADA Compliant |
| Warranty | Lifetime 24/7 Technical Support 2-year Limited Mechanical & Finish 2-yearr Limited Electronics |
What's Included:
- Athena 228SW
- Mortise Lockset
- Strike Plate & Screws
- Allen Wrench
- Secure Link Wi-Fi Hub
- Wired Door Sensors
- Physical Key x 2
- RFID Key Tag x 3
- AA Alkaline Batteries x 4
- Installations Manual
- User Manual
Downloads
- Lockly Smart Phone App -- iPhone Here / Android Here
- Spec Sheet
- User Manual
- Installation Guide
- Installation Template (28mm)
- Installation Template (35mm)
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockly directly at 669-500-8835 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
