Details
Specifications:
Electronic Specifications
| Access Codes | Stores up to 999 PIN access codes |
| Unit-owner access | Supports up to free/starter (36) Essential (199)I/Deluxe (499)/Premium(998) |
| RFID/Fob Key Access | Stores up to 999 MiFare RFID/fob |
| Fingerprint Access | Store 99 biometric fingerprints |
| Remotely Shareable Temporary Access | Unlimited Offline Access Codes / eBadges |
| Access Logs | Unlimited Accessible via LocklyPro Commercial app or LocklyOS |
| Visual and audible | Exterior: LED (Red, Green) Configurable Lock/Unlock Audio Indicator |
| Communication Standards | BLE 4.2, Wi-Fi 2.4 GHz, RF433.92Mhz Advanced Encryption Standard (AES), 256-bit |
| Gateway Communication Range (networked solution) | Up to 98' (3 0m) BLE Up to 197' (60m) Wi-Fi Up to 164' (5 0m) RF433.92MHz Unobstructed open environment |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2s on Fingerprint Recognition |
| Connectivity Options | LocklyPro commercial app, LocklyOS, Matter Controller, ALL in real-time communication |
| Available Signal Status | Battery Status via App Open/Close Door Status Bluetooth Connectivity Indicator Sensor LED (Red/Green) |
| Power | Access Control Power Supply |
| Operating Temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 100% non-condensing |
Credential Specifications
| Credential Technologies | RFID Card (13.56 MHz) BLE (2.4 GHz) Wi-Fi (2.4 GHz) Capacitive Sensor Patented PIN Genie Keypad |
| Standards | ISO 1444 |
| Maximum Read Range | RFID: up to 0.79" BLE: up to 98' (30m) Wi-Fi: up to 197' (60m) |
| RFID/Fob Compatibility | MiFare S50 |
| Mobile Compatibility | LocklyPro Commerical app BLE 4.2 LocklyOS Matter |
Mechanical Specifications
| Handing | Field Reversible |
| Materials | ABS Plastic |
Certifications/Warranty
| Warranty | Lifetime 24/7 Technical Support 2-year Limited Mechanical & Finish 2-year Limited Electronics |
What's Included:
- Ingress 302
- Secure Link Wi-Fi Hub

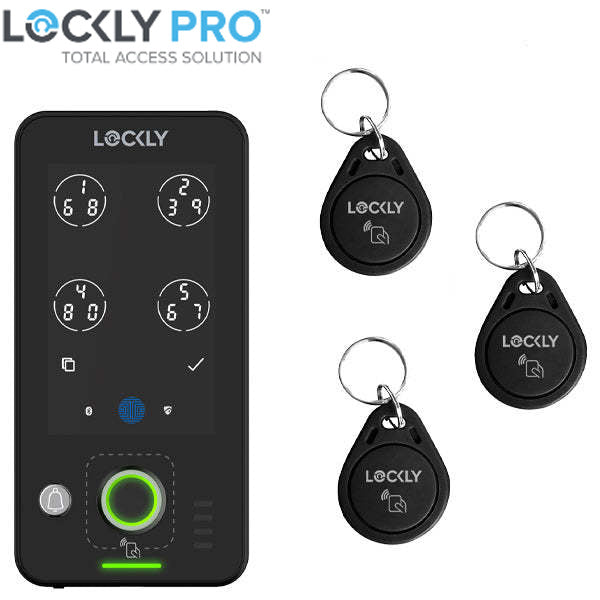

- RFID Key Tag x3
- Wireless Transceiver
- Wireless Exit Button x2
- Wireless Door Sensor
- Wiring Cable
- Screws & Wall Plugs
- Installation Manual
- User Manual

Downloads:
- Lockly Smart Phone App -- iPhone Here / Android Here
- Spec Sheet
- User Manual
- Installation Manual
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockly directly at 669-500-8835 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
