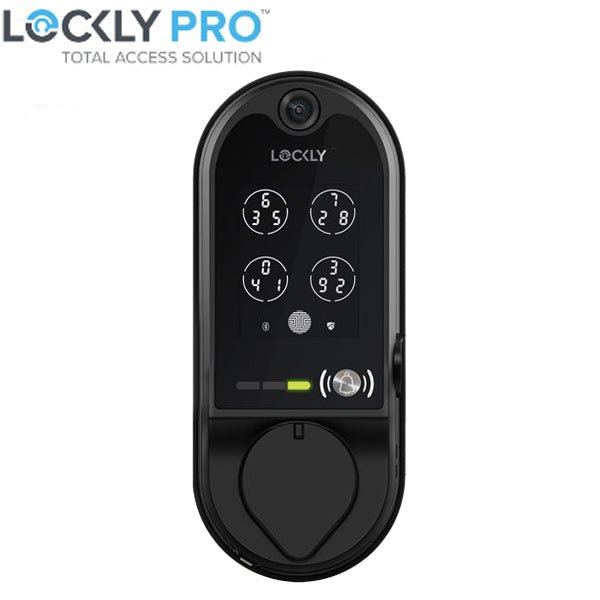

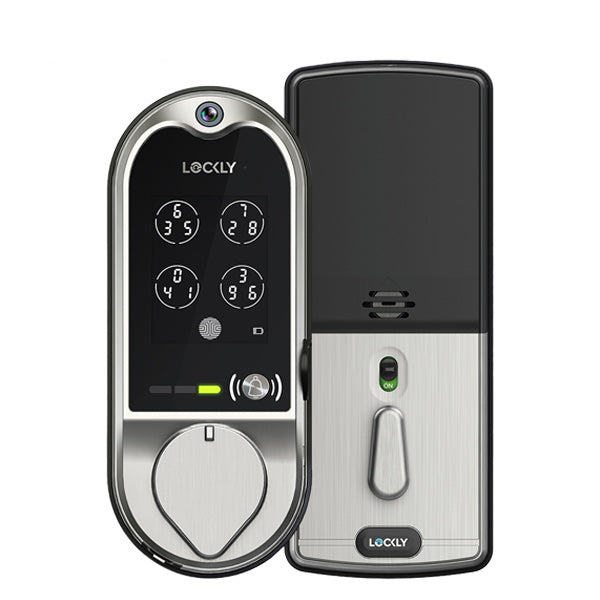

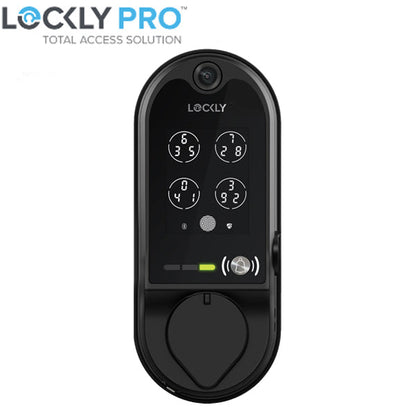

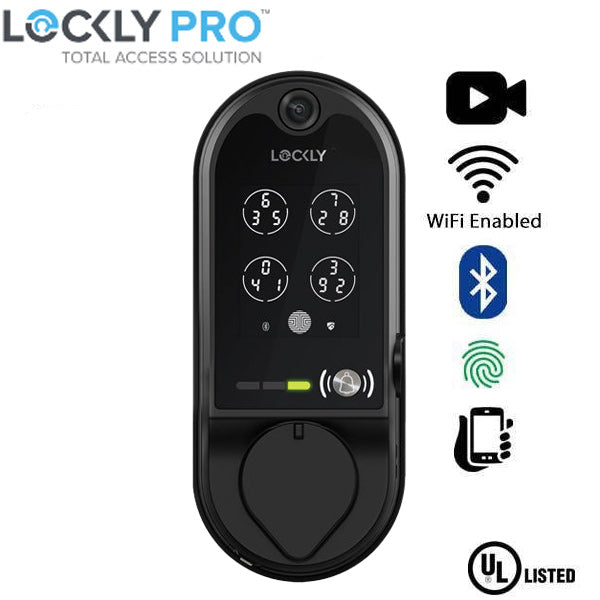

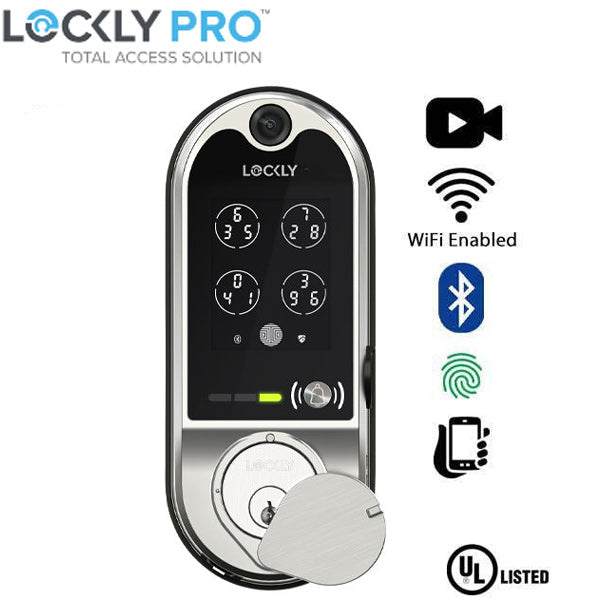

Lockly Guard - VISION 798 - Doorbell Video Camera Deadbolt Smart Lock - Fingerprint Reader - Wi-Fi-Bluetooth App Controlled - Fire Rated - Optional Finish
Lockly Guard - VISION 798 - Doorbell Video Camera Deadbolt Smart Lock - Fingerprint Reader - Wi-Fi-Bluetooth App Controlled - Fire Rated - Optional Finish
$1,055.93$1,267.12On Sale
You save $211.19 (17%)
Quantity
Couldn't load pickup availability

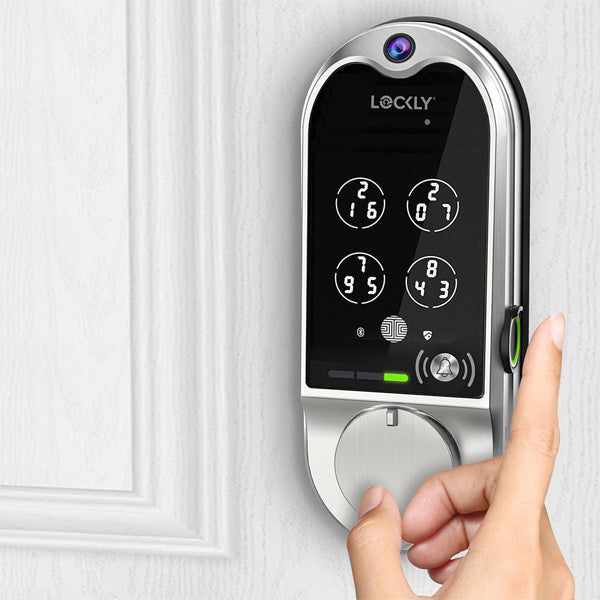

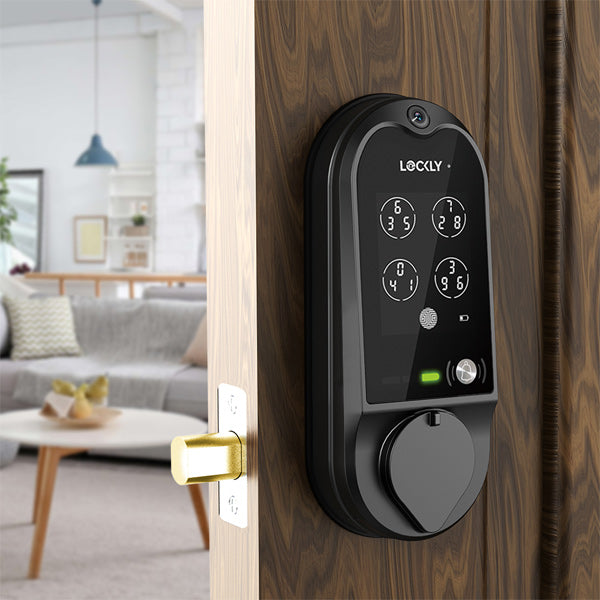

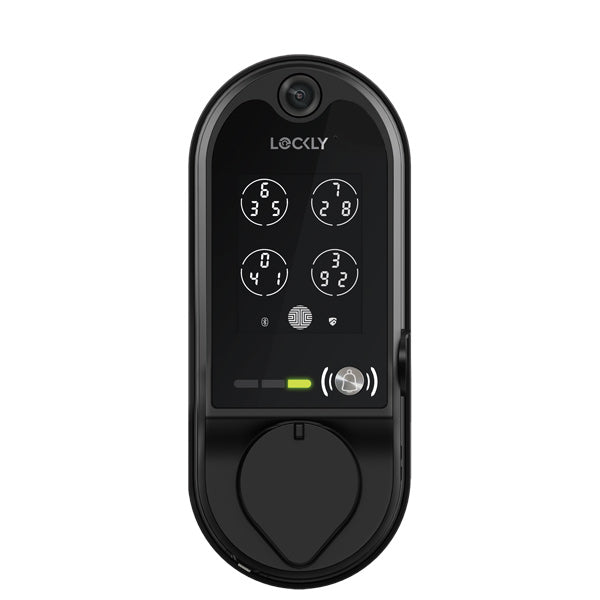

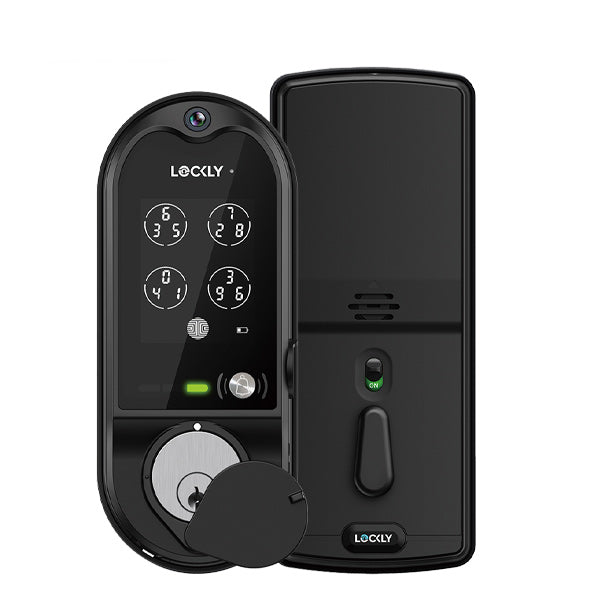

Lockly Guard™ Vision 798 is the first smart lock with a built-in Full HD video camera that combines the award-winning smart lock features and technology of Lockly, with the convenience and security of a video doorbell. Know who's at your door with a live view camera streaming real-time HD video to your smartphone. Recordings are stored on an included SD memory card where they are private, safe and secure. Additional conveniences like a doorbell call button and real-time 2-way voice interaction make accessing and monitoring any door more convenient and secure.
Features:

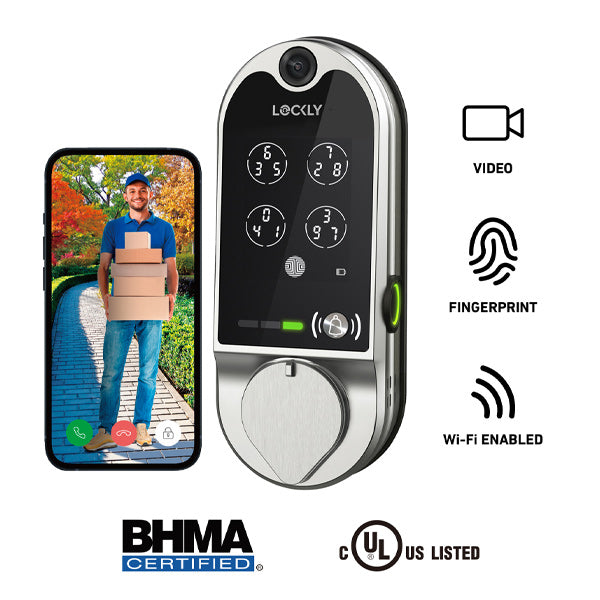

- Live video monitoring and recording, greet people at your door with live view camera streaming and 2-way audio all from the convenience of your smartphone
- Convenient keyless entry with Hack-proof PIN Genie® Keypad, 3D Biometric Fingerprint reader (stores up to 99) and lock/unlock using the Lockly iOS and Android mobile app.
- Smart home ready with plug-n-play Vision Connect hub seamlessly connected via included LAN, remotely lock and unlock your door or simply check status from anywhere using the Lockly mobile app or through your voice with Hey Google or Alexa.
- Using the Lockly App or LocklyOS™, securely Air Transfer fingerprints and access code user profiles from one Lockly to another lock; effortlessly unlock, monitor, and review history logs, grant access using eKeys, eBadges, or Offline Access Codes anytime anywhere.
- Universal fit / easy DIY installation. Fits right or left swing doors 1 3/8" to 2" thick. Easy to install using common household tools, all mounting hardware included.
- Premium quality / lifetime warranty*. Made with high quality materials designed to withstand freezing, and hot weather conditions. IPX4, ANSI, UL10(B)/(C), CAN/ULC-S104, NFPA 252 & FBC certified. Backed with Lifetime technical support* & Limited 2-year mechanical, finish and electronics warranty.
- Powered by 8 AA batteries (included), lasts up to 10 months on regular use, low battery warning can be viewed on your app, backup physical keys and backup power options included in case of emergencies.
- Works with LocklyOS™ a full property management system for one or a thousand Lockly devices, designed to allow you to view and control where, when, and by whom your property’s being accessed from anywhere in the world. LocklyOS is premium service provided by LocklyPRO, subscription is required
View full details
Details
Specifications:
Electronic Specifications
| Video Camera | Full HD 1080P |
| Access Codes | Stores up to 49 PIN access codes |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access | Unlimited Offline Access Codes / eBadges |
| Access Logs | Unlimited Accessible via LocklyPro App or LocklyOS |
| Visual and Audible | Exterior: LED (Red, Yellow, Green) Interior: LED (Red) Configurable Lock/Unlock Audio Indicator Intercom (Doorbell, Microphone, Speaker) |
| Communication Standards | BLE 4.2, Wi-Fi 2.4 GHz Advanced Encryption Standard (AES), 256-bit |
| Gateway Communication Range (networked solution) | Up to 98' (30m) BLE Up to 197' (60m) Wi-Fi Unobstructed open environment |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity Options | LocklyPro Mobile App, LocklyOS ALL in real-time communication |
| Available Signal Status | Battery Status via App Open/Close Door Status Bluetooth Connectivity Indicator Sensor LED (Red/Green) |
| Battery Life | AA Alkaline Batteries x 8 Up to 1 year (offline mode) Up to 9 months (regular use with App & Sensor) |
| Operating Temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 100% non-condensing |
Credential Specificatoions
| Credential Technologies | BLE (2.4 GHz) Wi-FI (2.4GHz Capacitive Sensor Patented PIN Genie Keypad |
| Maximum Read Range | BLE: up to 98' (30m) Wi-Fi: up to 197' (60m) |
| Mobile Compatibility | LocklyPro Commercial app BLE 4.2 LocklyOS |
Mechanical Specifications:
| Handing | Field Reversible |
| Materials | Premium Zinc Alloy chassis and escutcheon Salt Resistant (200hrs test) |
| Door Thickness | 1-3/8" - 2" (35mm - 50mm) |
| Backset | Adjustable 2-3/8" or 2-3/4" (60mm or 70mm) 1" x 2-1/4" round corner faceplate |
| Strike | Deadbolt: 1-1/8" x 2-3/4", round corner Dust box included |
| Bore | 2-1/8" (54mm) diameter Bore hole 1" (25mm) diameter latch hole |

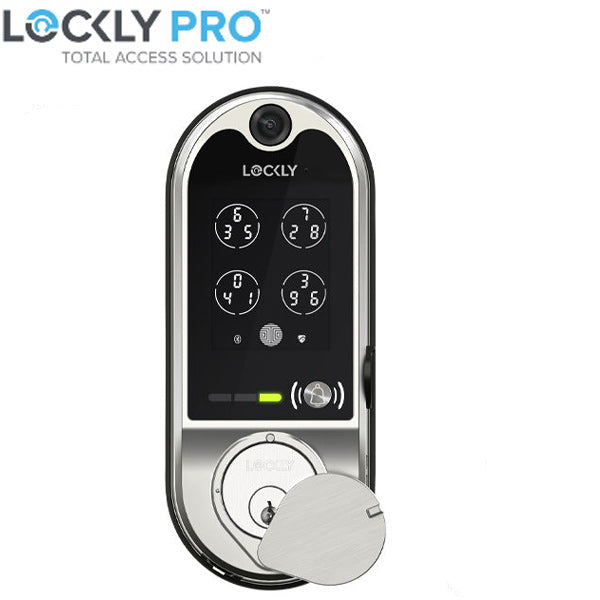

| Physical keys | SC4 Re-keying compatible, 2pcs included |
Certifications/Warranty
| Certification | BHMA, Grade 2, UL10B/10C, FBC |
| Warranty | Lifetime 24/7 Technical Support 5-year Limited Mechanical & Finish 2-year limited Electronics |
What's Included:
- Vision 798U Deadbolt Edition
- Quick Start Guide
- Installation Guide
- User Manual
- Drilling Template
- Vision Connect Hub
- AA Alkaline Batteries x 8
- Activation Card
- LAN Cable
- 32 GB TF Card
- Physical Key x 2
- Deadbolt Assembly
- Fixing Screws
- Mounting Plate
- Strike Plate
- Wire Door Sensor
Downloads
- Lockly Smart Phone App -- iPhone Here / Android Here
- Spec Sheet
- User Manual
- Installation Manual
- Installation Template
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockly directly at 669-500-8835 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
