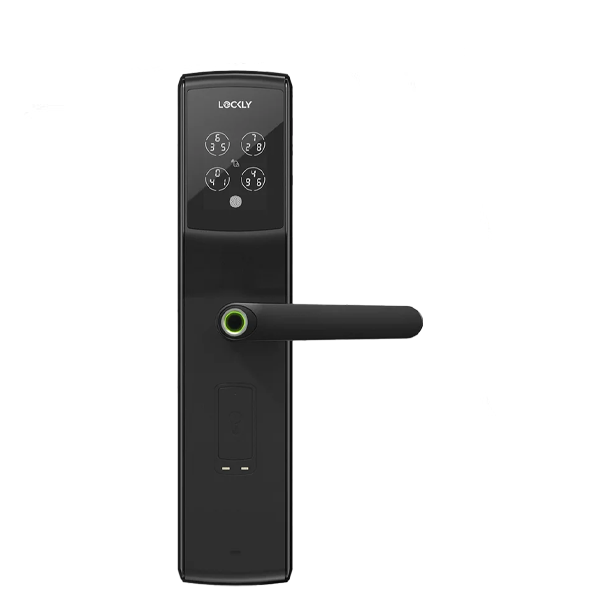

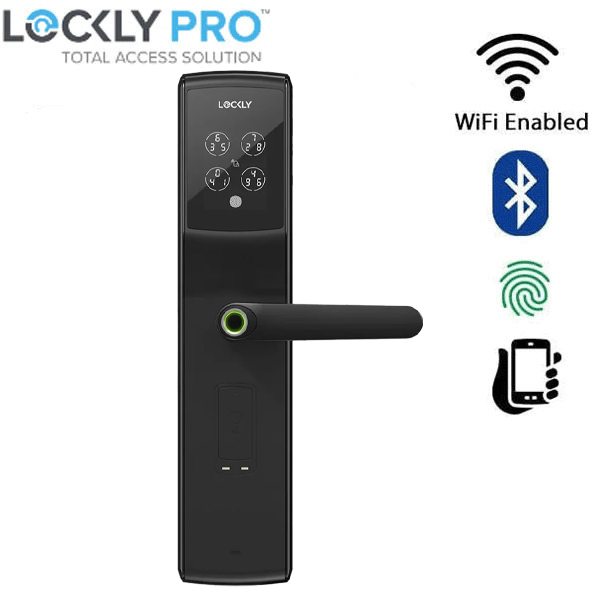

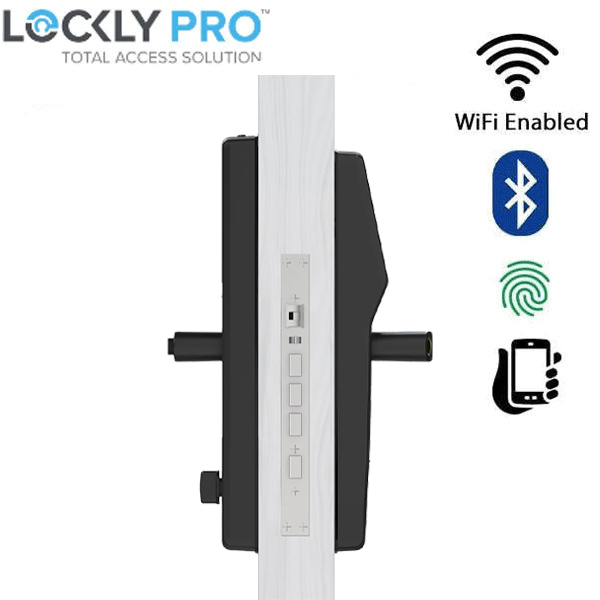

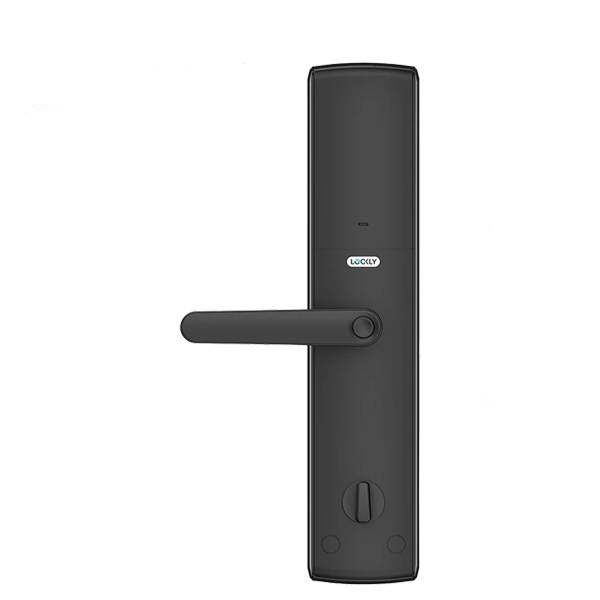

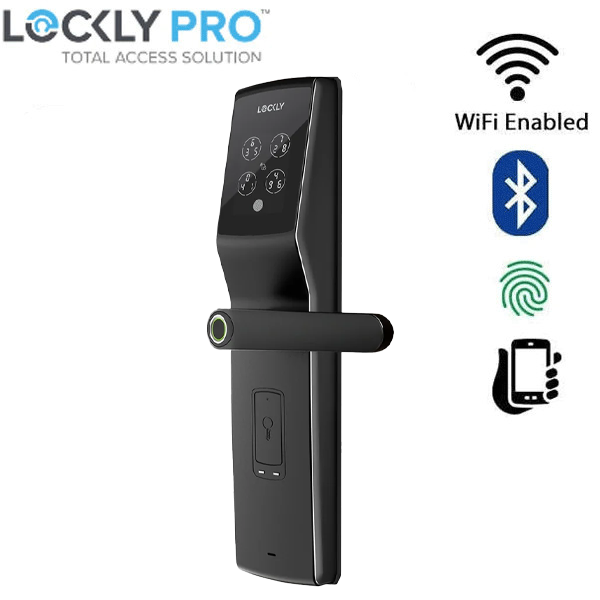

*Discontinued* Lockly - PGD829AFUSMB - Secure Lux - Mortise Smart Lock - Fingerprint Reader - 2-1/8" Backset - RFID Card - Bluetooth App Controlled - Matte Black
Out of Stock
SKU:
LCK-PGD829AFUSMB-218
NSID:
84273
- $910.81
-
$1,092.97 - $910.81
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Secure and manage what's most important to you. Come home secure with Lockly Secure Lux Mortise Edition installed at your front door. Enjoy the freedom of keyless entry to your property with a 3D Diometric fingerprint and hack-proof PIN Genie Keypad.
Features:
- 100M+ Accesses Granted: Most Trusted Fingerprint Sensor smart lock
- Hack-proof Keypad: Patented PIN Genie shuffling the keypad numbers
- Smartphone Control: Open/Close, share, or revoke access with others
- Programmable Auto-Locking: never worry about forgetting to lock your door
- MiFare RFID Card: Fast, easy, and secure access
- Wi-Fi Alerts And Control: get status, alerts, and control from anywhere
- Long-Lasting Battery: Up to months of battery life with typical uses
- Weatherproof: IP54 works in -4 ~151°F ( - 20 ~ 66 °C)
- $910.81
-
$1,092.97 - $910.81
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xAccess And Control Options:
- Keyless Access: Secure, fast, and convenient fingerprint, access code, and RFID on-site set-up, allowing management of properties from anywhere
- Mobile App Control: Unlock, lock, check door, track access history, and unique user profile data.
- Offline Access Codes: Grant access codes to trusted users. Codes work offline without Wi-Fi or internet.
- Grant Access: when you're not there: Remotely lock and unlock your door from anywhere
- Real-time Monitoring and Status: Monitor open/closed door status with real-time alerts sent to your smartphone
- Auto-locking: never worry about forgetting to lock the door with programmable auto-locking
- Wi-Fi Control: Monitoring and control from anywhere, and voice assistant control
- Secure Scan-to-Open: Unlock by unique QR code, revoke capability anytime
- Fast Pass MiFare RFID Access: Supports up to 99 cards. (3 RFID Cards Included)
Electronic Specifications:
| Access Codes | Stores up to 33 PIN access codes |
| RFID / Fob Key Access | Stores up to 99 MiFare RFID / fob |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access | Unlimited Offline Access Codesᵒˢ/ eBadges |
| Access Logs | Unlimited access via the Lockly app or LocklyOS |
| Visual And Audible | Exterior: LED (Red, Yellow, Green) Interior: LED (Red) Configurable Lock/Unlock Audio Indicator |
| Communication Standards | BLE 4.2, Wi-Fi 2.4GHz, RF433.92MHz Advanced Encryption Standard (AES), 256-bit |
| Gateway Communication Range (networked solution) | Up to 98’ (30m) BLE Up to 197’ (60m) Wi-Fi Up to 164’ (50m) RF433.92MHz Unobstructed open environment |
| Command Response | Responds to commands from the host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity Options | Lockly Mobile App, LocklyOS, Matter Controller ALL in real-time communication |
| Available Signal Status | Battery Status via App Open/Close Door Status Bluetooth Connectivity Indicator Sensor LED (Red/Green) |
| Battery Life | AA Alkaline Batteries x 4 Up to 1 year (offline mode) up to 10 months (regular use with App & Sensor) 9V backup power socket |
| Operating Temperature | -4° to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 -95% non-condensing |
Credential Specifications:
| Credential Technologies | RFID Card (13.56 MHz) BLE (2.4 GHz) Wi-Fi (2.4GHz) Capacitive Sensor Patented PIN Genie Keypad |
| Standards | ISO 14443 |
| Maximum Read Range | RFID: up to 0.79" BLE: up to 98’ (30m) Wi-Fi: up to 197' (60m) |
| RFID / Fob Compatibility | MiFare S50 |
| Mobile Compatibility | Lockly App BLE 4.2 LocklyOS, Matter |
Mechanical Specifications:
| Handing | Field Reversible |
| Materials | Premium Zinc Alloy chassis and escutcheon |
| Door Thickness | 1-3/4" - 4-3/4" ( 40 - 120mm) |
| Backset | 2-1/8" (60mm) |
| Deadbolt / Latch | 3 x ¾″ (20mm) Deadbolt Throw 1 x ½” (13mm) Latch Throw 1 x ⅝ ” (16mm) Deadbolt Throw safety Pin Lockset Body: 3.72” x 6.93” x ⅞” (94.5 x 176 x 22mm) |
| Strike | 9.5″ x 1″ (240 x 24mm) Dust Box Included |
| Bore | See the installation drilling template |
| Physical Keys | 12-pin SCC Laser cut keys, 5pcs included |
Certifications / Warranty:
| Certifications | RoHS, FC, ADA compliant |
| Warranty | Lifetime 24/7 Technical Support 5-year Limited Mechanical & Finish 2-year Limited Electronics |
Package Includes:
- Lockly Secure Lux Mortise Edition
- Quick Start Guide & Installation Guide
- User Manual
- AA Alkaline Batteries (4x)
- Drilling Template
- Activation Card
- RFID Key Tags (3x)
- Physical Keys (2x)
- Mortise Lockset
- Fixing Screws & Mounting Plate
- Strike Plate & Dust Box
