Magic - FLEX FLK02 - TCU & ECU Programmer - Base Device w/ Full Hardware Kit (New Users Bundle)
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $1,167.00
-
$1,411.76 - $1,167.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
FLEX is an innovative tool for mechatronic workshops that fully supports the latest developments in the automotive tuning and repair market. This kit includes everything you need to get started as a new user.
FLEX HW kit for New Users
Use your FLEX to easily reprogram, update or modify the software of most engine control units directly through the vehicle's OBD socket. A simple Internet connection gives you access to all the potential that the tool offers you.
For more advanced or repair work, use the FLEXBox module to program the control unit in BDM, Bootloader, JTAG, and AUD modes. The device detects any connection or communication errors thanks to its cutting-edge design.
Full Vehicle Coverage List HERE
More Information Below:
Flex is the tool that allows you to remap, update and repair ECUs and TCUs. Using only a PC and a stable internet connection you're be able to link cars, bikes and trucks ECUs.
With Flex you have everything you need to start working in the world of chiptuning and boost your business with a lot of services and solutions in your mechatronics workshop.
The programmer supports all available connection modes. You can easily connect to most of the car ECUs via the vehicle's OBD port. While, for more advanced jobs, BDM, Bootloader and JTAG modes are also possible.
Endless Evolution
With more than 25,000 supported vehicles Flex is the perfect solution for each workshop.
Furthermore, this number of supported protocols is constantly increasing thanks to our team research, so the tool is always updated and on move with the times.
Working with Flex is so simple: just chose the brand and the model or digit the ECUs code, then the software will give back all the available modes.
Select the preferred modality and instantly you'll ready to start your needed mod.
CONFIGURE FLEX
FLEX tailored to your work. Customize FLEX, choose the software packages and accessories that best suit your business. The first year's subscription fee is included in the purchase of a new tool to increase your productivity and bring your business up to the next level by adding this new customizable technology to your workplace.

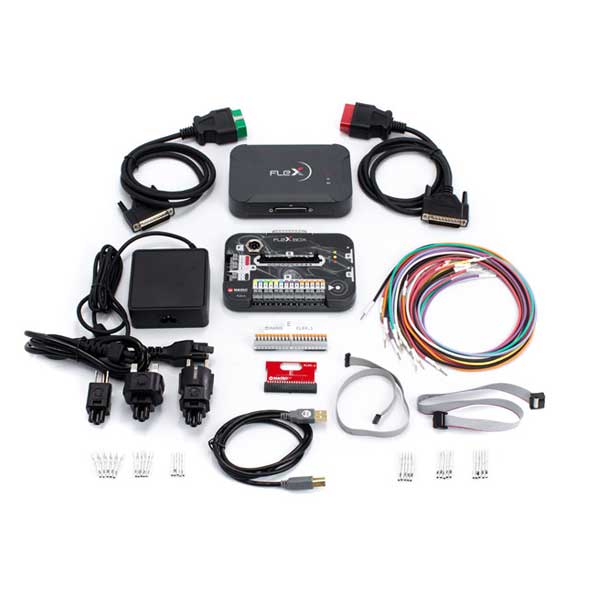

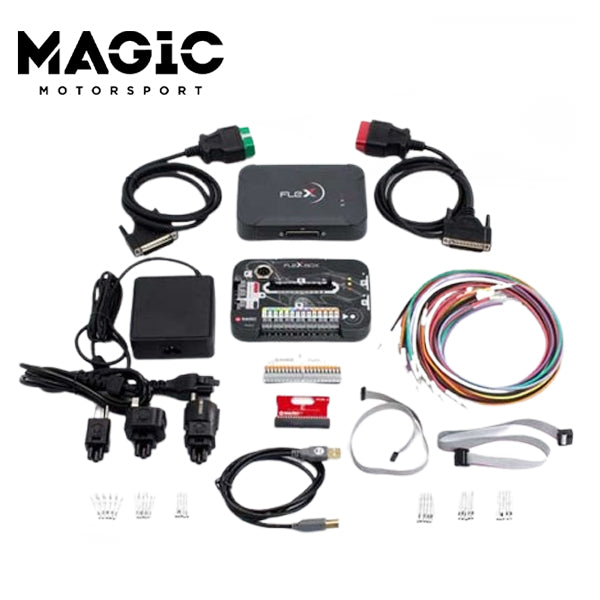

Included in the Hardware Kit:

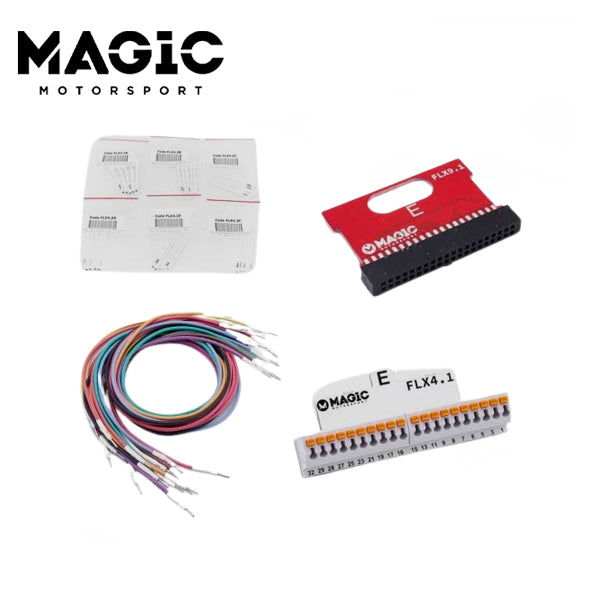

| 1 | Adapter Kit: 6 pcs set of pin adapters to FLX35 |

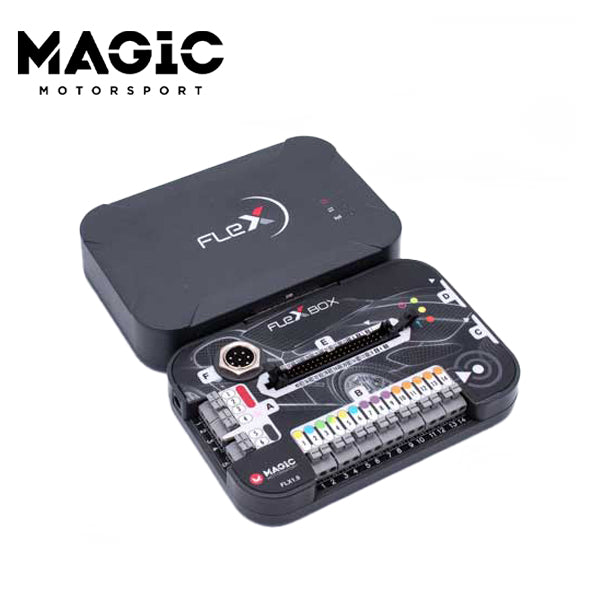

| 1 | FLEX Base Module |
| 1 | FlexBox Module for FLEX |

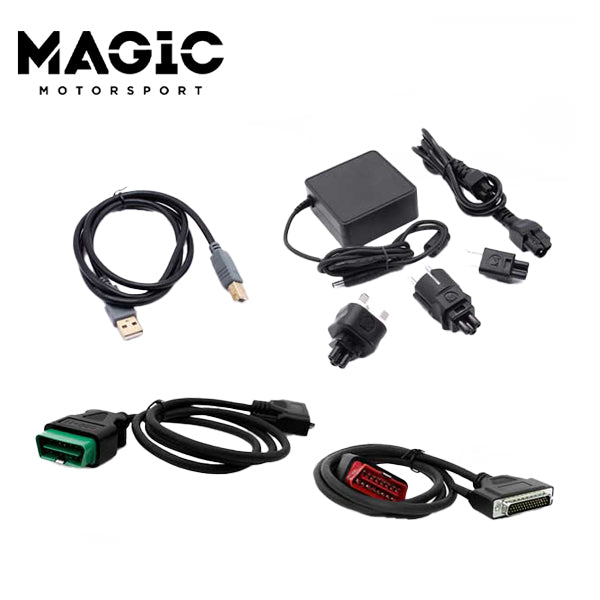

| 1 | Connection cable OBD: FLEX to CAN/Kline RED |
| 1 | Connection cable OBD: FLEX to ENet GREEN |
| 1 | Connection cable: FlexBox port C to NEC 7F00 XX |
| 1 | Connection cable: FlexBox port D to BDM MPC5xx |
| 1 | Connection cable: USB 2.0 AM-BM BLK 1.8m |
| 1 | FlexBox port E 40 pin adapter for FLK35 |
| 1 | FLEX & FlexBox diagnostic adapter |
| 1 | Switch Mode Power Supply for FLEX with plugs |
| 1 | FLEX Branded Box |
| 1 | Cabling kit: FLX3.5 color-coded wiring harness |
Helpdesk runs on a coin payment system through the system itself. There are two types of coins: GREEN and RED.
RED coins are prepaid funds that have a monetary value per coin. These can be bought through your Helpdesk account. RED coins can be converted to GREEN coins if necessary.
GREEN coins are a special type of coin that are given to users that possess an FLEX or X17 MASTER tool. MAGICMOTORSPORT grants these MASTER users 300 GREEN coins a month that can be used for specified services. These GREEN coins cannot be converted into RED coins or be accumulated over time and their amount will automatically be reset to 300 at the beginning of each month.
Master Versions of the Software Modules Offer 300 Green Coins per Month to Be Used for Helpdesk Support. Green Coins are not cumulative and reset each month to 300.
All support for this product is provided through the Magic Motorsport Help Desk application HERE
SOFTWARE SOLD SEPARATELY
Available Software Modules Listed Below
| SKU | DESC | Master / Slave | BUY HERE Link to Software |
| FLS0.1M | Software Flex ECU OBD + Bench – MASTER | Master | BUY HERE |
| FLS0.1S | Software Flex ECU OBD + Bench SLAVE | Slave | BUY HERE |
| FLS0.2M | Software Flex TCU OBD + Bench – MASTER | Master | BUY HERE |
| FLS0.2S | Software Flex TCU OBD + Bench – SLAVE | Slave | BUY HERE |
| FLS0.3M | Software Flex Motorola MPC5xx – MASTER | Master | BUY HERE |
| FLS0.3S | Software Flex Motorola MPC5xx – SLAVE | Slave | BUY HERE |
| FLS0.4M | Software Flex Nexus MPC5xxx – MASTER | Master | BUY HERE |
| FLS0.4S | Software Flex Nexus MPC5xxx – SLAVE | Slave | BUY HERE |
| FLS0.5M | Full Flex SW Package – MASTER | Master | BUY HERE |
| FLS0.5S | Full Flex SW Package – SLAVE | Slave | BUY HERE |
| FLS0.6M | Software Flex Renesas SH7xxxx – MASTER | Master | BUY HERE |
| FLS0.6S | Software Flex Renesas SH7xxxx – SLAVE | Slave | BUY HERE |
| FLS0.7M | Software Flex Siemens C165/166/167 – MASTER | Master | BUY HERE |
| FLS0.7S | Software Flex Siemens C165/166/167 – SLAVE | Slave | BUY HERE |
| FLS0.8M | Software Flex ST10F2xx – MASTER | Master | BUY HERE |
| FLS0.8S | Software Flex ST10F2xx – SLAVE | Slave | BUY HERE |
| FLS0.9M | Software Flex NEC 76F00xx – MASTER | Master | BUY HERE |
| FLS0.9S | Software Flex NEC 76F00xx – SLAVE | Slave | BUY HERE |
| FLS0.10M | Software Flex Infineon TC17xx – MASTER | Master | BUY HERE |
| FLS0.10S | Software Flex Infineon TC17xx – SLAVE | Slave | BUY HERE |
