Major Mfg - HIT-66 - Drill Guide For Yale Mortise Locks - 1-1/4” to 2-7/8”
In Stock
SKU:
MJR-HIT-66-295
NSID:
80013
- $655.08
-
$786.10 - $655.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

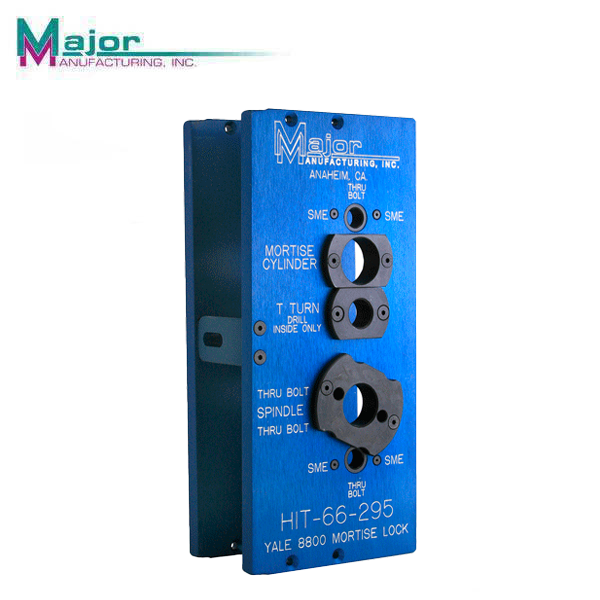

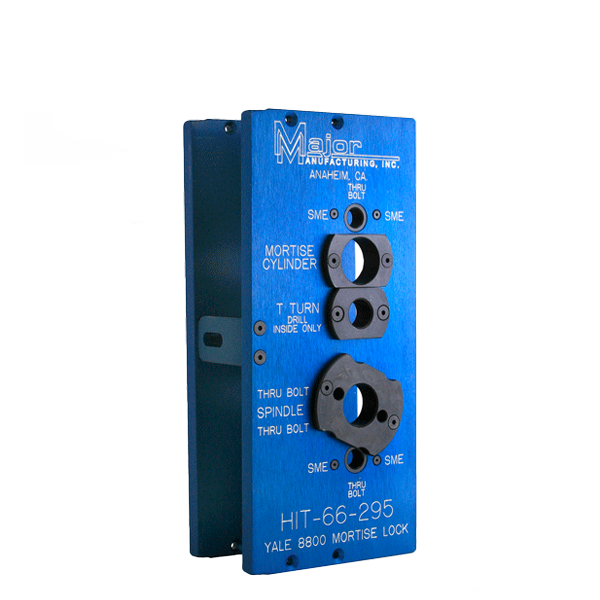

The new HIT-66-295 template is designed to quickly and accurately install or retrofit the Yale 8800 series mortise locks. All required holes are lined with hardened drill bushings; the larger holes for the mortise cylinder and lever spindle will also accept hole saws. Plates are machined from aluminum and hard anodized. This template requires the HIT-66 clamp system that includes the HIT-4509 mortise alignment plate (HIT-66 clamp system sold separately). The template set includes both inside and outside template guides. All drill guide holes are identified for trouble-free drilling. Door range for the HIT-66 clamp system is 1-1/4” to 2-7/8”.
Specifications:
- Door range for the HIT-66 clamp system is 1-1/4" to 2-7/8"
- The template will locate with drill guide holes for the M&N and J trim
- This template requires the HIT-66 clamp system that includes the HIT-4509 mortise alignment plate (clamp system sold separately).
- Includes both inside and outside template guides
- Plates are machined from aluminum and hard anodized
- All drill guide holes are identified for trouble-free drilling
