Marks - 5CL-92FW - 5 Series - Mortise Door Lockset - Keyed Single Cylinder - American Lever - Classic Plate - 2-3/4" Backset - Satin Stainless Steel
- $237.10
-
$284.52 - $237.10
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

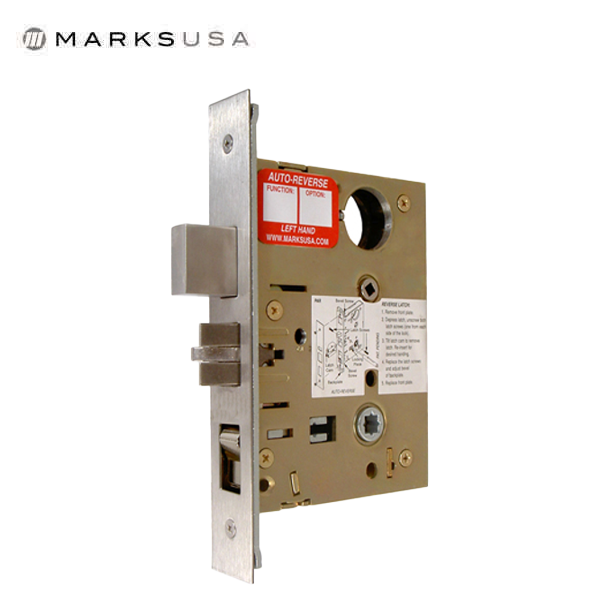

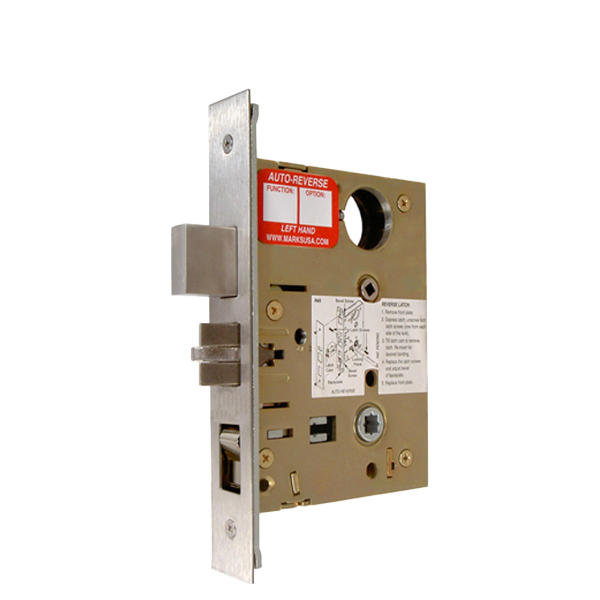

Marks USA announces its new AUTO-REVERSE (patent pending) 5 Series Mortise Lock. AUTO-REVERSE enables the lock handing to be reversed without removing the lock cover. The simplicity of the procedure allows reversal without ever exposing the internal components.
AUTO-REVERSE 5 Series Locksets are UL Listed, BHMA/ANSI certified to Grade 1, and are backed by Marks USA’s limited LIFETIME MECHANICAL WARRANTY.
Locksets are available in over 40 functions, all with thru-bolted trims for automatic trim-lock alignment.
Lever trims and lock bodies include independent support springs and self-adjusting spindles.
Marks USA offers a wide variety of both standard and custom trims with knobs, levers, rosettes, and escutcheon plates, allowing them to accommodate even the most challenging customers' needs.
Specifications:
| Function | Apartment |
| Backset | 2-3/4" |
| Bolt Throw | Stainless Steel full 1" throw |
| Latch Throw | 3/4" (anti-friction) |
| Rose / Escutcheon Style | Escutcheon |
| Rose / Escutcheon Size | 10-1/2" x 2-3/4" |
| Cylinder Type | 6-Pin Cylinder |
| Keyway | Marks C |
| Knob / Lever Design | American |
| Auxiliary Latch | 1/2" Throw |
| Handing | Field Reversible |
| Knob/Lever Style | Lever |
| Case | Stamped steel .090 thick |
| Front | 1-1/4" x 8", Adjustable bevel |
| Hubs | Steel, 9/32" on diamond 5/16" on square w/security separator |
