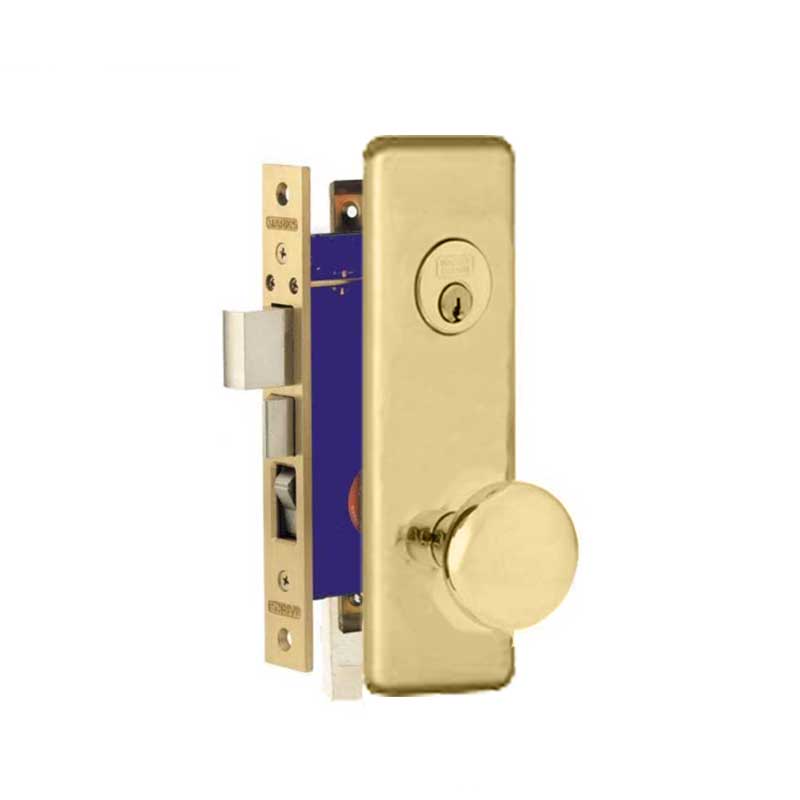

*Discontinued* Marks USA - 7CL10A - Classic Mortise Knob Lock - US3 Polished Brass - 2-3/4" Backset - Entrance
Out of Stock
SKU:
MRK-7CL10A-US3
NSID:
17453
- $156.01
-
- $156.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
MRK-7CL10A-US3
Combine security with style with the Marks Classic 7 Series Mortise Locks. Perfect for residential or commercial applications.
- Thru-bolted screwless knob/lever plate assemblies
- Independent spring loaded captivated spindles
- Reversible mortise lock 2-3/4” backset
- Lever support springs
- $156.01
-
- $156.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Trim | Knob Lockset |
| Exterior | Steel reinforced brass plates with cylinder recess, 10" x 2-3/4". Polished brass finish (US 3). Wrought brass, knob, 2-1/4" diameter with two set screws. Two piece 9/32" steel swivel spindle. |
| Interior | Steel reinforced plate 7" x 2-1/4". Polished brass finish (US 3). Wrought brass knob, 2-1/4" diameter with two set screws. |
| Cylinder | 1-1/8" long solid brass |
| Keyway | MARKS “C” keyway, 6 pin w/ 2 keys |
| Strike | 4-7/8" x 1-1/4" x 3/32" thick, 5/8" curved lip. Conforms to ANSI spec., A115.1. |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 7 Series (2-3/4" Backset) |
| Faceplate | 1-1/4" X 8" steel backplate with brass cover plate. |
| Deadbolt | Cast 1" throw, steel reinforced. |
| Latch | Solid brass, 1/2" throw (reversible). |
| Rocker Switch | Locks or unlocks exterior lever. |
| Hub Lock Arm | (to lock hub) Steel 1/8" thick . |
| Hubs | 9/32" on square. |
| Case | High pressure cast Zamac, baked powder coat finish. |
| Certifications: | ANSI-A156.13 • Grade 2 |
