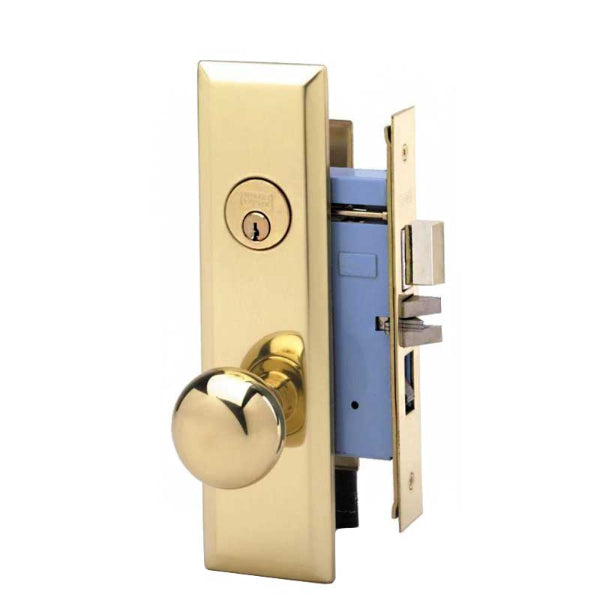

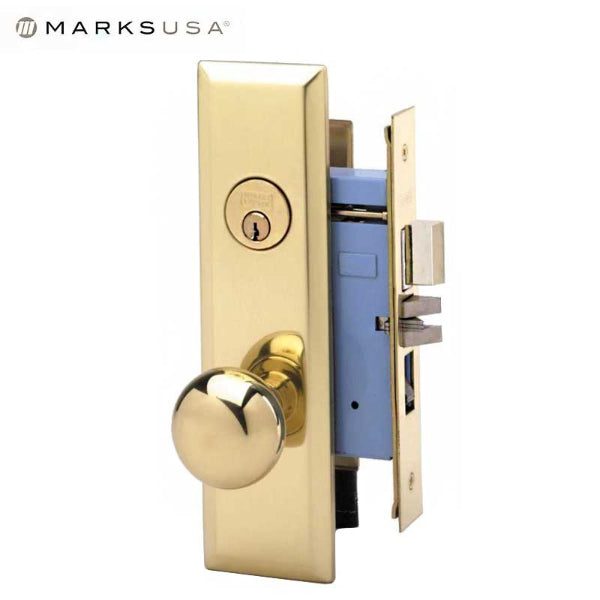

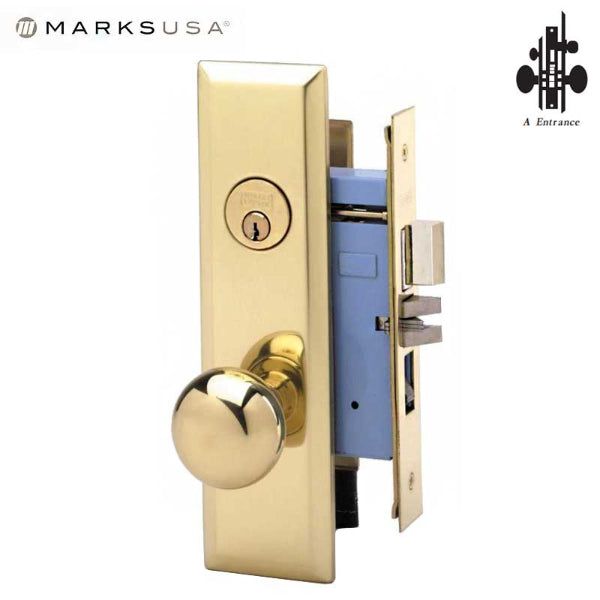

Marks USA - 7NY10A/3 - New York Mortise Knob Lock - U3 - 1-1/4" X 8-5/8"- Entrance - LH - Polished Brass
In Stock
SKU:
MRK-7NY10A-3-Y-LH
NSID:
77750
- $181.80
-
$218.16 - $181.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Combine security with style with the Marks New York 7 Series Mortise Locks. Perfect for apartments and residential buildings.
- Polished Brass
- Solid Brass plates
- Left Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Series 7 New Yorker Mortise Knob Lockset |
| Function | Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch. |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | Solid brass 1/2” throw, reversible |
| Lock Front | 1-1/4” x 8-5/8”, Flat |
| Door Thickness | 1-3/4" standard. |
| Lock Specifications | 9 Series (2-3/4" Backset) |
| Case | High-pressure cast Zamac, baked powder coat finish. |
Diagram (Note: Diagram Shows Deadbolt Models )
