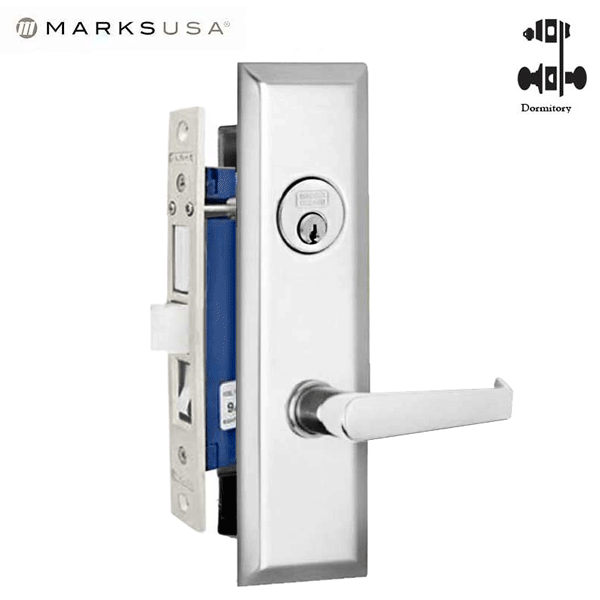

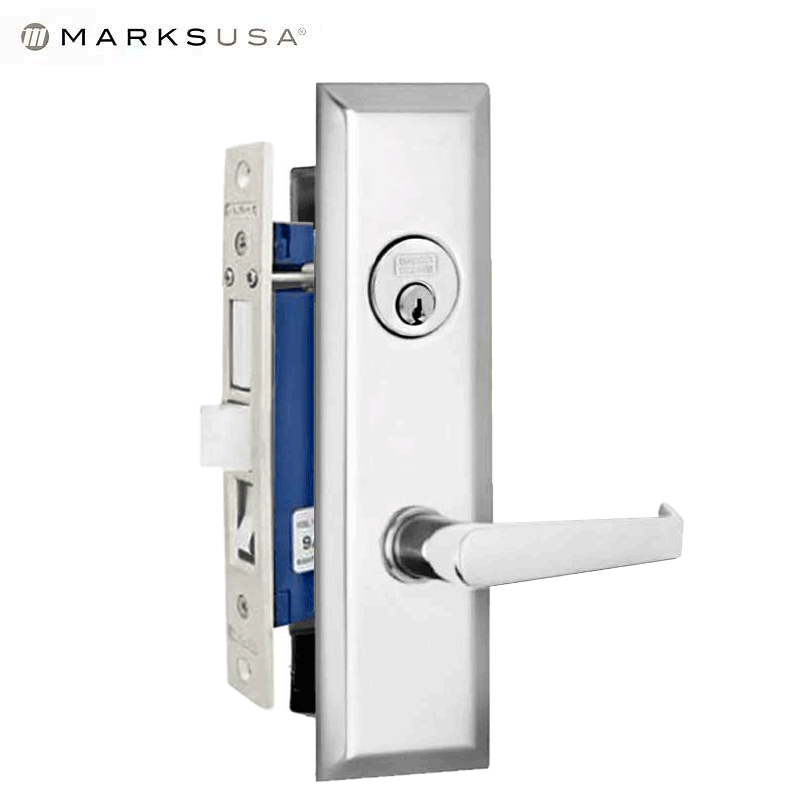

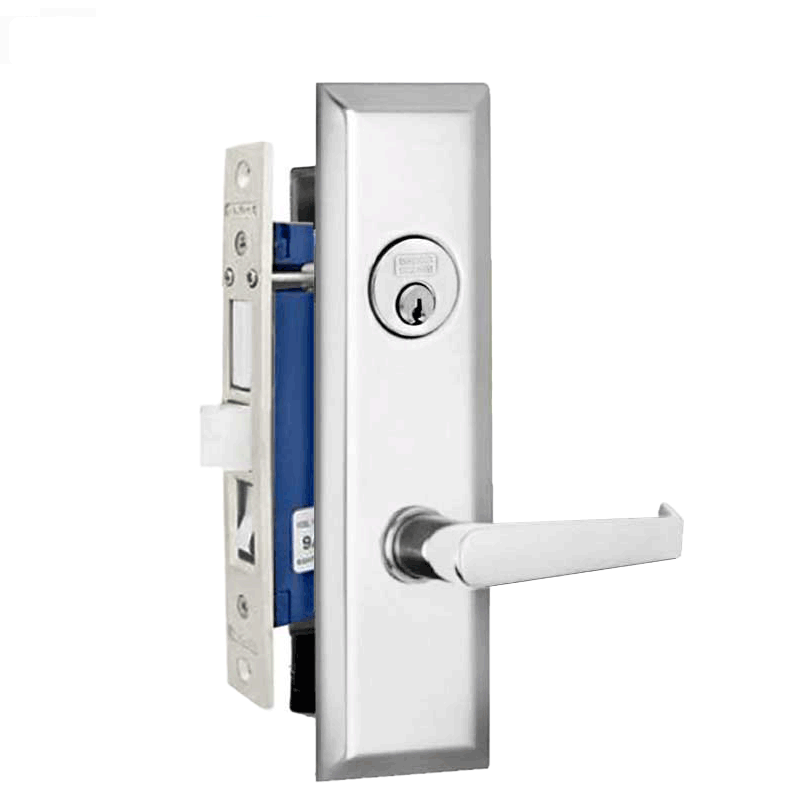

Marks USA - 7NY92F-26D - New York Mortise Lever Lock - 26D - 1-1/4" X 8"- Dormitory - RH
In Stock
SKU:
MRK-7NY92F-RH-26D
NSID:
17302
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $146.89
-
$169.99 - $146.89
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Combine security with style with the Marks New York 7 Series Mortise Locks. Perfect for Dormitories.
- Satin Chrome
- Solid Brass plates
- Right Hand Mortise Lockset
- American Lever Style
- Solid brass cylinder - 2 keys
Specifications
| Trim | Series 7 New Yorker Mortise Lever Lockset |
| Function | Dormitory -The deadbolt is engaged or retracted by an outside key or an inside thumb-turn. When the deadbolt is engaged the outside grip is locked and will not retract the latchbolt. The latchbolt is retracted by the grip on either side as long as the deadbolt is retracted. When the deadbolt is engaged the inside grip simultaneously retracts both the deadbolt and the latch. |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | Solid brass 1/2” throw, reversible |
| Lock Front | 1-1/4” x 8”, Flat |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 Series (2-3/4" Backset) |
| Case | High pressure cast Zamac, baked powder coat finish. |
Diagram (Note Diagram Shows Deadbolt Models )
