*Discontinued* Marks USA - M9900LITE - IQ7Lite - M9900 Rim Panic Exit Device - Combo - 32D Satin Stainless - 36" - Grade 1
*Discontinued* Marks USA - M9900LITE - IQ7Lite - M9900 Rim Panic Exit Device - Combo - 32D Satin Stainless - 36" - Grade 1

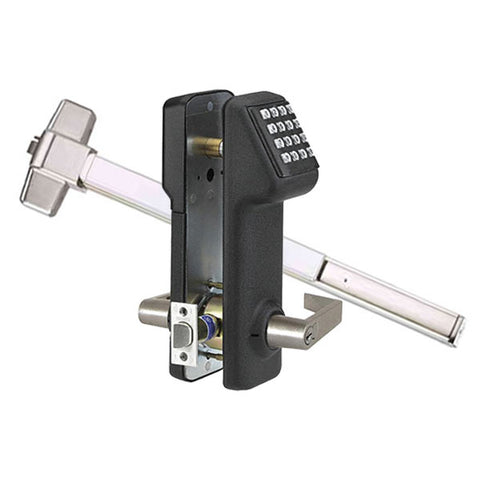

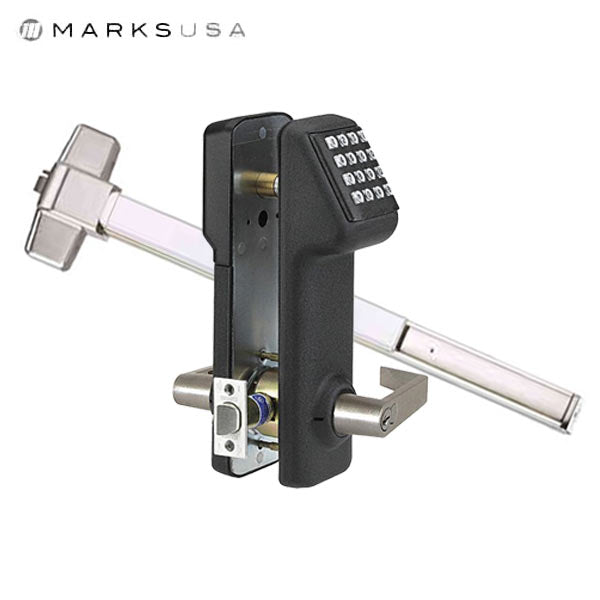

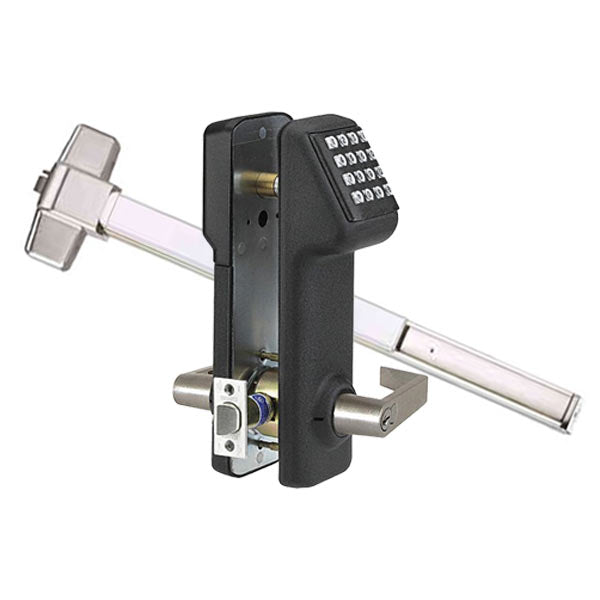

The M9900Lite Exit Devices with the included IQ7Lite from Marks USA offers a simple, heavy-duty, easily installed solution where high-quality panic hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high-impact applications such as schools, universities & other institutional or commercial buildings, and retrofit all popular preps. The M9900Lite heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch bar assembly minimizes catch hazards. To help alleviate the problem of end caps breaking off due to abuse from carts, they have a mitered steel flush-mounted Panic Protector End Cap. The IQ7 is Marks USA freestanding access control lockset. They allow Rim Exit device doors to be locked or unlocked via a user-programmable keypad, rather than a key. The IQ7 Lockset features the "CableGard" to protect the wiring going through the door.
Features:
- Includes Both The M9900 Rim Panic Exit Device And The IQ7Lite
- Ultra-Durable, Heavy-Gauge Extrusion
- Steel flush-Mounted Panic ProtectorTM End Cap
- Easy Installation & Retrofits All Popular Preps
- ANSI 156.3 (2001), Grade 1
- M9900 is 3 Hour Fire Rated Dead Latch Bolt; Stainless Steel 3/4" Throw
Details
M9900Lite Specs:
| End Cover | Flush Mounted Beveled "Panic Protector" design. |
| Strike | Roller strike |
| Door Thickness | 1-3/4" Standard |
| Handing | Non-Handed |
| Key Override | 1-1/8" Mortise Cylinder, 6 Pin W/2 Keys |
| Rail Assembly | Extruded Aluminum, 32D Finish |
| Deadlatch Bolt | Stainless Steel 3/4” throw |
| Door Width |
36″ device for up to 3′ wide opening |
| Dogging feature | Allen Key |
| Latch Bolt |
3/4″ throw, stainless steel |
| Dogging | Allen wrench type |
| Finish | US32D - Satin Stainless |
| Certifications |
UL listed: For “Panic Hardware” ANSI: ANSI 156.3 (2001), requirements for Grade 1 |
| Manufacturer Warranty | Marks Lifetime Mechanical Warranty |
IQ7Lite Basic Specs:
| Lock Function | Panic Exit Trim Keypad Digital Lock |
| Door Thickness | 1-3/4" x 1/8" standard. |
| Handing | Non-Handed; Fully Field Reversible |
| Cylinder | Uses standard rim cylinder to operate key override function |
| Included | Adapter Kit |
| Keyway | Schlage SC1 Keyway |
| Keypad | Weather-resistant all-metal, 12 buttons. All functions programmable through the keypad |
| Users | 160 User Codes |
| Power | 5 AA alkaline batteries (included) |
Downloads
