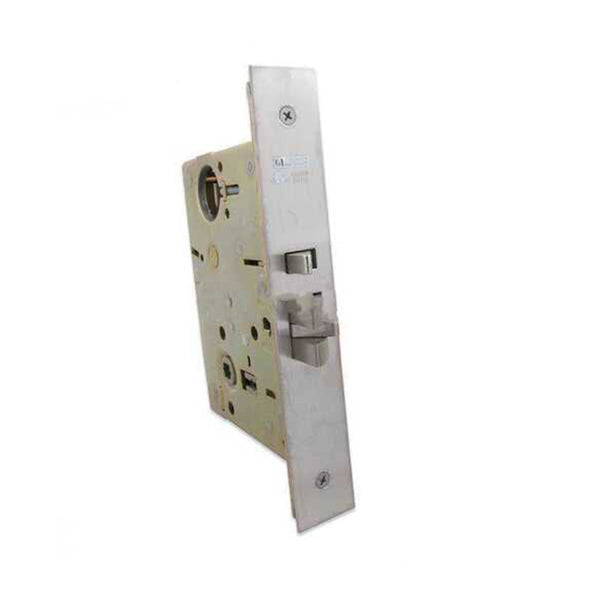

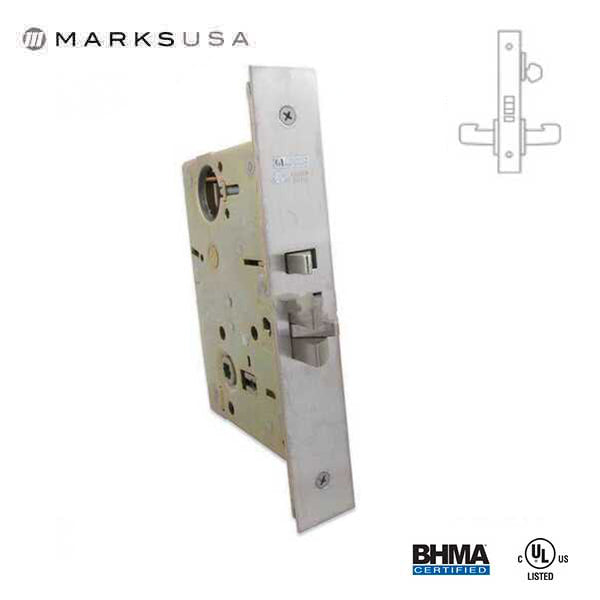

Marks USA - Nova 5J/32D-B4S6 - Mortise Lock Body - 26D - Classroom - Optional Handing - Grade 1
- $109.35
-
$131.22 - $109.35
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Nova 5 Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.
More Details Below
- Deadlocking latch bolt by knobs/levers. Outside knob/lever locked by key outside. Inside knob/lever always free
Lock Function | ANSI F05 Classroom |
Handing | Right or Left Handing Available, Select your option Below |
Lock Front | Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick stainless steel. Cover plate 1/16” thick |
Latch | Solid stainless steel with antifriction latch lever, 3/4” throw |
Hubs | Steel, 9/32’’ on diamond, 5/16” on square with security separator. Independent exterior and interior lever support springs |
Lever Support Springs | Lever support springs with 5/16” Hubs |
Hub Follower | (to lock hub) steel 1/8” thick |
Hub Stop | (to limit lever travel) steel 1/8” thick. |
Strike Size | 4-7/8 Inch |
Case | Stamped steel 3/32” thick, zinc dichromate finish. |
Certifications | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act |
Manufacturer Warranty | Marks lifetime mechanical warranty |
See Video Below on How to Reverse the Handing on the Nova 5 Series Mortise Locksets
