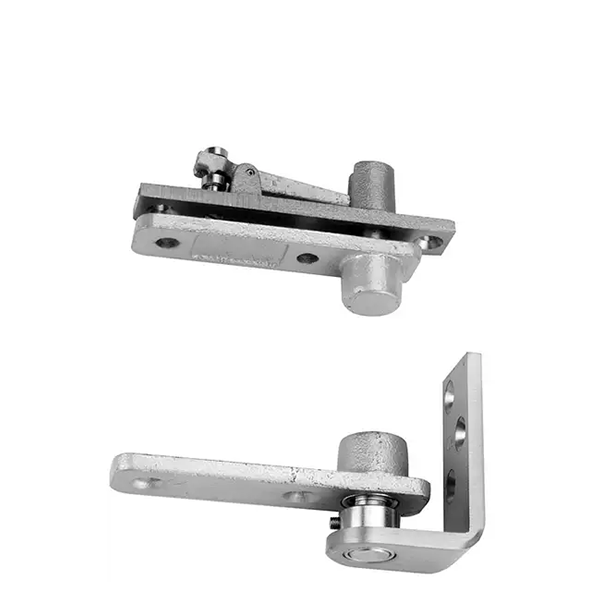

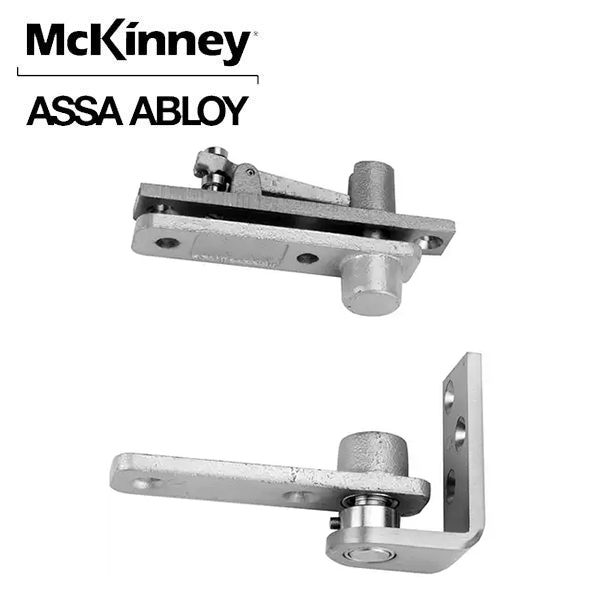

McKinney - EP-5J - Jamb Mount Pivot Hinge Set - Satin Chrome

Available to Order
SKU: MCK-EP-5J-26D
NSID: 36534

Please Note: This product ships within 2 Days

$87.50
$98.28
$87.50


Recommended for use on average frequency double acting doors in schools, hospitals, institutions and other public buildings. Not for use on labeled doors and frames.

Features:

  • Thrust steel ball bearing in bottom pivot, oil impregnated bronze bearing in top pivot
  • Center Hung
  • Mortised into side jamb
  • Full mortise top pivot
  • Non-handed
  • 1-5/32" radius heel edge of door
  • Maximum Door Weight (interior or exterior) up to 135 lbs 3'6" x 8'0"
  • All EP-5J Pivot sets are packed with 14 x 1-1⁄2" wood screws and 1⁄4-20 x 5⁄8" machine screws
  • Ferrous base pivot set polished and plated
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Maximum door weight 135 lbs
Door thickness 1-3/4" to 2"
Handing Non-handed
Fasteners All EP-5J Pivot sets are packed with 14 x 1-1⁄2" wood screws and 1⁄4-20 x 5⁄8" machine screws
Manufacturer Warranty 1 year
