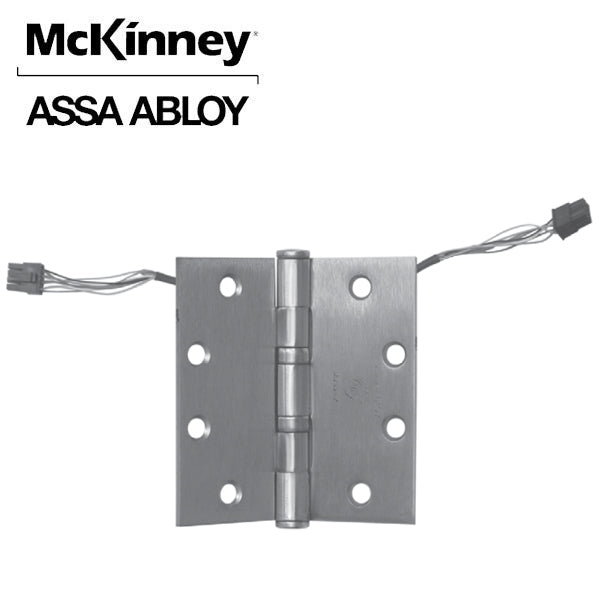

McKinney - TA314 - Full Mortise Hinge - 3 Knuckle - 4.5 "x 4.5" - Standard Weight - ElectroLynx Connector - Stainless Steel
- Product SKU: MCK-TA314-4.5X4.5-QC8-32D
- NSID: 31919
-
MCK-TA314-4.5X4.5-QC8-32D
McKinney Products Company designs and manufactures high quality architectural hinges for commercial use. With roots in Cincinnati OH, McKinney manufactured in the heart of the Pennsylvania steel industry for many years. The McKinney TA314 is recommended for standard weight, medium frequency doors, or doors with closing devices.
More Information Below
Specifications
| Product |
Full Mortise Hinge |
| Material | Metal, Brass |
| Gauge | .134 |
| No. of holes | 8 |
| Fasteners | Machine 1/2 x 12-24, Wood 11/4 x 12 |
| Finish | Stainless Steel |
| Dimensions | 41/2" x 41/2"in. (114.3 x 114.3mm) |
| ElectroLynx Connector | 8 Wires |
| Certifications | ANSI/BHMA Standard 156.1 |
