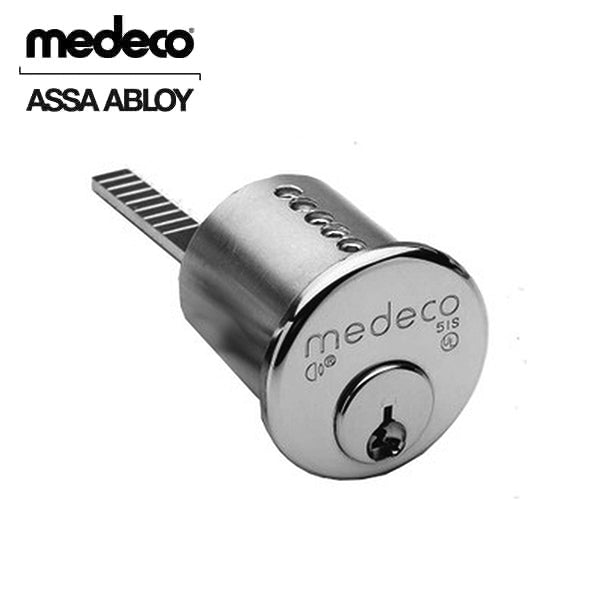

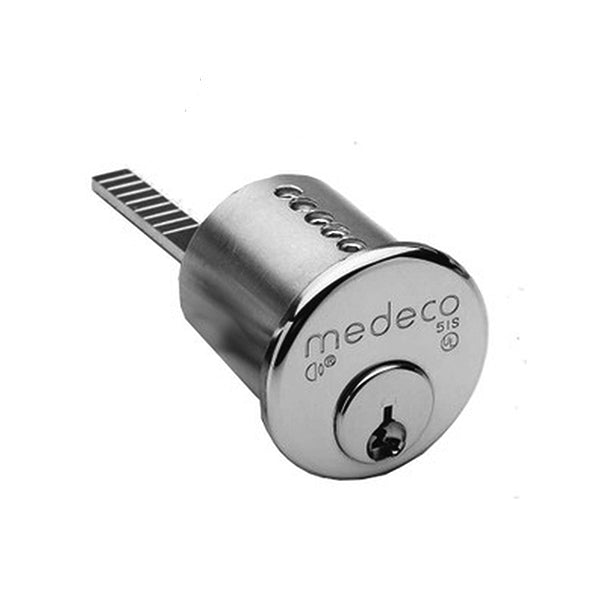

Medeco - 100400HT - M3 Biaxial - 6-Pin - 1-1/8" Rim Cylinder Y02 Horizontal Tailpiece - - DL Keyway Pinned - 26 - Satin Chrome - Grade 1

Medeco - 100400HT - M3 Biaxial - 6-Pin - 1-1/8" Rim Cylinder Y02 Horizontal Tailpiece - - DL Keyway Pinned - 26 - Satin Chrome - Grade 1

Available to order
SKU 100400HT-26-DLT-Y02 NSID 21416
$133.69$160.43On Sale You save $26.74 (17%)
Please Note: This product ships within 7 Days


Medeco M3 Rim cylinders are used with auxiliary rim locks such as: surface mounted deadbolts, night latches, panic devices and jimmyproof locks (also know as vertical dropbolts or interlocking deadbolts). Rim cylinders are held in place with a back plate and two mounting screws.

Features

  • CT-Y02 Horizontal Tailpiece
  • UL listed
  • Grade 1 Certification
  • BHMA A156.30 Level A Certification
  • Can be incorporated into existing master key system
  • Protect against drill, wrenching, bumping and prying attacks
  • Solid Brass Construction
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications
Cylinder Type Rim Cylinder
Cylinder Length 1-1/2"
Tailpiece CT-Y02 Horizontal Tailpiece
Number of Pins 6
Keyway DL
Keying Keyed Different
Number of Keys 2
Finish US26D - Satin Chrome
