Medeco

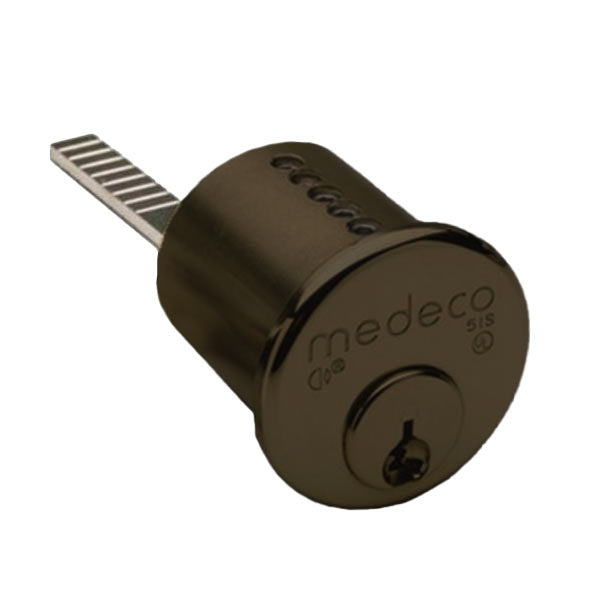

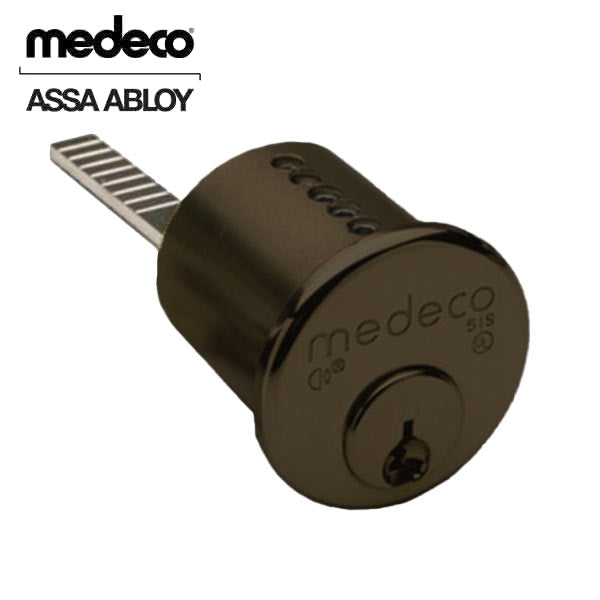

Medeco - 100400HT - M3 Biaxial - 6-Pin - 1-1/8" Rim Cylinder Y02 Horizontal Tailpiece - DL Keyway Pinned - 24 - Dark Bronze - Grade 1

Medeco - 100400HT - M3 Biaxial - 6-Pin - 1-1/8" Rim Cylinder Y02 Horizontal Tailpiece - DL Keyway Pinned - 24 - Dark Bronze - Grade 1

In stock
SKU 100400HT-24-DLT-Y02 NSID 248
$120.39$137.59On Sale You save $17.20 (13%)
Get it shipped Today! Order within:

Medeco M3 Rim cylinders are used with auxiliary rim locks such as: surface mounted deadbolts, night latches, panic devices and jimmyproof locks (also know as vertical dropbolts or interlocking deadbolts). Rim cylinders are held in place with a back plate and two mounting screws.

Features

  • CT-Y02 Horizontal Tailpiece
  • UL listed
  • Grade 1 Certification
  • BHMA A156.30 Level A Certification
  • Can be incorporated into existing master key system
  • Protect against drill, wrenching, bumping and prying attacks
  • Solid Brass Construction
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications
Cylinder Type Rim Cylinder
Cylinder Length 1-1/8"
Tailpiece CT-Y02 Horizontal Tailpiece
Number of Pins 6
Keyway DL
Keying Keyed Different
Number of Keys 2
Finish 624/US20A/US20D - Dark Oxidized Statuary Bronze Clear Coated

Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Medeco directly at 800-839-3157 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
