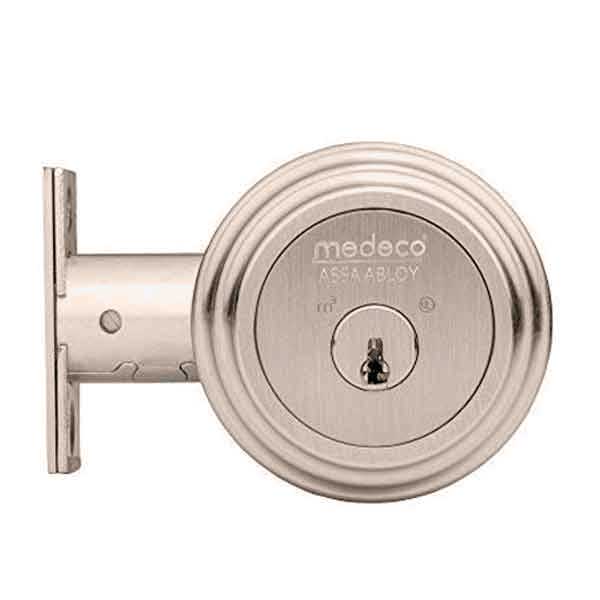

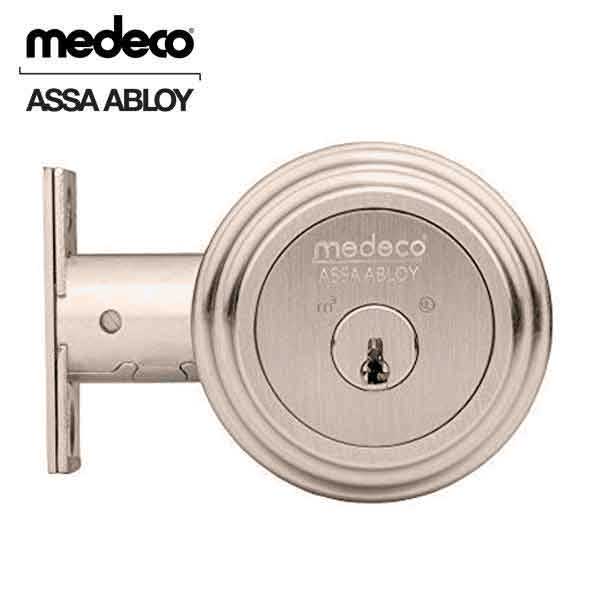

Medeco - 11JR623 - Maxum Residential - M3 BiLevel - 6-Pin - Double Deadbolt - 2-3/8" - DL Keyway Pinned - 19 - Satin Nickel - Grade 1
- Product SKU: 11JR623-19
- NSID: 6059
-
11JR623-19
The Maxum M3 Residential Double Cylinder Deadbolt is a UL437 Listed, BHMA A156.5 Grade 1 Certified deadbolt, offering unmatched protection against unauthorized key duplication, bumping attacks, picking, drilling, wrenching, kicking, or other physical abuse. A solid 1'' hardened steel bolt in heavy gauge steel housing provides maximum defense against physical attack. With patented key control you will have complete control over your locks. A unique authorization card is issued with each key combination, and is required to order additional keys in the future.
Features:
- Patented Key Control
- Medeco M3 Cylinder
- Function Double Cylinder - Keyed inside & outside.
- Tamper Resistance Solid brass collar spins under pressure to prevent wrench attacks.
- Steel shroud over bolt protects against ice pick type attacks.
- Strike High-security strike plate.
- Bolt Hardened steel bolt and bolt throwing mechanism.
- Certifications Grade 1 UL listed.
Specifications:
| Function: | Double Cylinder |
| Construction: | Hardened Steel |
| Backset: | 2-3/8" |
| Faceplate: | 1" |
| Cylinder: | Medeco M3 |
| Pins: | 6-Pin Restricted |
| Keys: | 2 Keys Included |
| Keyway: | DLT |
| Door Thickness: | 1-3/8" - 2-1/2" |
| Cross Bore: | 2-1/8" |
| Edge Bore: | 1" |
| Strike: | High Security Strike Plate |
| Bolt: | 1" |
| Finish: | 19 Satin Nickel |
| Certifications: | UL437 Listed, BHMA A156.5 Grade 1 Certified |
Downloads:
