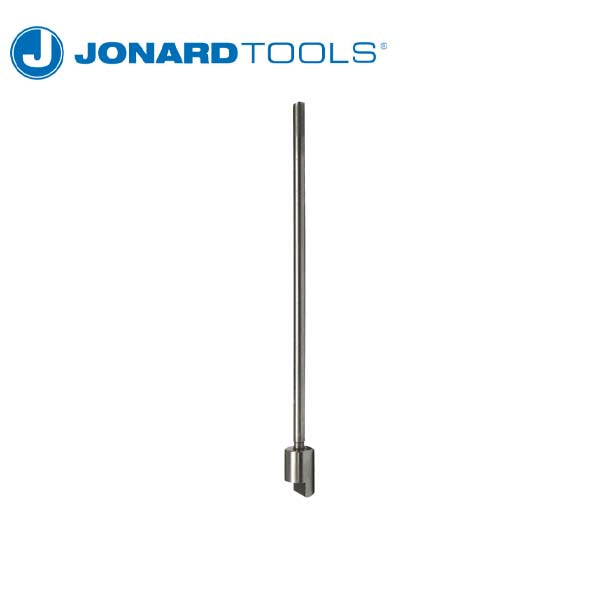

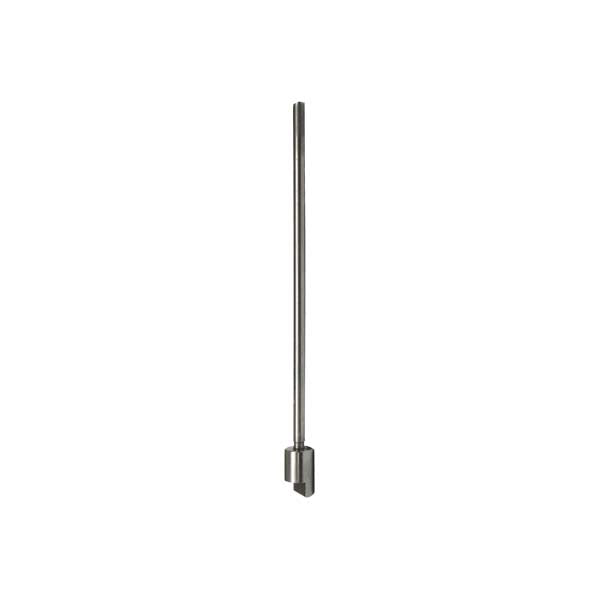

*Discontinued* Modified Wire Wrapping Bit - 26 AWG - 0.040" Diameter

*Discontinued* Modified Wire Wrapping Bit - 26 AWG - 0.040" Diameter

Discontinued
SKU JND-WB26SM NSID 45378
$74.95

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

  • Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
  • Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins

    • Compatible Wrap Sleeve Part #: P26LN

      View full details

      Details

      Specifications


        Sleeve Part No.

        P26LN (sold separately)
        Wrap Function

        Wrap
        Wrap Type

        Modified
        Wire Gauge

        26 AWG (0.40 mm)
        Maximum Insulation Diameter

        0.031" (0.79 mm)
        Minimum Terminal Diagonal

        0.023" (0.58 mm)
        Maximum Terminal Diagonal

        0.038" (0.96 mm)
        Terminal Hole Depth

        0.75" (19.05 mm)
        Effective Radius

        0.075" (1.9 mm)
        Terminal Hole Diameter

        0.040" (1.02 mm)
        Wrap Post Size

        0.025" (0.63 mm)
        Dimensions 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm)
        Weight 0.01 lb (3.632 g)
        UPC # 811490013056
