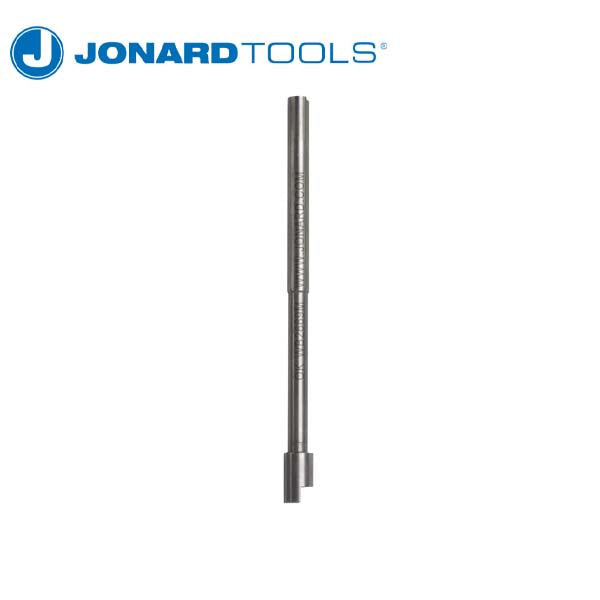

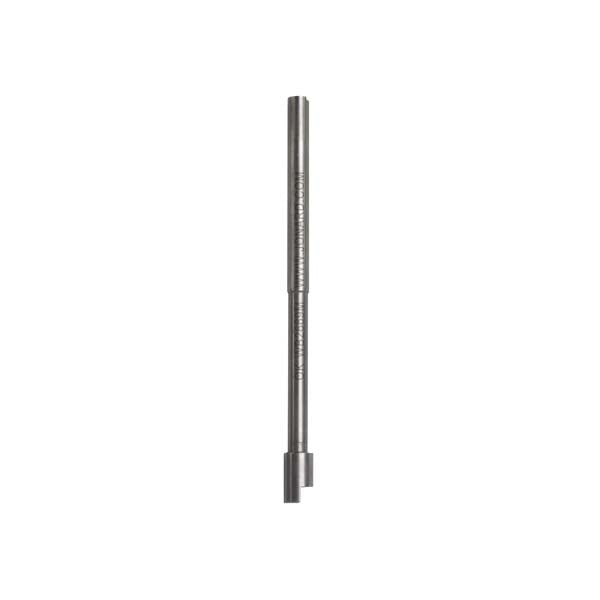

    Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

  • Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
  • Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins
  • Compatible Wrap Sleeve Part #: P2224 and P2426INS


    $63.95
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications


    Sleeve Part No.

    P2224 and P2426INS (sold separately)

    Wrap Function

    Wrap

    Wrap Type

    Modified

    Wire Gauge

    26 AWG (0.40 mm)

    Maximum Insulation Diameter

    0.041" (1.04 mm)

    Minimum Terminal Diagonal

    0.053" (1.34 mm)

    Maximum Terminal Diagonal

    0.069" (1.75 mm)

    Terminal Hole Depth

    1" (25.4 mm)

    Terminal Hole Diameter

    0.069" (1.75 mm)

    Effective Radius

    0.109" (2.77 mm)

    Wrap Post Size

    0.045" (1.14 mm)

    Dimensions 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm)
    Weight 0.02 lb (7.264 g)
    UPC # 811490013544
