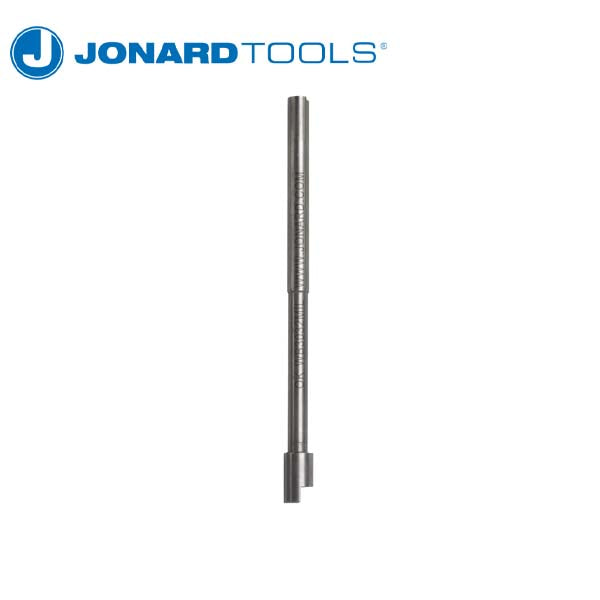

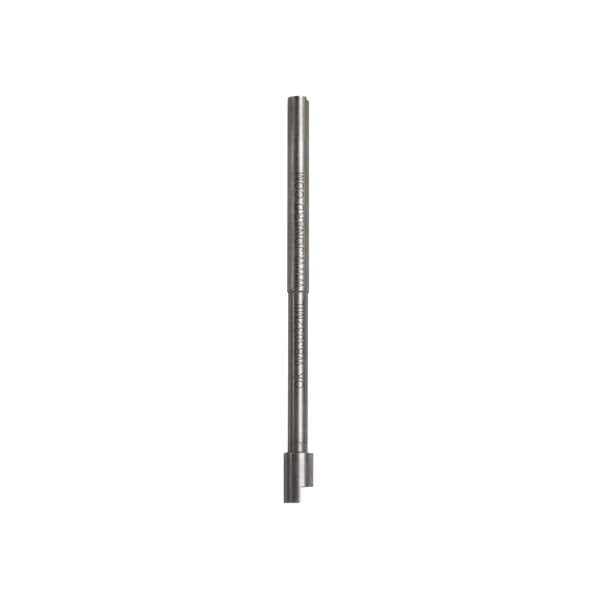

*Discontinued* Modified Wire Wrapping Bit - 30-32 AWG

*Discontinued* Modified Wire Wrapping Bit - 30-32 AWG

Discontinued
SKU JND-WB3032MIL NSID 45381
$66.95

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 30 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

  • Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
  • Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins
View full details

Details

Compatible Wrap Sleeve Part #: P3032 and P3032INS

    Specifications



        Sleeve Part No.

        P3032 and P3032INS (sold separately)
        Wrap Function

        Wrap
        Wrap Type

        Modified
        Wire Gauge

        30-32 AWG (0.25 mm-0.20 mm)
        Maximum Insulation Diameter

        0.027" (0.69 mm)
        Minimum Terminal Diagonal

        0.034" (0.86 mm)
        Maximum Terminal Diagonal

        0.038" (0.96 mm)
        Terminal Hole Depth

        0.75" (19.05 mm)
        Terminal Hole Diameter

        0.040" (1.02 mm)
        Effective Radius

        0.064" (1.62 mm)
        Wrap Post Size

        0.025" (0.63 mm)
        Dimensions 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm)
        Weight 0.01 lb (3.632 g)
        UPC # 811490013452
