$13.45 $17.99
Available: Out of Stock
Wishlist
  • Product SKU: KNS311-R
  • KNS311-R

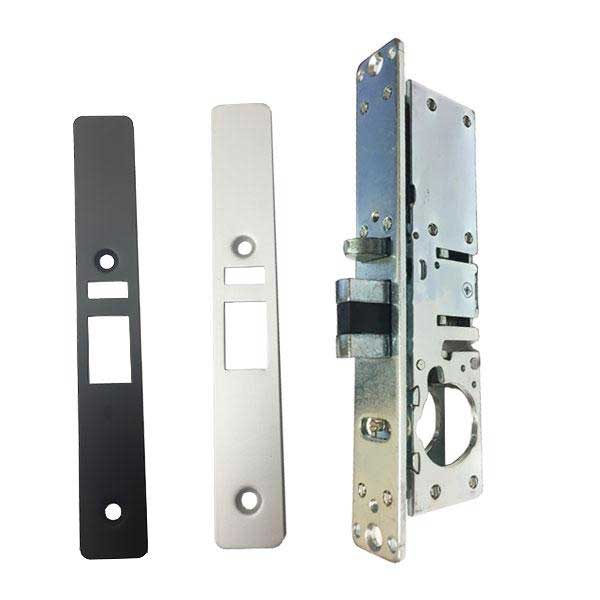

    The Premium Narrow-Stile Latch Lock Body  offers flexibility of traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise Cylinder


    $13.45

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Backset  31/32" [24.6 mm]
Handing RH - Right Handed Applications
Case Zinc Plated Steel lock body
Case Dimensions:   7/8" width x 6" Length
Cylinder:  Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included)
Latchbolt

Latch 13mm chrome plated with delrin insert for quiet latching

1/2" width x 1.0" length x 1/2" Throw

Auxiliary Linchpin Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.

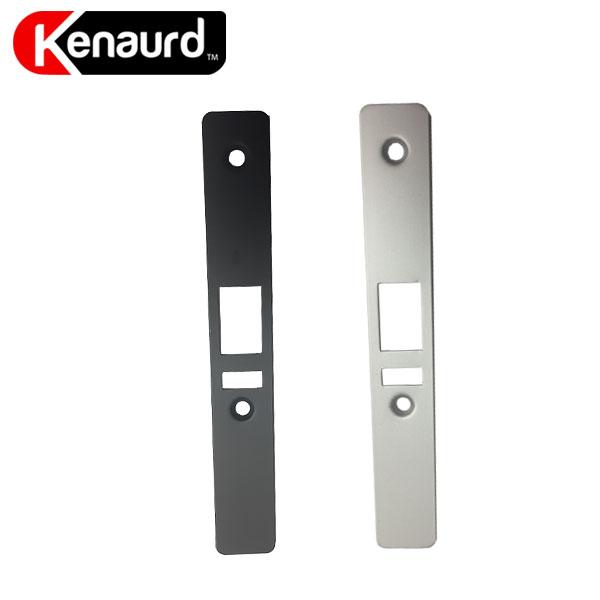

Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Strike Standard strike furnished for flat jamb where door closes flush or nearly flush.
Standard Package

Individually boxed with strike plate, 2 faceplates, and mounting screws.

Available in 25 Count Carton / Box

Cylinders, paddles, handles available separately.

KNS311-R

The Premium Narrow-Stile Latch Lock Body  offers flexibility of traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise Cylinder


Backset  31/32" [24.6 mm]
Handing RH - Right Handed Applications
Case Zinc Plated Steel lock body
Case Dimensions:   7/8" width x 6" Length
Cylinder:  Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included)
Latchbolt

Latch 13mm chrome plated with delrin insert for quiet latching

1/2" width x 1.0" length x 1/2" Throw

Auxiliary Linchpin Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Strike Standard strike furnished for flat jamb where door closes flush or nearly flush.
Standard Package

Individually boxed with strike plate, 2 faceplates, and mounting screws.

Available in 25 Count Carton / Box

Cylinders, paddles, handles available separately.

Compatible With
