Nissan 16 & 32G Bypass Cable with CGW Adapter (XTool)
In Stock
SKU:
XTL-NIS-BPC
NSID:
27710
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $38.49
-
$41.99 - $38.49
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

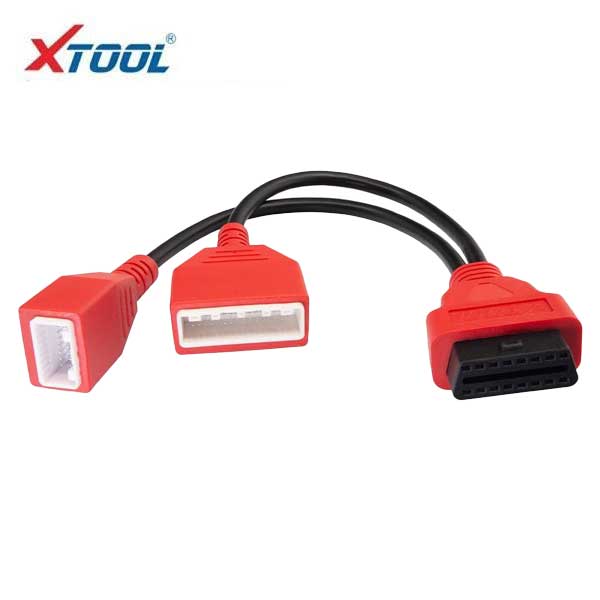

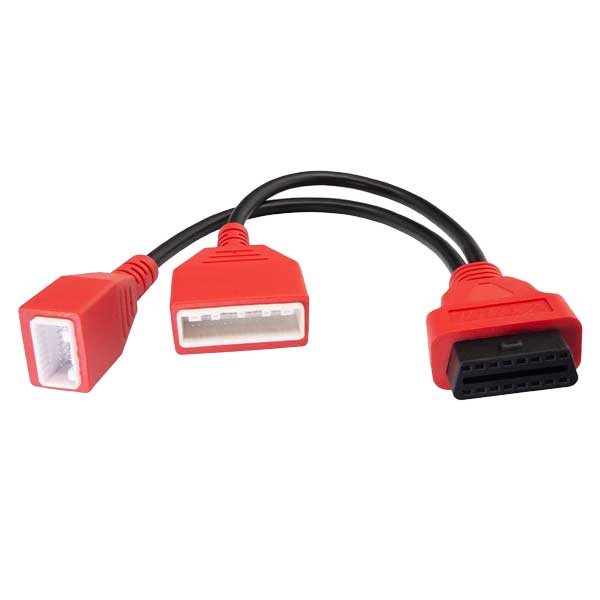

The 2020+ Nissan Sentra 16 & 32G Bypass Cable by XTool is designed to interface almost all automotive transponder programmers that have the capability of programming 2020+ Nissan Sentra vehicles. It functions by intercepting your programmer’s CAN high and low signals and passing them through the 16+32 connectors bypassing the security gateway module of the vehicle. This allows access to all modules on the CAN network for diagnostics / bi-directional controls /programming.
Features:
- Compatible with Nissan Sentra 2020 and newer models
- Compatible with Autel MaxiSYS diagnostic and MaxiIM IMMO tablets
- Enables Read/Erase of all available system modules
- Enables bi-directional active tests and maintenance tasks
- Supports add key for IM tools, IMMO part replacement, IMMO status scan
- OE-style connection for secure connection with no back probe necessary
- Enables viewing and graphing of Live Data
How to Use:
- Plug the main cable of your programmer of choice into the female OBD port of the adapter.
- Locate the security gateway module on the vehicle. Located under the drivers dash.
- Locate and unplug the connectors currently plugged into the module. Plug in the 16+32 connectors directly into the module.
- Use your programmer of choice to select by vehicle or system type and program like normal.
Compatible with the following:
- 2020 - 2022 Nissan Sentra
