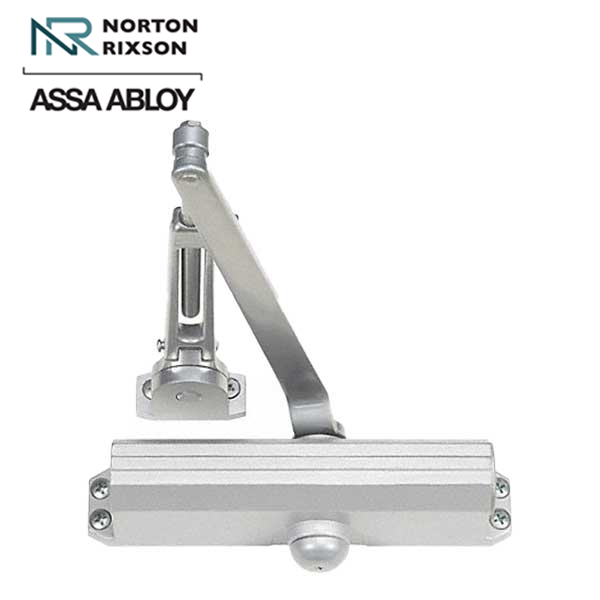

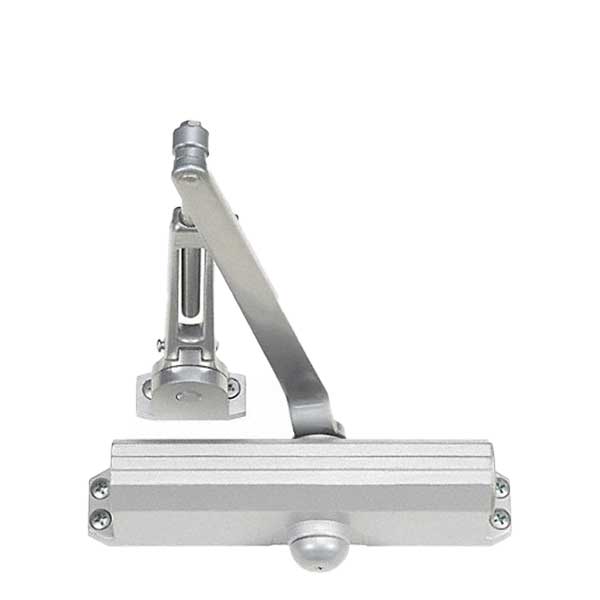

Norton - 1601H - Tri-Packed Manual Commercial Door Closer - PA Bracket/Regular/Top Jamb - Hold Open - Adjustable Arm - Size 3-6 - Satin Aluminum - Fire Rated - Grade 1
In Stock
SKU:
NOR-1601H-689
NSID:
18707
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $136.30
-
$170.38 - $136.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1600 Series Door Closers offer proven quality, performance, and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1 commercial door closers are designed for exterior or interior doors. A full complement of regular and heavy-duty arms, brackets, and options make the 1600 series ideal for virtually any medium-traffic, commercial application. The Hold Open Function allows the arm to hold the door in any one position instead of being pushed manually, perfect for school applications!
Features:
- Exceeds 25 million cycles
- Non-handed
- Hold Open Function
- Rack-and-pinion design
- Cast aluminum closer body
- Can swing door 140 degrees from closed position
- Staked valves
- Adjustable spring sizes 1-6
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Manual Door Closer |
| Closer Type: | Hold Open Function |
| Handing: | Non-Handed |
| Ligature Resistant: | No |
| Closer Mounting Style: | Parallel, Regular, Top Frame |
| Finish: | Aluminum |
| Arm Type: | Adjustable Sizes 3 to 6, Standard |
| Door Width: | 36 in |
| Housing Height: | 2-5/8 in |
| Housing Length: | 9 3/4 in |
| Max. Door Opening: | 140 Degrees |
| Piston Diameter: | 1 3/8 in |
| Projection from Wall: | 2 7/8 in |
| Pinion Journals Diameter: | 5/8 in |
| Fire Rating: | 3 hrs. |
| Certifications: | ANSI A156.4 Grade 2, UL and cUL Listed |
