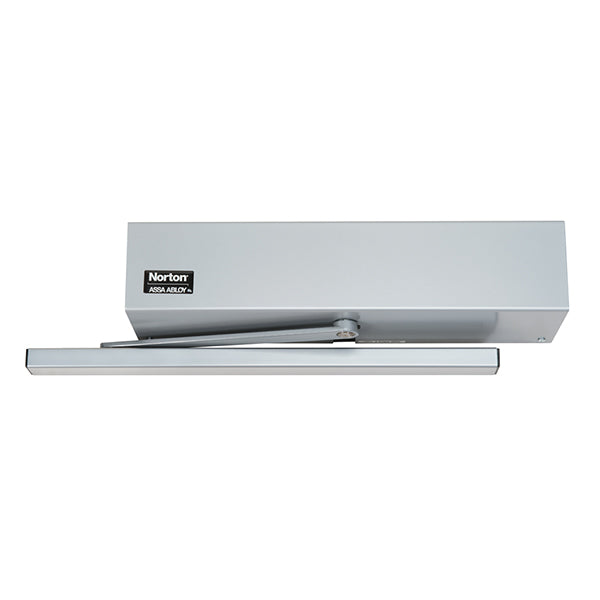

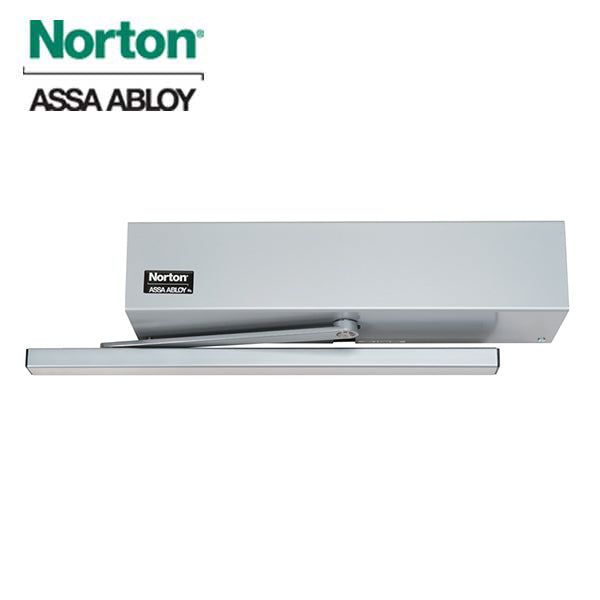

*Discontinued* Norton - 5610 - Low-Energy Pull Side Door Operator - Rigid Arm (Track) - Interior Doors - Satin Aluminum
Out of Stock
SKU:
NOR-5610-689-delete
NSID:
- $1,311.80
-
$1,426.80 - $1,311.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 5600 Series provides a straightforward solution for interior, non-fire rated doors that need to be automated to offer ADA-compliant accessibility. Affordable functionality, consistent and dependable, and Ideal for retrofit applications: easy installation and optional AC power cord effortlessly converts openings for barrier free accessibility.
Features:
- Pull side mounting
- 95 Degree Swing (Trim Permitting)
- Non-handed
- Quiet operation
- Electrically controlled backcheck, sweep and latch
- Activation options: wall switches, radio frequency devices
- Ease of installation and set-up
- On/Off Switch
- Hold open options: 0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)
- Door closer mode for manual usage
- Electronic motor dampening - provides feel of normal, manual door closer
- Electric hardware and access control interface
- $1,311.80
-
$1,426.80 - $1,311.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Electronic Door Closer |
| Handing: | Non-Handed |
| Power Input: | 120 VAC, 60Hz |
| Power Supply: | 24 VDC (1.1A) |
| Finish: | 689 - Aluminum |
| Maximum Door Weight: | 150lbs |
| Door Width: | 32 - 36 in |
| Mounting Style: | Top Jamb |
| Max. Door Opening: | 95 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Certifications: | ETL certified; conforms to ANSI/UL standard 325 for automatic closing doors |
| Warranty: | 1-Year Limited Warranty |
Downloads:
