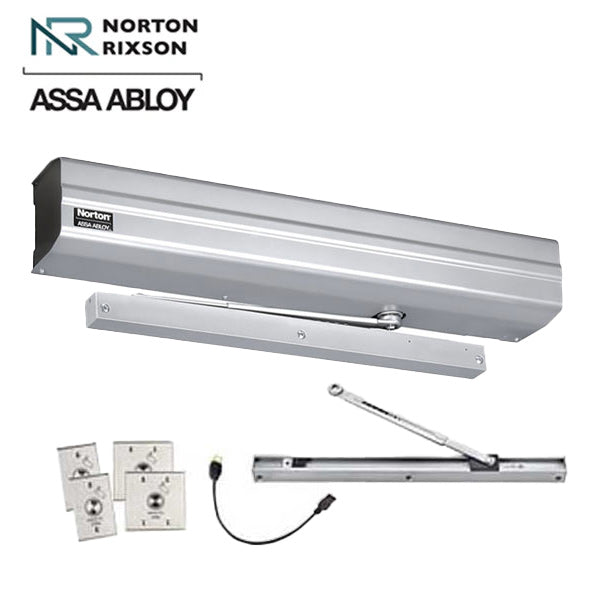

Norton - 5740K3 - Universal Low Energy Door Operator - Push & Pull Side - Slide Track & Double Lever Arm - Aluminum

The 5700 series operator comprises three components making it an easy solution for medium traffic doors that need basic operator functionality. While simple to install and use, this operator consists of a 1600 series door closer with a proven history of dependability. This unit installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton's 1601 closer body. Quiet and dependable, the 5700 meets the requirements of the Americans with Disability Act (A.D.A.) and ANSI/BHMA A156.4. This Kit contains Push & Pull Arms, Power Cord, Receiver, (2) Push Buttons and (2) Transmitters.

Features

• 2 Push Buttons, 2 Transmitters
• Application versatility and ease of adjustment; push and pull side mounting units included
• Operates as mechanical surface closer during close cycles, when door is opened manually or if power is turned off; quiet operation
• Spring force provides the feel of a normal manual door closer; door can be opened manually if desired.

• Unit Activation Options: wall switches, motion sensor, radio frequency device

• End-User On/Off Switch

• Hold Open options; 0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)

• Obstruction Detection: motor stops if door is obstructed during an opening; door closes under manual spring force (not to exceed 15lbs)

• "Push and Close"; allows the operator to skip the hold open time when it is not necessary or required

• Adjustable door sensitivity

• Overload Safety Shut-Off - after two minutes of receiving a door activation signal, the inverter will time out and close the door; prevents motor/inverter damage

• Motor Start Delay for Locking Hardware - 0-5 second delay to allow locking hardware to release first
