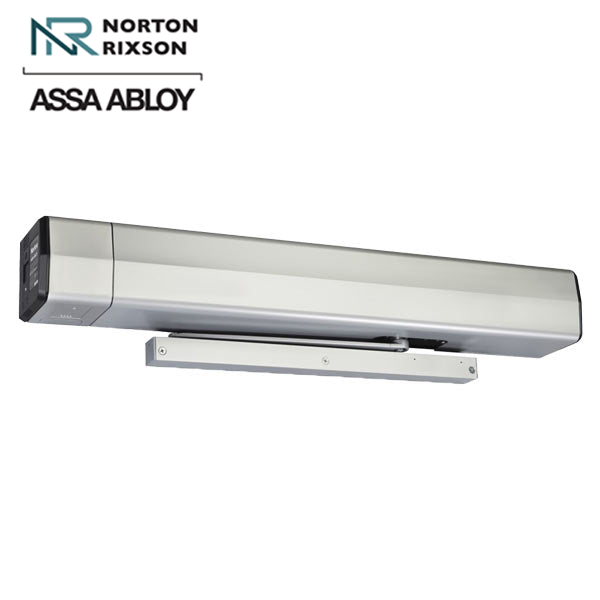

Norton - 6011 - Low Energy Door Operator - Pull Side - Rigid Arm & Slide Track - Aluminum

The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit’s high level of versatility allows for seamless integration with a multitude of facilities and systems.

Features

• Adjustable Hold Open - Amount of time a door will stay in the full open position after an activation
• Blow open for smoke ventilation - Door opens when signal is received from alarm system allowing air or smoke to flow through opening. Door will stay open until signal from alarm system is stopped
• Infinite Hold Open - Door will hold open at set position until power is turned off
• Obstruction Detection - Open: door closes if it hits an obstruction while opening. Close: door reopens (once) if it hits an obstruction while closing. If it hits the obstruction again, the door will rest against the obstruction until it is removed
• Open Delay - Delays operator opening for locking hardware
• Overload Safety Shut-Off - After 3 minutes of receiving a door activation signal, inverter times out and door closes - Prevents motor/inverter damage
• Presence Detector Input - Input for external sensor to detect presence at door open or close position only
• Push & Go - As the door is manually opened, the operator "senses" movement and opens door to the full-open position
• Selector mode switch - Off: Disables signal inputs unless Blow Open is activated. On: Activates signal inputs. Hold Open: Activates the unit (unless blow closed is activated on 6300) to the hold open position
• Two Selectable Output relay - Multi-function relay outputs
• Vestibule Delay - When the push button is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable
• ANSI/BHMA A156.19 certified & ADA Compliant
