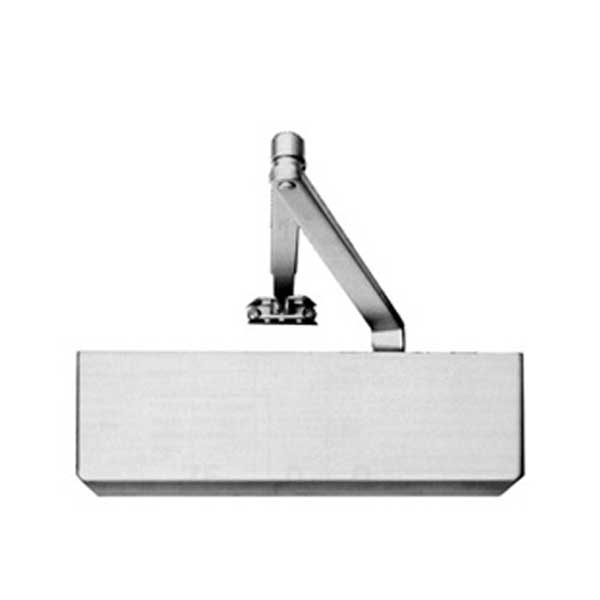

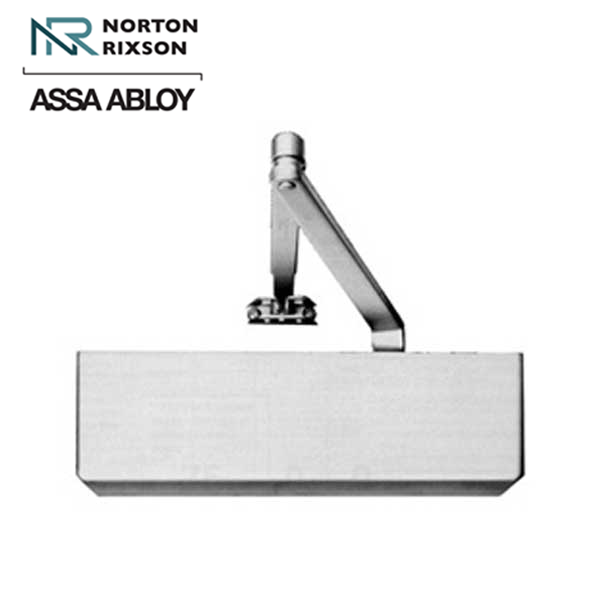

Norton - 7500 - Packed Manual Commercial Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Hold Open - Adjustable Arm - Adjustable Sizes 1-6 - Plastic Cover - Satin Aluminum - Fire Rated - Grade 1
Available to Order
SKU:
NOR-7500H-689
NSID:
37966
- $272.00
-
$326.40 - $272.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
NOR-7500-689
The Norton 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as; government, healthcare, or educational institutions.
Features:
- Adjustable spring sizes 1 through 6 (ADA Compliant)
- Tri-Style® packaging for regular, top jamb or parallel arm mounting
- Exceeds 25 million cycles
- Non-handed
- Rack-and-pinion design
- Cast aluminum body
- Backcheck positioning valve
- Molded plastic cover
- All standard arm applications allow doors to swing 180°, conditions permitting
- Self-drilling screws
- Slide Tracks: push or pull side mounting
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Manual Door Operator |
| Closer Type: | Hold Open |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Finish: | 689 - Aluminum |
| Door Width: | 36 - 48" |
| Diameter Piston: | 1-1/2" |
| Diameter Pinion Journals: | 5/8" |
| Projection from Wall: | 2-3/16" |
| Mounting Style: |
Parallel, Regular, Top Jamb |
| Arm Type: | Adjustable Sizes 1 to 6, Standard |
| Max. Door Opening: | 180 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL10c 90-minute positive pressure fire rating |
| Certifications: | ANSI/BHMA A156.19 certified Grade 1 |
| Warranty: | 30-Year Limited Manufacturer Warranty |
