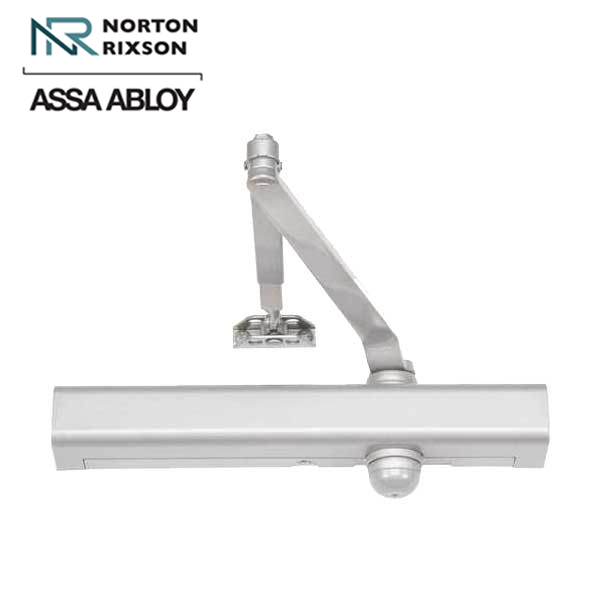

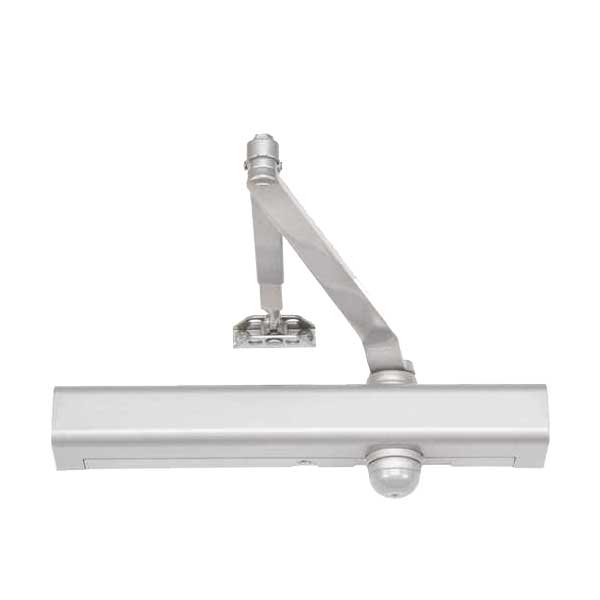

Norton - 8301 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Available to Order
SKU:
NOR-8301-689
NSID:
18703
- $177.94
-
$179.94 - $177.94
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Norton 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. This closer can meet virtually any application challenge.
Features:
- Exceeds 25 million cycles
- Non-handed
- Staked valves
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Cast aluminum body
- Rack and pinion design
- All standard arm applications allow doors to swing 180°, conditions permitting
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Manual Door Operator |
| Closer Type: | Non-Hold |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Finish: | 689 - Aluminum |
| Door Width: | 36 - 48" |
| Diameter Piston: | 1-1/4" |
| Diameter Pinion Journals: | 5/8" |
| Projection from Wall: | 2-1/8" |
| Mounting Style: |
Parallel, Regular, Top Jamb |
| Arm Type: | Adjustable Sizes 1 to 6, Standard |
| Fasteners: | Sleeve Nut / Sex Nut |
| Max. Door Opening: | 180 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL10c 90-minute positive pressure fire rating |
| Certifications: | ANSI/BHMA A156.19 certified Grade 1 |
| Warranty: | 30-Year Limited Manufacturer Warranty |
Downloads:
