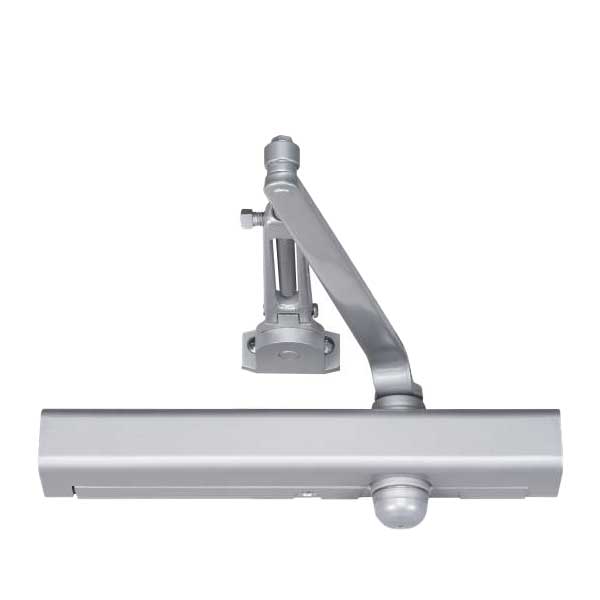

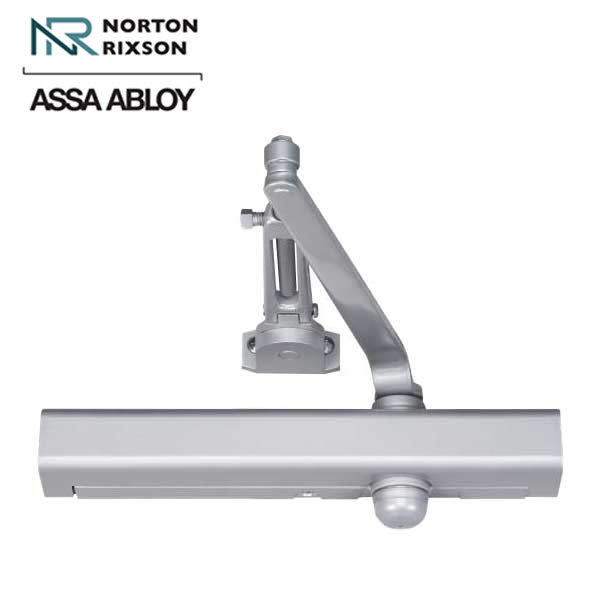

Norton - 8301H - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8301H - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8301H - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8301H - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8301H - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1

Norton - 8301H - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1

$126.00 $150.00
Availability: Out of Stock
Wishlist
  • Product SKU: NOR-8301-689-SN-H
  • NSID: 18713
  • NOR-8301-689-SN-H

    The Norton 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

    Features:

    • Exceeds 25 million cycles
    • Non-handed
    • Staked valves
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Cast aluminum body
    • Rack and pinion design
    • All standard arm applications allow doors to swing 180°, conditions permitting



    $126.00

            Specifications:

            Construction: Heavy-Duty cast-aluminum body
            Function: Hydraulic Manual Door Operator
            Closer Type: Hold Open
            Interior or Exterior: Universal
            Handing: Non-Handed
            Finish:  689 - Aluminum
            Door Width: 36 - 48"
            Diameter Piston: 1-1/4"
            Diameter Pinion Journals: 5/8"
            Projection from Wall: 2-1/8"
            Mounting Style:
            Parallel, Regular, Top Jamb
            Arm Type: Adjustable Sizes 1 to 6, Standard
            Fasteners: Sleeve Nut / Sex Nut
            Max. Door Opening: 180 Degrees
            ADA: Meets requirements for Americans with Disabilities Act (ADA)
            Fire Rating: UL10c 90-minute positive pressure fire rating
            Certifications: ANSI/BHMA A156.19 certified Grade 1
            Warranty: 30-Year Limited Manufacturer Warranty


            Downloads:

            NOR-8301-689-SN-H

            The Norton 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

            Features:

            • Exceeds 25 million cycles
            • Non-handed
            • Staked valves
            • Standard, separate and independent, latch, sweep and backcheck intensity valves
            • Cast aluminum body
            • Rack and pinion design
            • All standard arm applications allow doors to swing 180°, conditions permitting


                      Specifications:

                      Construction: Heavy-Duty cast-aluminum body
                      Function: Hydraulic Manual Door Operator
                      Closer Type: Hold Open
                      Interior or Exterior: Universal
                      Handing: Non-Handed
                      Finish:  689 - Aluminum
                      Door Width: 36 - 48"
                      Diameter Piston: 1-1/4"
                      Diameter Pinion Journals: 5/8"
                      Projection from Wall: 2-1/8"
                      Mounting Style:
                      Parallel, Regular, Top Jamb
                      Arm Type: Adjustable Sizes 1 to 6, Standard
                      Fasteners: Sleeve Nut / Sex Nut
                      Max. Door Opening: 180 Degrees
                      ADA: Meets requirements for Americans with Disabilities Act (ADA)
                      Fire Rating: UL10c 90-minute positive pressure fire rating
                      Certifications: ANSI/BHMA A156.19 certified Grade 1
                      Warranty: 30-Year Limited Manufacturer Warranty


                      Downloads:
