OBDStar - Diag Mate - Marine Diagnostic Tool For Mercury 2000–2024 - 2 Years Of Free Updates
Out of Stock
SKU:
OBS-DIAG-MATE
NSID:
101330
- $399.00
-
$478.80 - $399.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

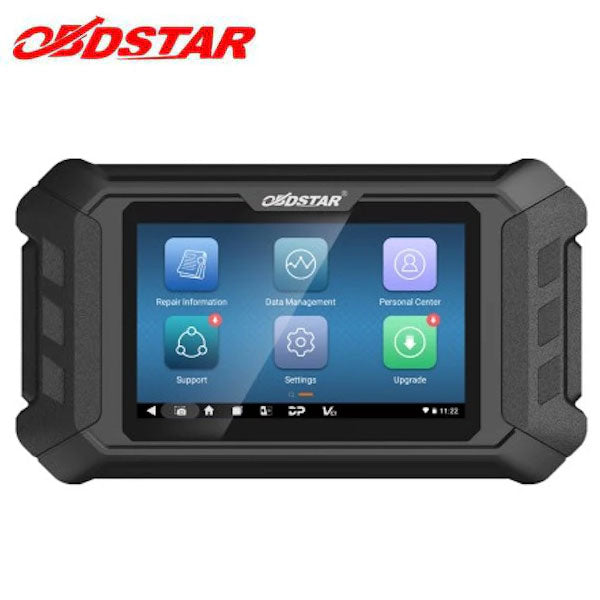

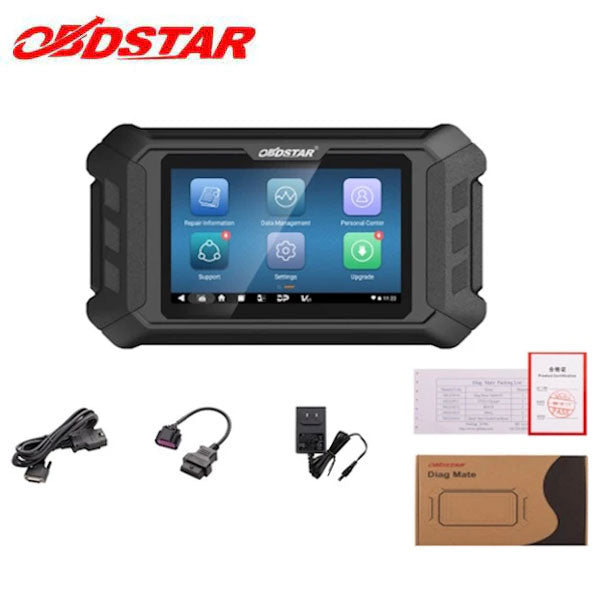

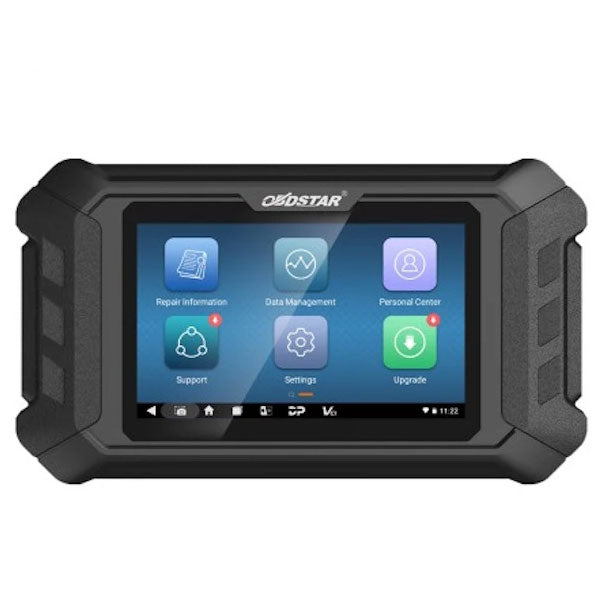

The OBDSTAR Diag Mate Marine Diagnostic Tool is a portable and professional marine diagnostic tablet specially designed for Mercury models from 2000 to 2024.
Featuring an industrial-style design, a 5.0-inch capacitive touchscreen, and a quad-core RK3128 processor, Diag Mate provides a convenient and efficient diagnostic experience for marine technicians and repair professionals.
Please Note: Marine software for other brands cannot be added to this device.
Please Note: The device supports English only and cannot be switched to other languages.
Please Note: 2023 Mercury 300 is not supported yet.
Please Note: Additional cables may be required depending on the Mercury model and diagnostic procedure. Please confirm the required cable before use.
Features:
- New Android 5.1.1 operating system
- Simple and intuitive menu guidance allows you to quickly master the equipment operation;
- Provides complete diagnostic functions, including code reading, code clearing, data flow, action test, setting, coding, etc.
- Menu arbitrary selection is more convenient and quick
- Records and plays back real-time data flow, quickly and accurately locates sensor and component faults.
- Wi-Fi connection to the internet, one-click software upgrade.
- One-click remote function, OBDSTAR technical staff remote assistance.
- Two-year update included for free with purchase.
OBDSTAR Diag Mate Advanced Function:
- The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc. It works with ISCAN to make marine diagnostics more accurate and efficient.
- Various data flow display modes such as text, waveform diagram, and instrument diagram allow you to easily analyze faults.
- Supports device configuration, maintenance notification settings, and other special functions
OBDSTAR Diag Mate Diagnostic Supported Series:
- Supports Mercury models from 2000 to 2024
- The support modules include, but are not limited to, engines (Diesel and Gasoline), joystick, lever, and helm control module, lever configuration, service system, thrust vector control module, and other modules.
- Additional Satellite Receiver
- Audio Satellite Receiver
- Autopilot
- Bow Thruster
- Connected Vessel Device
- Diagnostic Tool
- Electronic Compass
- GPS Receiver
- Generator
- Helm Autopilot Trackpad
- Helm Device Display Gauge
- Helm Mercury NMEA Gateway
- Helm PORT Command Control Module
- Helm PORT Inner Command Control Module
- Helm PORT Inner Legacy System Monitor
- Helm PORT Inner System Monitor
- Helm PORT Inner System Tachometer
- Helm PORT Legacy System Monitor
- Helm PORT System Monitor
- Helm PORT System Tachometer
- Helm STBD Command Control Module
- Helm STBD Inner Command Control Module
- Helm STBD Inner Legacy System Monitor
- Helm STBD Inner System Monitor
- Helm STBD Inner System Tachometer
- Helm STBD Legacy System Monitor
- Helm STBD System Monitor
- Helm STBD System Tachometer
- Helm Smart Multiplexer
- Helm Steering Wheel
- Helm System Speedometer
- Helm Autopilot Trackpad
- Helm Device 1 Display Gauge
- Helm Device Display Gauge
- Helm Mercury NMEA Gateway
- Joystick Module
- NAVMAN Gateway
- PORT Engine
- PORT Inner Engine
- PORT Inner Thrust Vectoring Module
- PORT Inner Transmission Control Module
- PORT Thrust Vectoring Module
- PORT Transmission Control Module
- Remote Joystick Module
- Replicator
- STBD Engine
- STBD Inner Engine
- STBD Inner Thrust Vectoring Module
- STBD Inner Transmission Control Module
- STBD Thrust Vectoring Module
- STBD Transmission Control Module
- Security Device
- Smart Sensor - AirMar
- SmartCraft Authentication Device
- Stern Thruster
- Trackpad
- Vessel Control Module
- VesselView Link
- VesselView Mobile
- Aux Joystick
- Cruise Interface Module
- Helm PORT CCM
- Helm PORT INNER CCM
- Helm PORT Outer CCM
- Helm STBD CCM
- Helm STBD INNER CCM
- Helm STBD Outer CCM
- Helm PORT Inner uX
- Helm PORT uX
- Helm STBD Inner uX
- Helm STBD uX
- PORT INNER SIM
- PORT Inner TCM
- PORT Inner TVM
- PORT Inner uX
- PORT Outer Engine
- PORT SIM
- PORT TCM
- PORT TVM
- PORT uX
- STBD INNER SIM
- STBD Inner TCM
- STBD Inner TVM
- STBD Inner uX
- STBD Outer Engine
- STBD SIM
- STBD TCM
- STBD TVM
- STBD uX
Specifications:
| Operating System | Android 5.1.1 |
| CPU | RK3128 quad-core ARM Cortex A7 |
| Battery | 2600mA, rechargeable lithium polymer battery |
| Extension Memory Card | 32G micro SD (TF) card supported |
| LCD | 5.0 inch |
| LCD resolution | 800*480 |
| Touch Screen | Capacitive touch screen |
| Wifi | Supported |
| Working Temperature | -20℃ to 55℃ (14℉ to 131℉) |
| Storage temperature | -20℃ to 70℃ (-4℉ to 158℉) |
| Weight | About 700g / 1.5 lbs |
| Dimension | 198mm x 115mm x 31mm |
