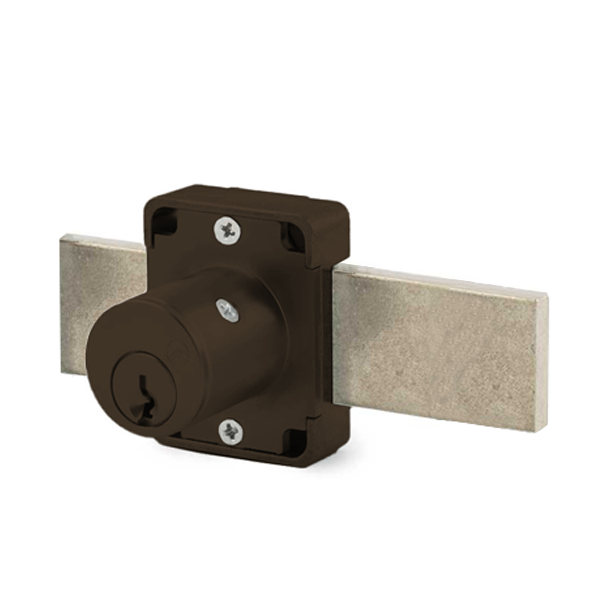

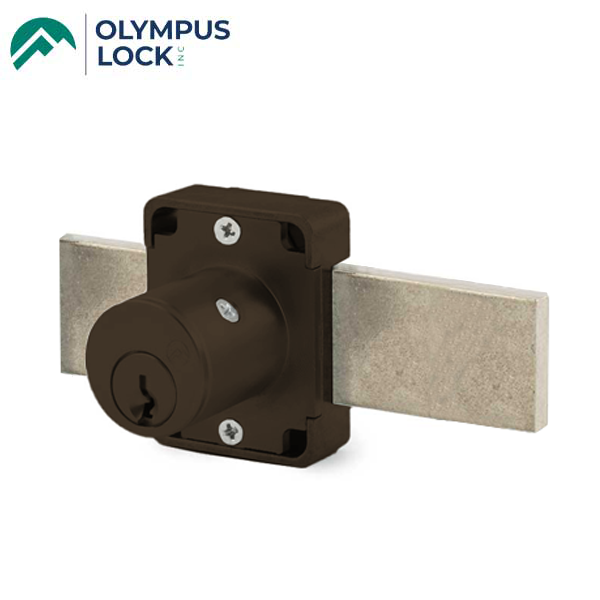

Olympus - 100B - Weather Resistant Cabinet Deadbolt Lock - D4291 4-pin - Long Bolt - Oil Rubbed Bronze - Optional Keying - Grade 1

Available to Order
SKU: OLY-100B10B78LB-101-KA
NSID: 33282 33283 33284 33285 33287 33270 33271 33272 33273 33275

Please Note: This product ships within 2 Days

$57.59
$65.80
$57.59

OLY-100B10BXXXX (Long Bolt)

 D4291 4-pin Keyway Door Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • N Series: (equivalent to National D4291 4-pin system)
  • Weather resistant cabinet deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • (E07121) ANSI/BHMA Grade 1
  • Cylinder length: 15/16"
  • Barrel diameter: 7/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Cylinder Length: 15/16"
Keying: Keyed Alike - 101

Specifications:

Function Deadbolt door lock
Cylinder N Series: (equivalent to National D4291 4-pin system)
Keyed Alike 101, 103, 107, 915
Cylinder Length
15/16" or 1-3/8"
Barrel Diameter 7/8"
Bolt Length Long Bolt extended by 3/4" on both sides
Handing
Non-handed
Function Key removable in locked or unlocked position
Body Zinc Die Cast
Finish Oil Rubbed Bronze
Includes 2 keys, 56-1 bar strike, and lock mounting screws
Certifications Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(500DR) / E07041(600DW).
